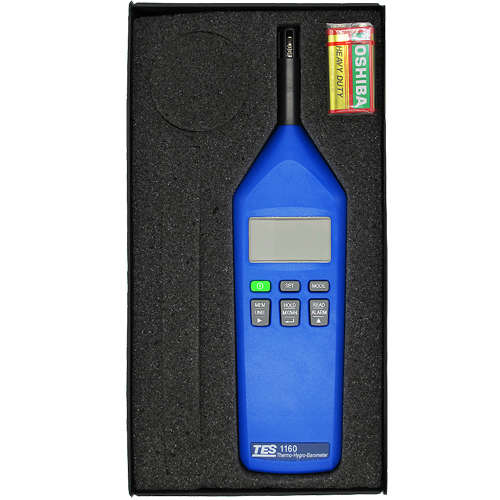

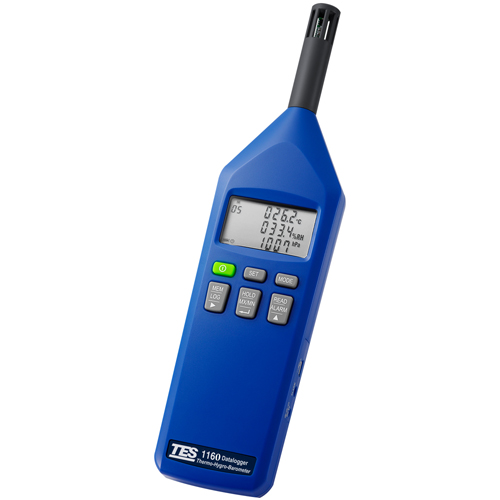

Thermo Hygro Barometic air pressure meter Product ID: TES-1160
Temperature/Humidity/barometric air Pressure Gauge
Inventory: in stock
3 groups of LCD display temperature, relative humidity, and atmospheric pressure
Dew point and wet bulb temperature calculation value reading
Absolute humidity, mixing ratio, and enthalpy calculation value reading
Read the calculated value of water vapor pressure and saturated water vapor pressure
Atmospheric pressure trend (P3h) calculated value reading
Read heat index (Heat Index) and humidity index (Humidex) calculated value
Maximum value, minimum value with stamp of occurrence time
Comparator function
Alarm output function
Auto power off function
Read lock function
Manual data memory and read function
Automatic Data Logging Function (1161)
USB interface (1161)
Specification:
Measurement gear Relative humidity: 0% ~ 100%R.H.
Temperature: -40℃~ +100℃ (-40℉ to +212℉)
Atmospheric pressure: 300 ~ 1200hPa
resolution: 0.1% R.H., 0.1℃, 0.1℉, 0.1hPa
accuracy : Temperature: ±0.4°C (+5°C~ +60°C)
±0.8°C (-20°C~ 5°C and +60°C~ +80°C)
±1.2°C (-40°C~ -20°C and +80°C~ +100°C)
±0.8℉(+41℉~ +140℉)
±1.6℉(-4℉~ 41℉ and +140℉~ +176℉)
±2.4℉(-40℉~ -4℉ and +176℉~ +212℉)
Relative humidity: ±3%RH (25℃, 20 ~ 80% RH)
±4%RH ( 25℃, 10 ~ 20% RH and 80 ~ 90% RH).
±5%RH ( 25℃, 0 ~ 10% RH and 90 ~ 100% RH).
Atmospheric pressure: ±2hPa (25℃), ±4hPa (-20 ~ 85℃)
Reaction time
Relative humidity: t63% < 10s (33 ~ 75% RH)
Temperature: t63% < 10s (15°C ~ 45°C)
sampling rate: 1 time per second
Manual data memory capacity: 99 groups (can be read directly on LCD)
Automatic Data Recording Capacity: microSD CARD 4GB (1161)
Alarm output: Open collector output, input impedance: 490Ω
Maximum Applied Voltage: 24V DC
Maximum drive current: 50mA DC
Operating temperature and humidity
0℃~60℃, less than 95% R.H.
Storage temperature and humidity
-10℃~ 60℃, less than 70% R.H.
power supply : 006P 9V or IEC6F22, NEDA 1604 battery
Battery Life: about 2 months
size: 249×64×26mm
weight: About 178g
appendix: Manual, battery, leather case, CD-ROM software (1161), Micro-USB cable (1161).
optional accessories: AC Converter DC9V (1161)
