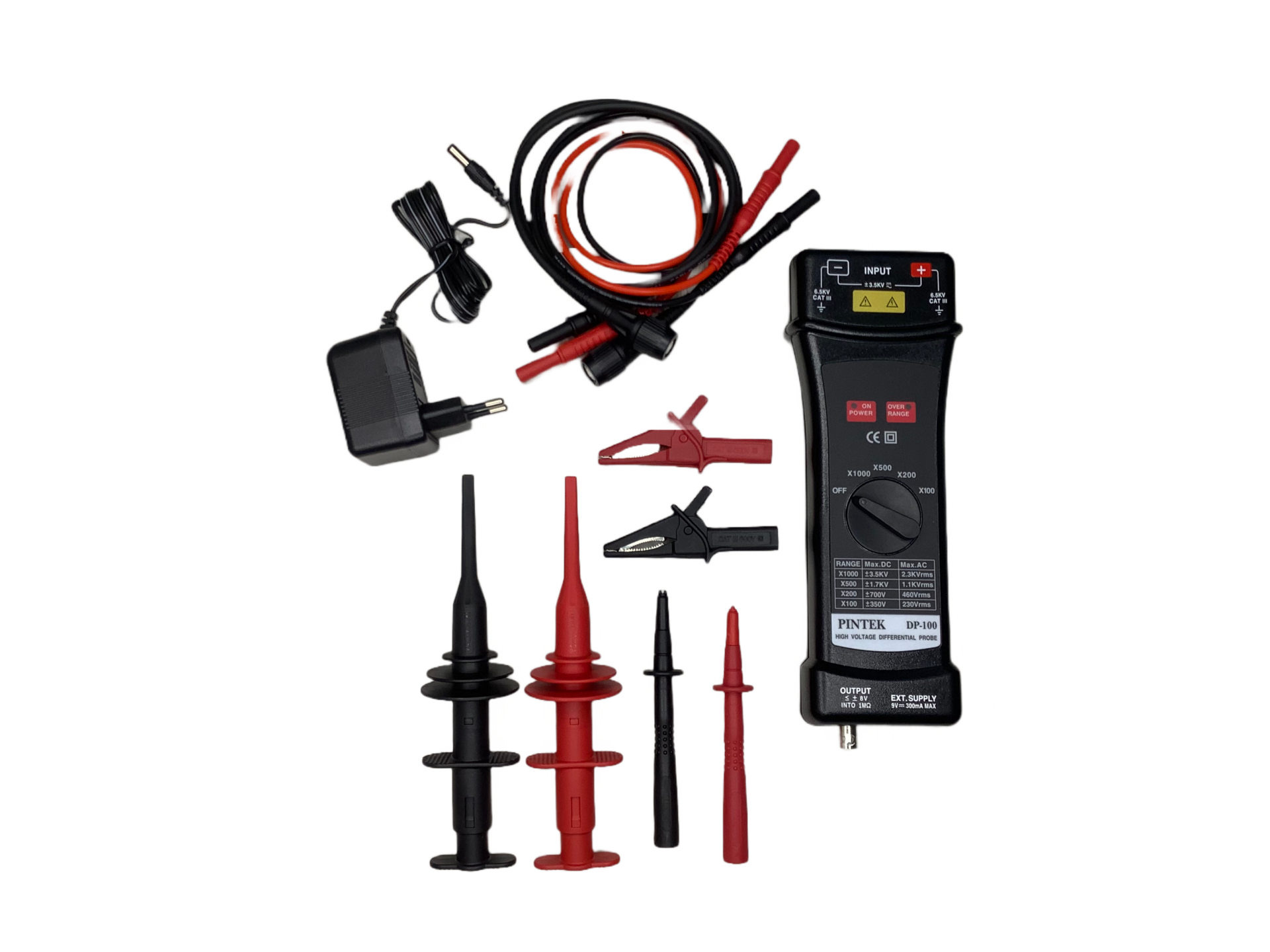

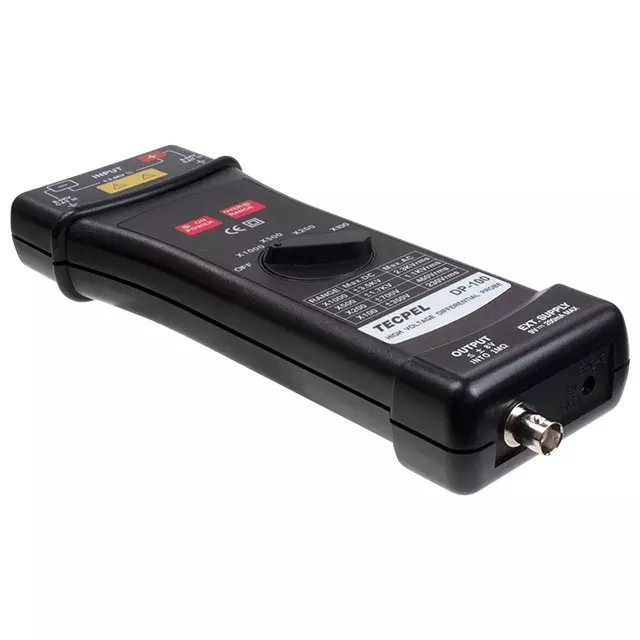

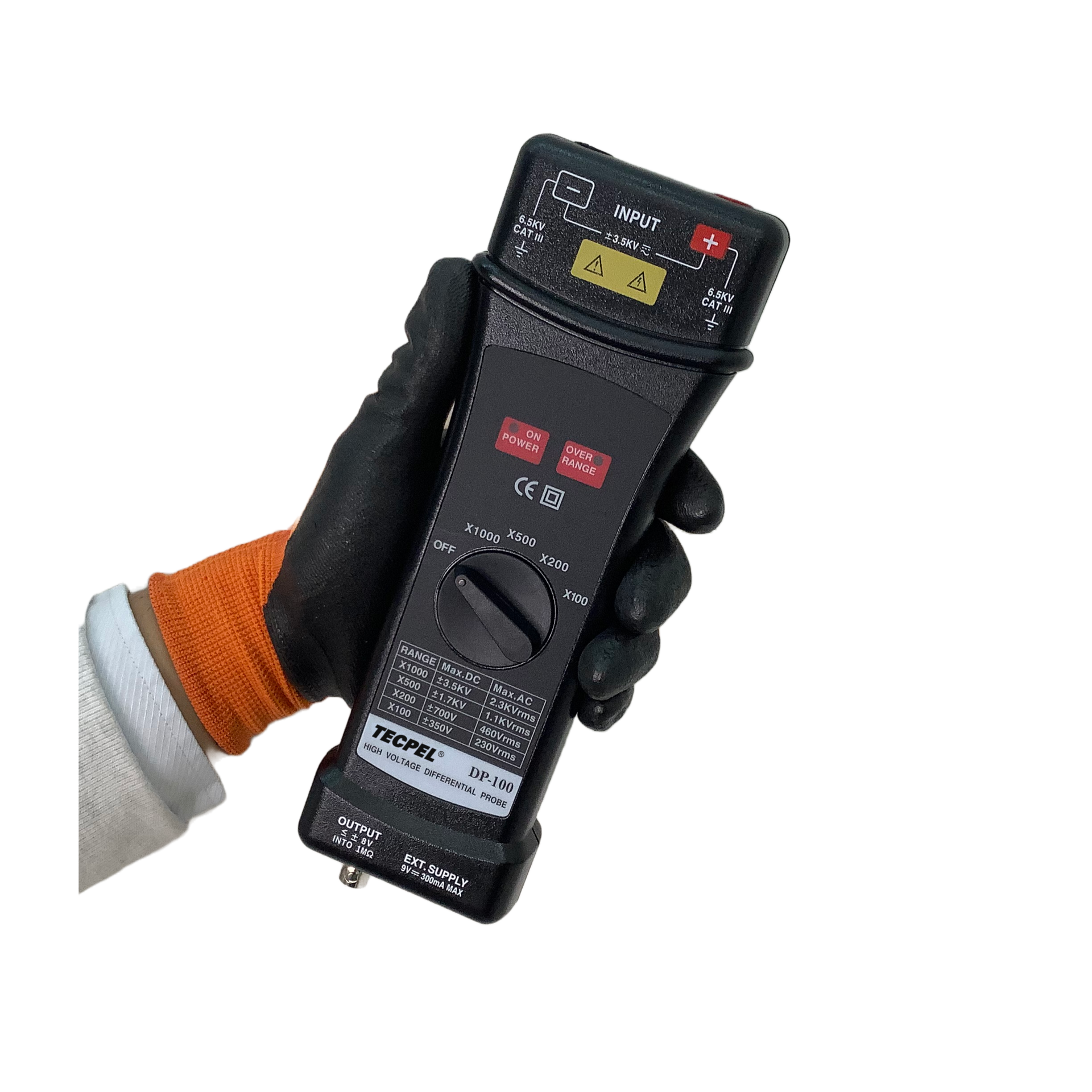

DP-100 Oscilloscope Differential Probe 100MHz Scope Product ID: DP-100

Differential Probe

Model: DP-100 ( 6.5KVp-p / 100MHz )



The DP-100 Differential probe provides a safety means for measuring differential voltage to all models of oscilloscope.  The DP-100 coverts the high differential voltage (<=7000 peak) into a low voltage (<=7.0v, with reference to the earth) and display on the oscilloscopes.

The DP-100 is designed to operate with the 1M Ohm impedance oscilloscope. When combine with the 50 Ohm load, the attenuation will be 2 times. We recommend to use Tecpel PL-10 with DP-100 to expand the measuring with Digital multimeter (DMM) to observe more accurate measurement. The accuracy of oscilloscope is 3% and the DMM is less than 1%. Note: If you connect DP-100 to the DMM without PL-10 the accuracy will be higher than 10%.









Category: Oscilloscope Probes
Certificate:CE

Differential probe for oscilloscope

4 RANGE ATTENUATOR
2 POWER SOURCE
6500V HIGH VOLTAGE INPUT.
SEPARATING DESIGN, CONVENIENT, DURABLE
MEET IEC1010, UL3111, TUV GS, CAT III 6500V



  • SPECIFICATIONS
    • Differential Voltage DC + pk AC:6500V
    • Bandwidth ( 50 Ω load -3dB ):100MHz( x100 50MHz)
    • Common Mode Voltage DC + pk AC:6500V
    • Common Mode Voltage RMS CAT II:6500V
    • Common Mode Voltage RMS CAT III:6500V
    • Attenuation ( Switchable ):X 100, X 200, X 500, X 1000
    • Input R ( Each input ):27MΩ ± 1%
    • Input C ( Each input ):2.5 PF ± 2%
    • Maximum Operation Voltage( DC + pk AC )
    • ≦ ± 650V at X 100
    • ≦ ± 1300V at X 200
    • ≦ ± 3250V at X 500
    • ≦ ± 6500V at X 1000
    • Common Mode Rejection Ration
    • ( C M R R )
    • 60 Hz : > 20,000 : 1
    • 100 Hz : > 2,000 : 1
    • 1 MHz : > 600 : 1
    • Noise ( Into 50Ω load ):≦ 1 m Vrms
    • Input Impedance ( between input):54 MΩ // 1.25 PF
    • Accuracy ( at 20 ~ 30℃ 70% RH after 20 minutes ):≦ ± 1.5 %
