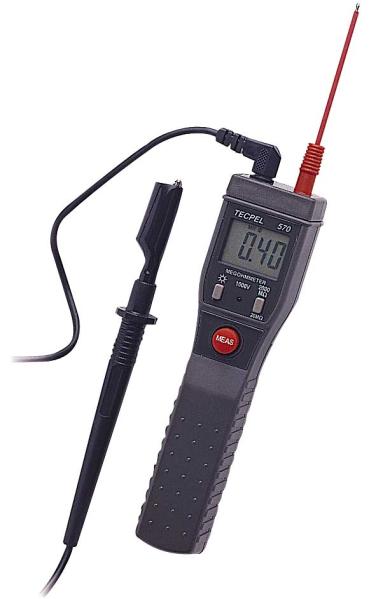

DIM-570 Megohm / Insulation Tester Product ID: DIM-570

Megohm/Insulation Meter
Model:DIM-570

Features :
1. Measure insulation resistance up to 2000MΩ
2. 1000V pulse to test insulation
3. 3 1/2 Digit LCD Back light display
4. Auto data hold function after releasing MEAS button
5. Auto power off function
6. Portability and simplicity for one hand operation
7. Valox housing to withstand accidental drops

Category: Electric Testers
Certificate:CE
  • DIM-570 Specifications:
    • Measurement Range: 20MΩ,2000MΩ
    • Accuracy:
    • 20MΩ ±(2.0%rdg + 2dgts),2000MΩ±(4.0%rdg + 2dgts), ±(5.0%rdg + 2dgts),
    • Test Voltage: 1000V DC approx.
    • Resolution: 10KΩ
    • Zero: Automatic
    • Polarity: Automatic positive implied, negative polarity indication
    • General
    • Power Requirement General
    • Power Requirement: 4 pieces 1.5V (AAA size) batteries
    • Dimensions: 6.7""x1.7""x1.6"" (170x44x40mm)
    • Weight: 6.3 oz(180g)
    • Accessories: Test leads,Soft carrying case, batteries, owners manual.
