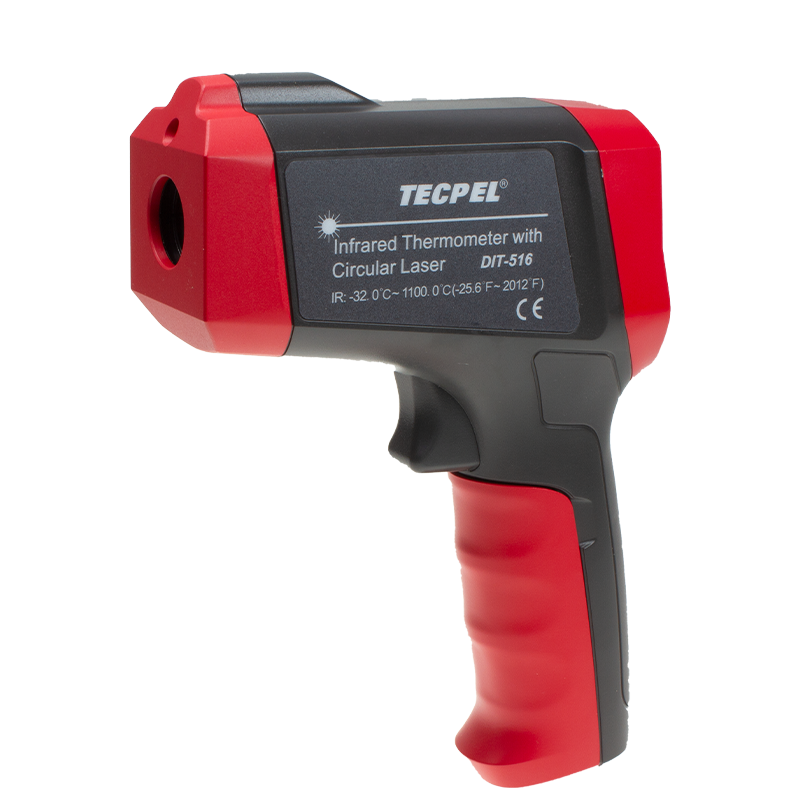

DIT-516 Digital Laser non contact Infrared Thermometer 32~650°C Product ID: DIT-516

For professionals who need to diagnose heating and ventilation problems, the Tecpel® Infrared Thermometer offers simple, quick, and accurate surface temperature measurement at the trigger of a button . This thermometer is safer than traditional contact thermocouple thermometer.

Designed with single point laser sighting, this rugged, compact and non-contact Tecpel infrared thermometer takes accurate readings in less than a second. It also offers LCD back-light for visibility in the dark, a broad temperature range, and a dual display for both current and maximum measurements to perform preventative checking of electrical motors and equipment, trouble-shooting dangerous oven steam traps, quickly check fuses or circuit breakers for overheating problem without physical contacts. It’s your best choice in price and quality.


Temperature Range: -32~650°C

Display Accuracy :1.8oC or 1.8%

Repeatability : 0.5°C or-0.5%

Display Resolution :  0.1

Distance to Spot Size : 20 : 1

Laser Power :  wavelength 630-670 nm

Scale selection : °C / °F Celsius /Fahrenheit available.

Temperature Data Hold Feature after releasing triggering button.

Power requiremnt :  USB (Auto Double Display Backlight) or 9V Battery (6F22)

Laser spot marker  on-off switch available

Electricity Cut Off Memory

MAX, MIN temperatures,  DIF, AVG temperatures

Double Display Backlight : Electro Luminescent (EL) Backlight

Sleep Mode   to save battery power.

Tripod mount: Equipped with a tripot mount hole for stand that can monitor temperature
continuously for hours.

Low Battery Display warning.

One hand operation.


Basic Functions Range Best Accuracy
Temperature Range -32~650oC
Display Accuracy 1.8oC or 1.8%
Repeatability 0.5oC or-0.5%
Display Resolution 0.1
Distance to Spot Size 20 : 1
Laser Power wavelength 630-670 nm
oC / oF Selection  Y
Temperature Data Hold  Y
Power USB (Auto Double Display Backlight) or 9V Battery (6F22)
Laser Switch  Y
Search  Y
Electricity Cut Off Memory  Y
MAX, MIN temperatures  Y
DIF, AVG temperatures  Y
Double Display Backlight EL (Electro Luminescent)
Sleep Mode  Y
Tripod mount  Y
Low Battery Display  Y


LCD Size 32 x 29 mm
Product Color Red and Grey
Product Net Weight 270g
Product Size 169 x 138 x 53 mm
Standard Accessories Battery, English Manual, USB Cable
Standard Individual Packing Gift Box
