GPC-3060D, GPC-6030D, 0-30V, 0- 6A Digital DC Power Supply
GPC-3060D, GPC-6030D, 0-30V, 0- 6A Digital DC Power Supply
Features
Triple Output
Auto Tracking
Auto Series and Parallel Operation
Constant Voltage and Constant Current Operation
Low Ripple and Noise
Internal Select for Continuous or Dynamic Load
Overload and Reverse Polarity Protection
3 1/2 Digits 0.5" LED Display
5V, 3A Fixed Output
(Note: GPC-3060D/6030D are not CE approved)
Features
Triple Output
Auto Tracking
Auto Series and Parallel Operation
Constant Voltage and Constant Current Operation
Low Ripple and Noise
Internal Select for Continuous or Dynamic Load
Overload and Reverse Polarity Protection
3 1/2 Digits 0.5" LED Display
5V, 3A Fixed Output
(Note: GPC-3060D/6030D are not CE approved)
TPS-1305R Programmable dc power supply
TPS-1305R is a programmable DC power supply with a fine-tuning voltage of 1mV and a resolution of 10mA of current. It can store 5 sets of parameters and can quickly switch between outputs. In addition to the output switch, it is also equipped with voltage and current overload protection
+ Small body for easy carry
+ 150W maximum output power
+ High resolution: 10mV/1mA
+ Low ripple and noise
+ Over-voltage/over-current protection
+ Intelligent temperature control fan cooling
+ 4 inch TFT LCD display
+ Support RS232 digital communication
+ Support SCPI
+ Small body for easy carry
+ 150W maximum output power
+ High resolution: 10mV/1mA
+ Low ripple and noise
+ Over-voltage/over-current protection
+ Intelligent temperature control fan cooling
+ 4 inch TFT LCD display
+ Support RS232 digital communication
+ Support SCPI
SPS-3610 Switching DC Power Supply
The SPS-Series is a single output, 360W, switching DC power supplies. OVP protects the SPS-Series and their loads from unexpected conditions. High regulation is maintained at 0.01%. Remote sensing adds an extra level of precision by compensating cable losses between loads. Turning the output On/Off from an external device is available through remote control terminals. The SPS-Series is an ideal solution for power-efficient bench-top or portable applications requiring high regulation.
Features
Dual Measurement Display
0.01 % High Regulation
Constant Voltage and Constant Current Operation
High Efficiency
High Power Density
Over Voltage Protection
Remote Output ON/OFF Control
OUTPUT
SPS-1230 / SPS-1820/ SPS-2415 / SPS-3610 / SPS-606
Voltage 0~12V / 0~18V / 0~24 V / 0~36V /0~60V
Current 0~30A / 0~20A / 0~15A / 0~10A /0~6A
CONSTANT VOLTAGE OPERATION
Line Regulation < 5mV
Load Regulation < 5mV
Ripple & Noise < 5mVrms, 100mVp-p 20Hz ~ 20MHz
Recovery Time < 500μS ( 50% Load change, Minimum load 0.5A )
Temp. Coefficient < 100 ppm/°C
Output Range 0 to rating voltage continuously adjustable
CONSTANT CURRENT OPERATION
Line Regulation < 3mA
Load Regulation < 3mA
Ripple Current < 3mArms (SPS-606)
< 5mArms (SPS-3610)
< 10mArms (SPS-2415)
< 10mArms (SPS-1820)
< 30mArms (SPS-1230)
Output Range 0 to rating current continuously adjustable (Hi/Lo range switchable)
METER
Type 3 1/2 Digit 0.39" LED Display
Accuracy ±( 0.5% of rdg + 2 digits )
INSULATION
Chassis and Terminal 20MΩ or above (DC 500V)
Chassis and AC Cord 30MΩ or above (DC 500V)
POWER SOURCE
AC 115V/230V ±15%, 50/60Hz
DIMENSIONS & WEIGHT
128(W) x 145(H) x 285(D)mm
Approx. 3.2kg
Features
Dual Measurement Display
0.01 % High Regulation
Constant Voltage and Constant Current Operation
High Efficiency
High Power Density
Over Voltage Protection
Remote Output ON/OFF Control
OUTPUT
SPS-1230 / SPS-1820/ SPS-2415 / SPS-3610 / SPS-606
Voltage 0~12V / 0~18V / 0~24 V / 0~36V /0~60V
Current 0~30A / 0~20A / 0~15A / 0~10A /0~6A
CONSTANT VOLTAGE OPERATION
Line Regulation < 5mV
Load Regulation < 5mV
Ripple & Noise < 5mVrms, 100mVp-p 20Hz ~ 20MHz
Recovery Time < 500μS ( 50% Load change, Minimum load 0.5A )
Temp. Coefficient < 100 ppm/°C
Output Range 0 to rating voltage continuously adjustable
CONSTANT CURRENT OPERATION
Line Regulation < 3mA
Load Regulation < 3mA
Ripple Current < 3mArms (SPS-606)
< 5mArms (SPS-3610)
< 10mArms (SPS-2415)
< 10mArms (SPS-1820)
< 30mArms (SPS-1230)
Output Range 0 to rating current continuously adjustable (Hi/Lo range switchable)
METER
Type 3 1/2 Digit 0.39" LED Display
Accuracy ±( 0.5% of rdg + 2 digits )
INSULATION
Chassis and Terminal 20MΩ or above (DC 500V)
Chassis and AC Cord 30MΩ or above (DC 500V)
POWER SOURCE
AC 115V/230V ±15%, 50/60Hz
DIMENSIONS & WEIGHT
128(W) x 145(H) x 285(D)mm
Approx. 3.2kg

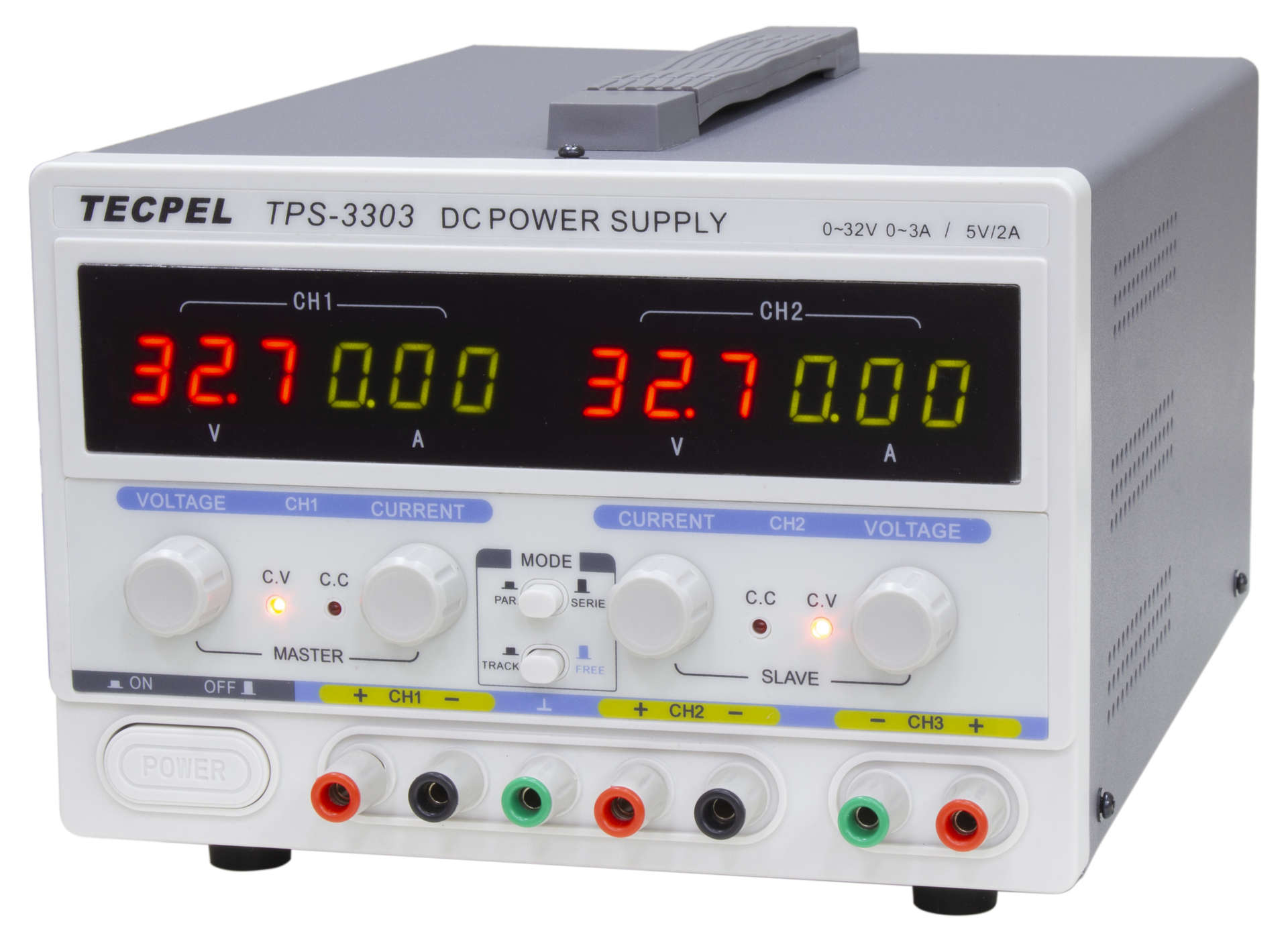

TPS-3303 Triple Output Linear D.C. Power Supply
CH1、CH2
--------------------
Output Volts (V) 0~32V
Output Amps (A) 0~3A
Series Volts 0~64V
Parallel Amps 0~6A
Load regulation CV ≤0.05%+2mV
CC ≤20mA
Line regulation CV ≤0.01%+3mV
CC ≤0.5%+3mA
Ripple & Noise CV ≤1mVrmS
CC ≤1mArmS
Tracking Error ≤0.5%+2mV
Volts Display 3 digits LED
Amps Display 3 digits LED
Display Accuracy ≤±(0.5%+2D)
------------------------
CH3
------------------------
Output Volts (V) 5V
Output Amps (A) 2A
Heat-dissipating::Forced air cooling,Temp.cintrolled fan
Working temp:0~40℃
MTBF:≥3000h
Protection Shot circuit,Over current,Over heat protection
Power supply: 110/220VAC、50Hz/60Hz
Dimensions:29(D)×22(W)×16(H)cm
weight:5kg
--------------------
Output Volts (V) 0~32V
Output Amps (A) 0~3A
Series Volts 0~64V
Parallel Amps 0~6A
Load regulation CV ≤0.05%+2mV
CC ≤20mA
Line regulation CV ≤0.01%+3mV
CC ≤0.5%+3mA
Ripple & Noise CV ≤1mVrmS
CC ≤1mArmS
Tracking Error ≤0.5%+2mV
Volts Display 3 digits LED
Amps Display 3 digits LED
Display Accuracy ≤±(0.5%+2D)
------------------------
CH3
------------------------
Output Volts (V) 5V
Output Amps (A) 2A
Heat-dissipating::Forced air cooling,Temp.cintrolled fan
Working temp:0~40℃
MTBF:≥3000h
Protection Shot circuit,Over current,Over heat protection
Power supply: 110/220VAC、50Hz/60Hz
Dimensions:29(D)×22(W)×16(H)cm
weight:5kg

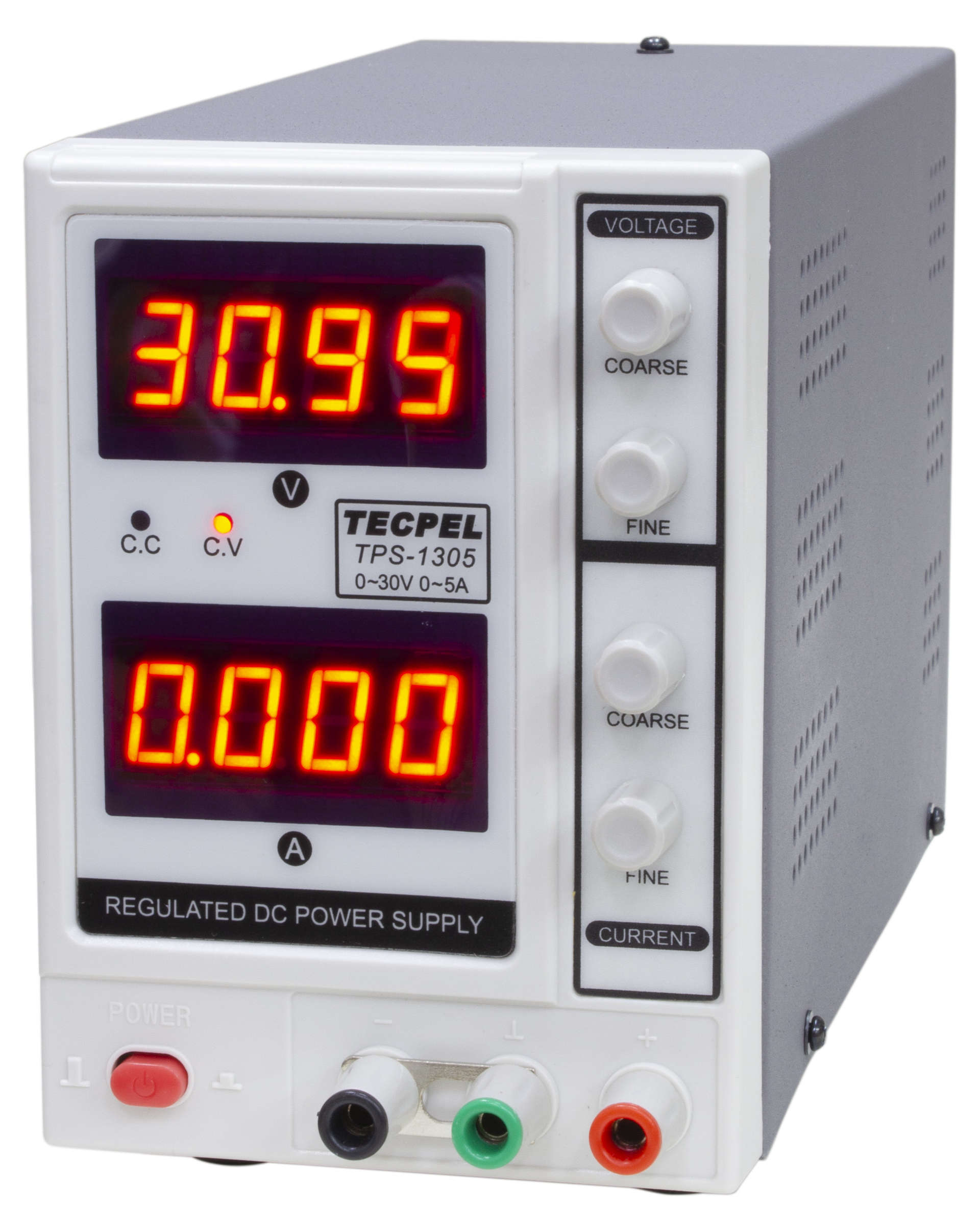

TPS-1305 Linear D.C. Power Supply
Output Volts (V) 0~30V
Output Amps (A) 0~5A
Load regulation CV ≤0.01%+2mV
CC ≤0.1%+3mA
Line regulation CV ≤0.01%+3mV
CC ≤0.2%+3mA
Ripple & Noise CV ≤1mVrmS
CC ≤1mArmS
Volts Display 4 digits LED
Amps Display 4 digits LED
Display Accuracy ≤±(0.5%+2digit)
Heat-dissipating Forced air cooling,
Temp.controlled fan
Working temp. 0~40℃
MTBF ≥3000h
Protection Shot circuit,
Over current,
Over heat protection
Power supply 110/220VAC
50Hz/60Hz
Dimensions 25(D)×11(W)×16(H)cm
weight 3kg
Output Amps (A) 0~5A
Load regulation CV ≤0.01%+2mV
CC ≤0.1%+3mA
Line regulation CV ≤0.01%+3mV
CC ≤0.2%+3mA
Ripple & Noise CV ≤1mVrmS
CC ≤1mArmS
Volts Display 4 digits LED
Amps Display 4 digits LED
Display Accuracy ≤±(0.5%+2digit)
Heat-dissipating Forced air cooling,
Temp.controlled fan
Working temp. 0~40℃
MTBF ≥3000h
Protection Shot circuit,
Over current,
Over heat protection
Power supply 110/220VAC
50Hz/60Hz
Dimensions 25(D)×11(W)×16(H)cm
weight 3kg

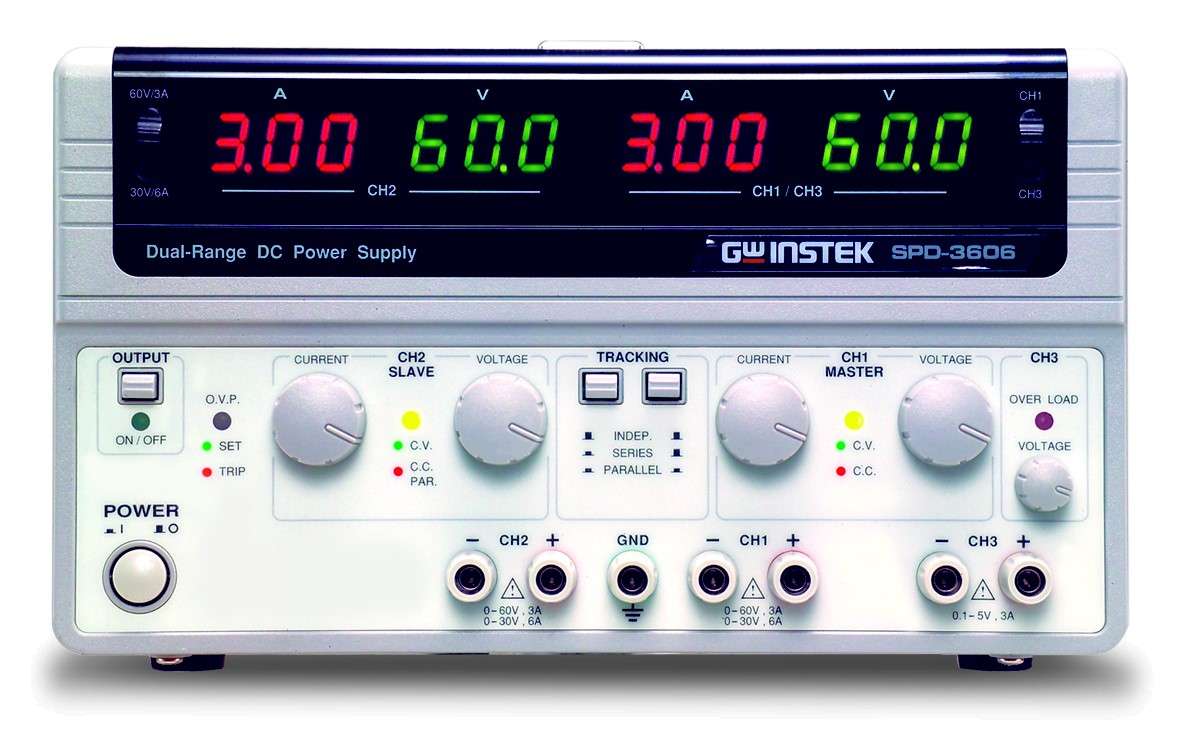

SPD-3606 Switching DC Power Supply
The SPD-3606 DC power supply provides 375W output capacity, three isolated outputs with dual-range for CH1 & CH2, highly efficient power conversion, low noise, high reliability, thorough protection ,excellent value, and a compact size.
The SPD-3606 creates a new benchmark to satisfy mainstream power supply demands. CH1 & CH2 offer dual-range output at either 30V/6A or 60V/3A per channel to accommodate a wide range of applications.
The SPD-3606 supports serial and parallel tracking, allowing the CH1 and CH2 to be internally connected in series or parallel to provide flexible output (30V/12A, 60V/6A, or 120V/3A). High power density and high power conversion efficiency let the SPD-3606 consume less energy, making SPD-3606 a greener power supply.
In addition, the high power density makes the SPD-3606 weigh less than half and occupy much less space compared to linear power supplies. To avoid damage caused by improper operation, it also has OVP and OTP. The dual range AC input accepts both 115V and 230V inputs. When the instrument is on, devices can be connected and voltage/current levels can be adjusted safely from the front panel by turning off the output via Output on/off key. The optional voltage/current protection knobs can be used to prevent accidental change of the output levels. These knobs are useful for automated testing at fixed output levels, such as in assembly lines or product inspections.
The SPD-3606 creates a new benchmark to satisfy mainstream power supply demands. CH1 & CH2 offer dual-range output at either 30V/6A or 60V/3A per channel to accommodate a wide range of applications.
The SPD-3606 supports serial and parallel tracking, allowing the CH1 and CH2 to be internally connected in series or parallel to provide flexible output (30V/12A, 60V/6A, or 120V/3A). High power density and high power conversion efficiency let the SPD-3606 consume less energy, making SPD-3606 a greener power supply.
In addition, the high power density makes the SPD-3606 weigh less than half and occupy much less space compared to linear power supplies. To avoid damage caused by improper operation, it also has OVP and OTP. The dual range AC input accepts both 115V and 230V inputs. When the instrument is on, devices can be connected and voltage/current levels can be adjusted safely from the front panel by turning off the output via Output on/off key. The optional voltage/current protection knobs can be used to prevent accidental change of the output levels. These knobs are useful for automated testing at fixed output levels, such as in assembly lines or product inspections.
GPS-2303/3303/4251/4303 Linear DC Power Supply
GPS Multi-Output Series D.C. POWER SUPPLY
GPS Multi-Output Series
FEATURES:
1. Quad Independent DC Output
2. Four LED Display with 3 digits, selectable for two sets output voltage and current
display simultaneously
3. Auto Series, Parallel and Tracking Operation
4. Constant Voltage and Constant Current Operation
5. Low Ripple and Noise
6. Overload and Reverse Polarity Protection
7. Selectable for Continuous/Dynamic Load
8. Output Enable/Disable Control
9. Rotation speed of the fan is controlled by heatsink temperature
10.Jack Type Terminal for Europe (Option)
GPS Multi-Output Series
FEATURES:
1. Quad Independent DC Output
2. Four LED Display with 3 digits, selectable for two sets output voltage and current
display simultaneously
3. Auto Series, Parallel and Tracking Operation
4. Constant Voltage and Constant Current Operation
5. Low Ripple and Noise
6. Overload and Reverse Polarity Protection
7. Selectable for Continuous/Dynamic Load
8. Output Enable/Disable Control
9. Rotation speed of the fan is controlled by heatsink temperature
10.Jack Type Terminal for Europe (Option)
GPS-3030D/ GPS-3030DD Laboratory DC Power Supply
GPS-SERIES
(DIGITAL TYPE)
GPS-3030DD (DIGITAL TYPE)
1. Light and Compact Design
2.Remote Control by External Voltage
3. 0.01% High Regulation
4.Internal Select for Continuous or Dynamic Load
5.Low Ripple and Noise
6. Series or Parallel Operation Function Overload and Reverse Polarity Protection
(DIGITAL TYPE)
GPS-3030DD (DIGITAL TYPE)
1. Light and Compact Design
2.Remote Control by External Voltage
3. 0.01% High Regulation
4.Internal Select for Continuous or Dynamic Load
5.Low Ripple and Noise
6. Series or Parallel Operation Function Overload and Reverse Polarity Protection
GPC-3030DQ / GPC-3030D Linear D.C. Power Supplies
GPC-3030DQ
D.C. POWER SUPPLY( Dual 30V, 3A)
1. Four Digital Panel Meter
2. Triple Output
3. Auto Tracking
4. Auto Series and Parallel Operation
5. Constant Voltage and Constant Current Operation
6. Low Ripple and Noise
7. Internal Select for Continuous or Dynamic Load
8. Overload and Reverse Polarity Protection
9. 1/2 Digits 0.39"" LED Display
10. 5V, 3A Fixed Output
GPC-3030D (DIGITAL)
D.C. POWER SUPPLY (Dual 30V, 3A)
1. Triple Output
2. Auto Tracking
3. Auto Series and Parallel Operation
4. Constant Voltage and Constant Current Operation
5. Low Ripple and Noise
6. Internal Select for Continuous or Dynamic Load
7. Overload and Reverse Polarity Protection
8. 3 1/2 Digits 0.5"" LED Display
9. 5V, 3A Fixed Output
D.C. POWER SUPPLY( Dual 30V, 3A)
1. Four Digital Panel Meter
2. Triple Output
3. Auto Tracking
4. Auto Series and Parallel Operation
5. Constant Voltage and Constant Current Operation
6. Low Ripple and Noise
7. Internal Select for Continuous or Dynamic Load
8. Overload and Reverse Polarity Protection
9. 1/2 Digits 0.39"" LED Display
10. 5V, 3A Fixed Output
GPC-3030D (DIGITAL)
D.C. POWER SUPPLY (Dual 30V, 3A)
1. Triple Output
2. Auto Tracking
3. Auto Series and Parallel Operation
4. Constant Voltage and Constant Current Operation
5. Low Ripple and Noise
6. Internal Select for Continuous or Dynamic Load
7. Overload and Reverse Polarity Protection
8. 3 1/2 Digits 0.5"" LED Display
9. 5V, 3A Fixed Output
