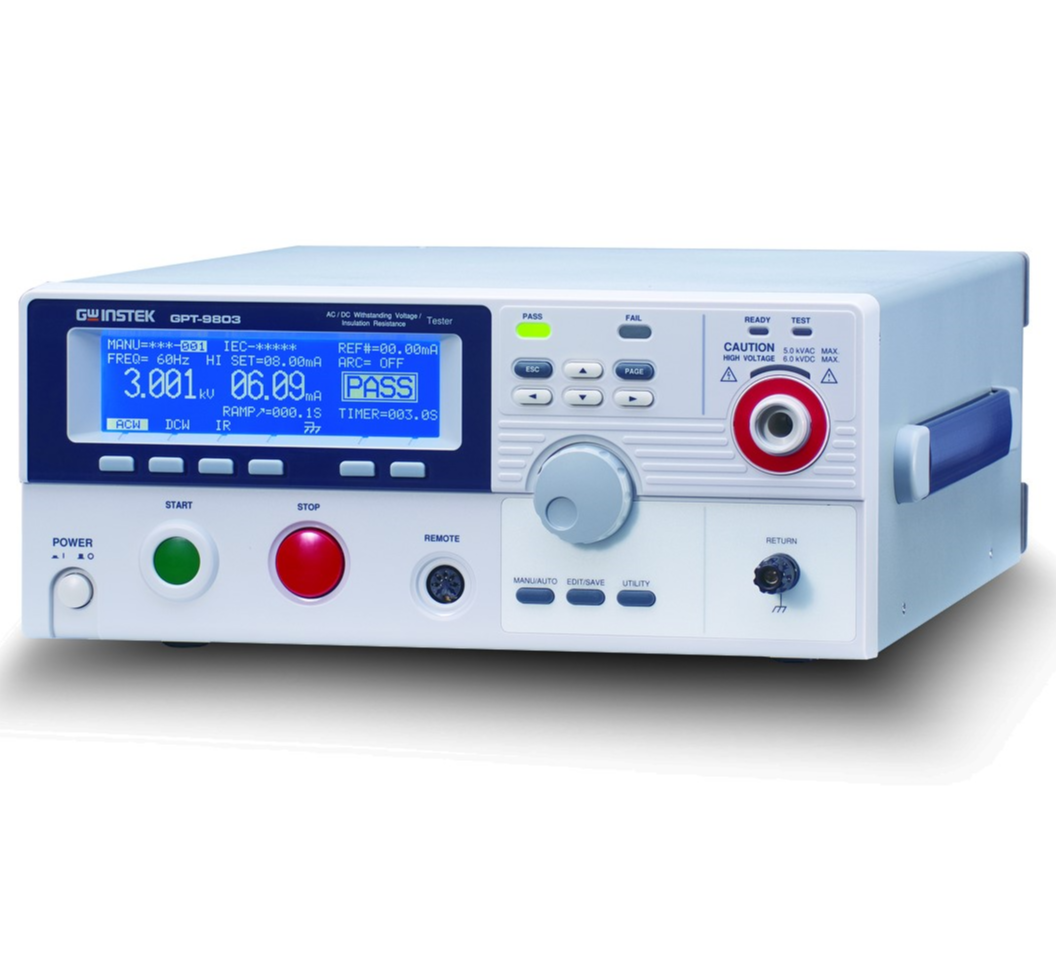

GW INSTEK GPT-9800 Electrical Safety Tester, Hi-Pot Tester Product ID: GPT-9801, 9802, 9803, 9804 GW INSTEK

GW INSTEK GPT-9800 Electrical Safety Tester, Hi-Pot Tester
Features
200VA AC Test Capacity
240x64 Ice Blue Dot matrix LCD
Manual/Auto Mode
Function Key for quick selecting
High-intensity flash for Caution & Status indication
Safety INTERLOCK function
Zero-Crossing Turn-on Operation
Controllable Ramp-up Time
RMS Current Measurement
High resolution: 1uA for measuring current, 2V for setting the voltage
PWM amplifier to enhance the power efficiency and reliable testing
Max. 100 memory block for test condition (step) setting. And each step can be named individually.
Remote terminal on the front panel for “start” and “stop” control
Interface: RS-232C, USB device, Signal I/O, and GPIB (optional)

Certificate:CE
GPT-9800 Specifications
The specifications apply when the GPT-9800 is powered on for at least 30 minutes under +15°C~+35°C.
(GPT-9801/9802/9803) (GPT-9804)


Model \ Func.  AC WITHSTANDING  DC WITHSTANDING
 INSULATION RESISTANCE
GROUND BOND
9804 V V  V V
9803 V V V Nil
9802 V V Nil Nil
9801 V Nil Nil Nil




AC WITHSTANDING
Output-Voltage Range 0.050kV~ 5.000kV ac
Output-Voltage Resolution 2V/step
Output-Voltage Accuracy ± (1% of setting +5V) [no load]
Maximum Rated Load 200 VA (5kV/40mA)
Maximum Rated Current 40mA (0.5kV < V ≦ 5kV); 10mA (0.05kV ≦ V≦ 0.5kV)
Output-Voltage Waveform Sine wave
Output-Voltage Frequency 50 Hz / 60 Hz selectable
Voltage regulation ± (1% of reading +5V) [full load → no load]
Voltmeter Accuracy ± (1% of reading+ 5V)
Current Measurement Range 0.001mA~040.0mA
Current Best Resolution 0.001mA / 0.01mA / 0.1mA
AC Current Measurement Accuracy ±(1.5% of reading +30 counts) when HISET < 1.11mA
±(1.5% of reading +3 counts) when HISET ≧ 1.11mA
Window Comparator Method Yes
ARC Detect Yes
RAMP (Ramp-Up Time) 0.1~999.9s
TIMER (Test Time)* OFF**, 0.5s~999.9s
GND ON/OFF
DC WITHSTANDING
Output-Voltage Range 0.050kV~ 6.000kV dc
Output-Voltage Resolution 2V/step
Output-Voltage Accuracy ± (1% of setting +5V) [no load]
Maximum Rated Load 50W (5kV/10mA)
Maximum Rated Current 10mA (0.5kV < V ≦ 6kV); 2mA (0.05kV ≦ V≦ 0.5kV)
GPT-9800_Spec_E_2
Voltage regulation ± (1% of reading +5V) [full load → no load]
Voltmeter Accuracy ± (1% of reading+ 5V)
Current Measurement Range 0.001mA~010.0mA
Current Best Resolution 0.001mA / 0.01mA / 0.1mA
DC Current Measurement Accuracy ±(1.5% of reading +30 counts) when HISET < 1.11mA
±(1.5% of reading +3 counts) when HISET ≧ 1.11mA
Window Comparator Method Yes
ARC Detect Yes
RAMP (Ramp-Up Time) 0.1~999.9s
TIMER (Test Time)* OFF**, 0.5s~999.9s
GND ON/OFF
INSULATION RESISITANCE
Output-Voltage 50V~1000V dc
Output-Voltage Resolution 50V/step
Output-Voltage Accuracy ± (1% of setting +5V) [no load]
Resistance Measurement Range 1 MΩ ~ 9500 MΩ
Test voltage Measurable Range Accuracy
50V≦V≦450V 1 MΩ ~ 50 MΩ
51 MΩ ~ 2000 MΩ
±(5% of reading +1 count)
±(10% of reading +1 counts)
500V≦V≦1000V 1 MΩ ~ 500 MΩ
501 MΩ ~ 9500 MΩ
±(5% of reading +1 count)
±(10% of reading +1 count)
Window Comparator Method Yes
Output Impedance 600 kΩ
RAMP (Ramp-Up Time) 0.1~999.9s
TIMER (Test Time)* 1s~999.9s
GND OFF (fixed)
GROUND BOND
Output-Current Range 03.00A~30.00A ac
Output-Current Resolution 0.01A
Output-Current Accuracy 3A≦I≦8A : ± (1% of setting +0.2A); 8A Test-Voltage 6Vac max. (open circuit)
Test-Voltage Frequency 50 Hz / 60 Hz selectable
Resistance Measurement Range 10mΩ ~ 650.0mΩ
Resistance Measurement Resolution 0.1mΩ
Resistance Measurement Accuracy ± (1% of reading +2mΩ)
Window Comparator Method Yes
TIMER (Test Time)* 0.5s~999.9s
GND OFF (fixed)
Test Method Four Terminal
MEMORY
Single Step Memory MANU : 100 blocks
Automatic Testing Memory AUTO : 100 blocks, menu per auto : 16
INTERFACE
Standard RS232, USB device, SIGNAL IO, Remote Terminal (Front)
Option GPIB
GENERAL
Display 240 x 64 dot matrix LED back light LCD
Power Source AC100V/120V/220V/230V ±10%, 50/60Hz
Power Consumption 500VA max.
Dimensions & Weight 330(W) x 148(H) x 452(D) mm, approx.19kg(Max)
* TIMER Accuracy: ± (100ppm + 20ms)
** The “TIMER OFF” can only be performed when the tester is in the special MA

A Solid Foundation for Reliable, Safe and Practical Safety Compliance Testing

GW Instek is launching to the market a series of safety tester (hi-pot tester/hipot tester) with high durability and multiple user-protection design. The GPT-9800 supports the major test items among all the needed for the compliance of the safety standards such as IEC, EN, UL, CSA, GB, JIS and other safety regulations.

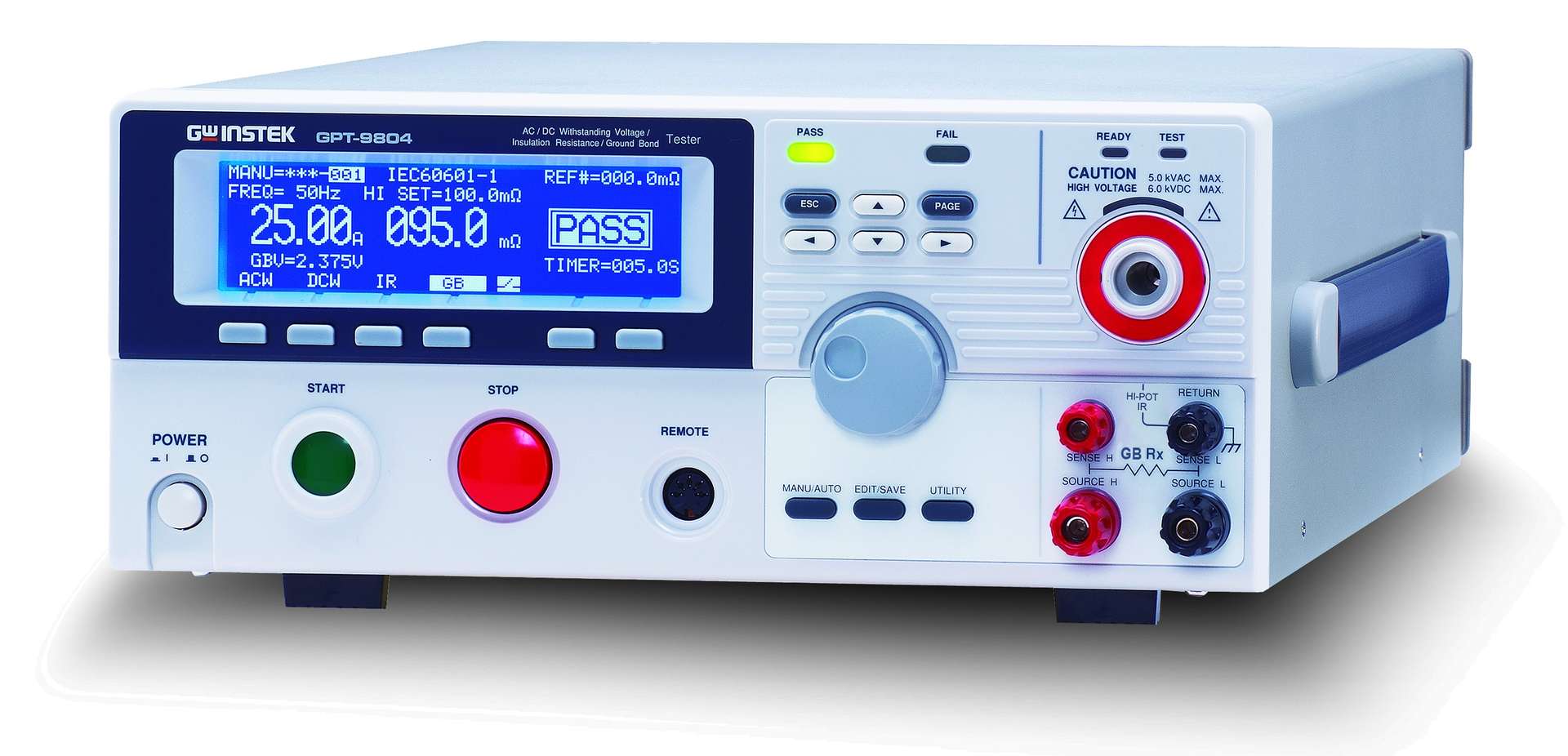

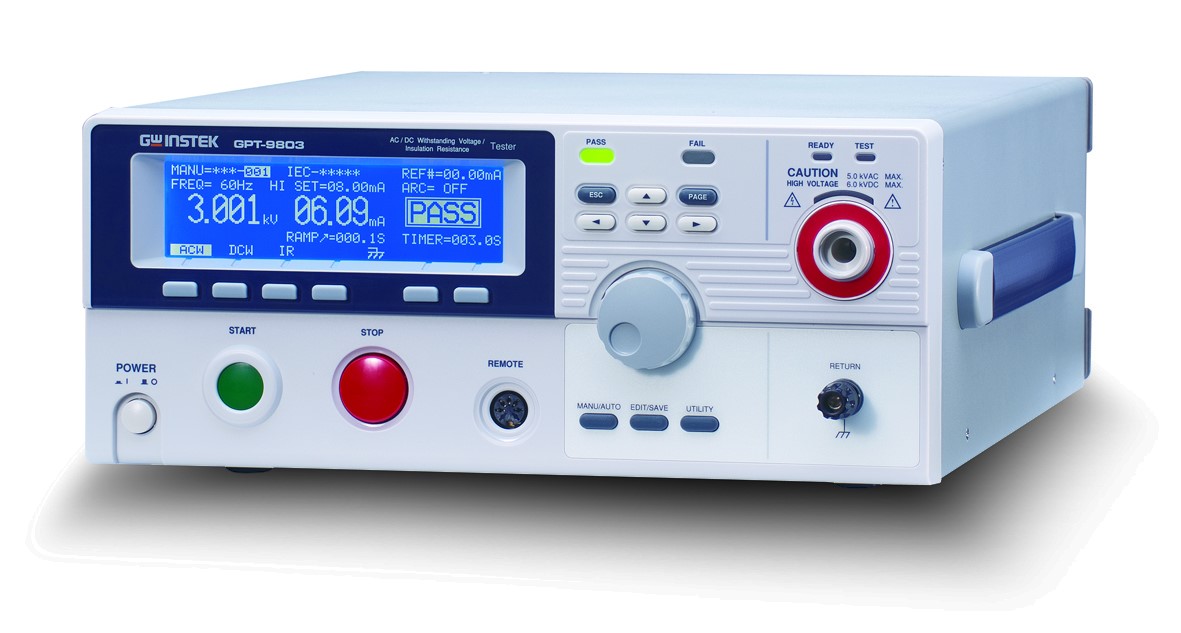

A total of 4 safety testers in the GPT-9800 Series, namely GPT-9804, GPT-9803, GPT-9802 and GPT-9801, are available for various applications. The GPT-9804 is a 4-in-1 model capable of performing AC withstanding, DC withstanding, insulation resistance and ground bond tests. The GPT-9803 is a 3-in-1 model capable of performing AC withstanding, DC withstanding as well as insulation resistance tests. The GPT-9802 is capable of performing both AC and DC withstanding tests, whereas the GPT-9801 is able to perform AC withstanding test. The series of safety tester is built upon a high-efficiency PWM amplifier platform with AC 200VA maximum output capacity to impede the influence from the voltage fluctuation of the input AC source. This ensures a stable voltage supply for all the tests of the GPT-9800 Series.



Targeting user’s protections, the GPT-9800 series uses a combination of hardware and software controls to improve safety: A self-check is performed to make sure all the functions and operations are under normal condition each time when the tester is turned on; the Zero Crossing Turn-On design imposes the output voltage to always begin at the zero crossing of a sine wave to avoid the impact of surge voltage output; and the output voltage is automatically cut off (within 150μs) when abnormal output voltages have been detected or when the upper or lower current limits have been reached during testing. To protect operator from hazardous injury, the GPT-9800 Series automatically discharges the DUT after test (within 200ms) each time to eliminate excessive voltage that remains on the DUT. To further ensure safety, the interlock connector can also be used as double protections to prevent inadvertent operation.



The GPT-9800 Series, equipped with a simple & clear panel layout, a high resolution dot matrix LCD display, and color LED indicators, allows operators to interpret measurement results easily and quickly. All major test functions, including AC withstanding (AC 5kV/40mA), DC withstanding (DC 6kV/10mA), insulation resistance (DC 50V ~ 1000V) and ground bond (AC 30A max.) tests, are performed under a high-stability voltage output with high-resolution measurement results. Further more, the test duration, ramp up time and upper/lower limits of the output voltage are fully-adjustable to accommodate a wide variety of safety tests with accurate measurement results.

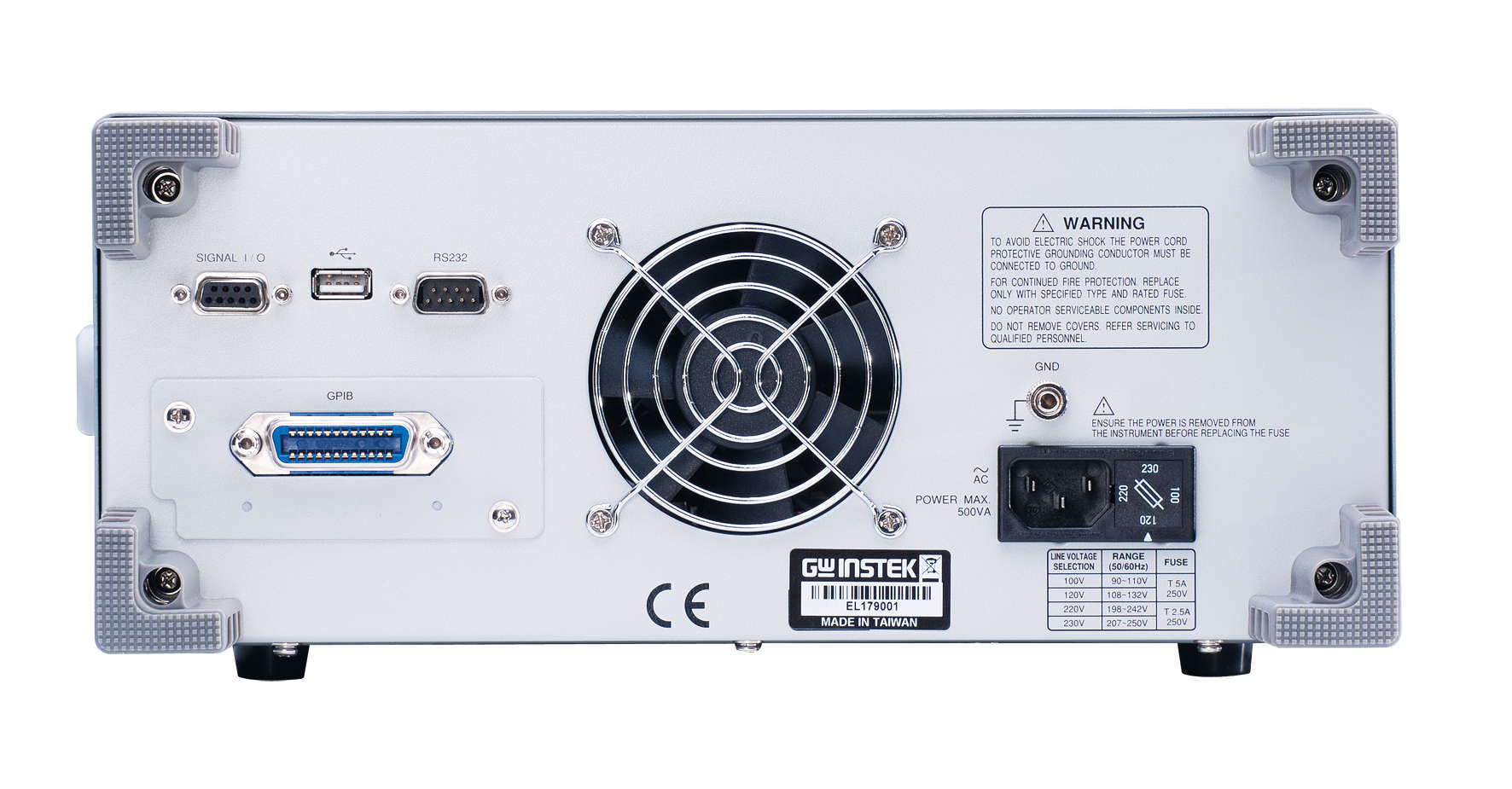

Other functions and features of the GPT-9800 include: open circuit detection for ground bond testing to get correct measurement result with confidence; 100 sets of memory to save panel settings, which can be recalled for single test individually or for automatic tests in sequence; a remote output on-off terminal in the front panel and a signal I/O port in the rear panel provided as the means for remote start/stop control of the safety tester; RS-232C, USB and GPIB (optional) interfaces available for PC remote control and test result logging.



  • High Efficiency and High Stability Output
  • High Accuracy and High Resolution Testing Performance
  • Safety Guarding throughout the Testing Period
  • Multiple Protection Mechanisms
  • Friendly User Interface
  • High Efficiency and High Stability Output
