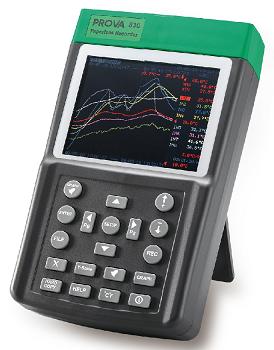

8-Channel thermo data logger Product ID: 830

■ Can work as a Multi-input thermometer or Paperless recorder

■ 5.7” Color TFT LCD (320 x 240) with backlight

■ 8-input temperature measurement/logging (℃/℉)

■ Color graphic display of 8 curves at the same time

■ Display of max and min values for each input

■ Selection of 11 types of thermocouple

■ Easy socket for thermocouple mini connector

■ Basic accuracy 0.1% ± 1 ℃ (K type)

■ Programmable Hi-Lo alarm with timers when out of HI-LO limits

■ Sampling rate 8 inputs / 1 second

■ 28-hour recording with a Lithium battery of 3400mAH

■ Standard 2G SD memory card (stores 3.8-year of data)

■ SD card directly read by PC

■ Easy data file management (Read and Delete functions)

■ Built-in calendar clock

■ Accept analog outputs from instruments

■ Independent input setup (type of thermocouple, Hi-Lo alarm values, name of Engineering Unit)

■ Isolated input protection of 350Vp-p between any two inputs

■ Programmable Engineering Unit (E.U.) to integrate analog output (-60 to 60 mV) from instruments (e.g. Sound level meter, Humidity meter, Current adaptor)

■ Screen hardcopy into bit map files for easy documentation

■ Ready to use package (thermocouples, SD card, and battery)

■ Digital and analog (bar graph) data display

■ Statistics data (Histogram) for easy analysis

■ Easy curves manipulation (hide or display selected curves)


Electrical Specifications: (23℃±5℃)
Type ℃ ℉
Range Accuracy Range Accuracy
K -200 ~ -150
-150 ~ -100
-100 ~ 999.9
1000 ~ 1370
±3.0℃
±2.0℃
±0.1% ±1.0℃
±0.2% ±1.0℃
-328 ~ -238
-238 ~ -148
-148 ~ 999.9
1000 ~ 2498
±5.4℉
±3.6℉
±0.1% ±1.8℉
±0.2% ±1.8℉
J -200 ~ -100
-100 ~ 100
100 ~ 999.9
±2.5℃
±1.5℃
±0.1% ±1.0℃
-328 ~ -148
-148 ~ 212
212 ~ 999.9
1000 ~ 1832
±4.5℉
±2.7℉
±0.1% ±1.8℉
±0.2% ±1℉
E -150 ~ -100
-100 ~ 760
±2.0℃
±0.1% ±1.0℃
-238 ~ -148
-148 ~ 999.9
1000 ~ 1400
±3.6℉
±0.1% ±1.8℉
±0.2% ±1℉
T -200 ~ -150
-150 ~ -100
-100 ~ 400
±3.0℃
±0.1% ±1.5℃
±0.1% ±0.5℃
-328 ~ -238
-238 ~ -148
-148 ~ 752
±5.4℉
±0.1%±2.7℉
±0.1% ±0.9℉
R/S 0 ~ 100
100 ~ 300
300 ~ 999.9
1000 ~ 1600
±5.0℃
±3.0℃
±0.1% ±2.0℃
±0.1% ±2.0℃
32 ~ 212
212 ~ 572
572 ~ 999.9
1000 ~ 2912
±9.0℉
±5.4℉
±0.1% ±3.6℉
±0.1% ±3.6℉
N 0 ~ 999.9
1000 ~ 1300
±0.1% ±1.0℃
±0.2% ±1.0℃
32 ~ 999.9
1000 ~ 2372
±0.1% ±1.8℉
±0.2% ±1.8℉
L -200 ~ 900 ±0.1% ±1.0℃ -328 ~ 999.9
1000 ~ 1652
±0.1 % ±1.8℉
±0.2 % ±1℉
U 0 ~ 600 ±0.1% ±1.0℃ 32 ~ 999.9
1000 ~ 1112
±0.1% ±1.8℉
±0.2% ±1℉
B 600 ~ 999.9
1000 ~ 1760
±0.1% ±2.0℃
±0.1% ±2.0℃
1112 ~ 1831
1832 ~ 3200
±0.1% ±3.6℉
±0.1% ±3.6℉
C 0 ~ 999.9
1000 ~ 1760
±0.1% ±1.5℃
±0.2% ±1.5℃
32 ~ 999.9
1000 ~ 3200
±0.1% ±2.7℉
±0.2% ±2.7℉
mV -10 ~ 60 ±0.06 mV -10 ~ 60 ±0.06 mV
mV -50 ~ -10 ±0.1 mV -50 ~ -10 ±0.1 mV
General Specifications:
LCD 5.7” Color TFT LCD (320 x 240) with backlight
Battery Type: Rechargeable Lithium Battery, 3400mAh (11.1V)
AC Adaptor: DC Regulated 12V / 300mA output
AC 110V or 220V Input
Power Consumption: 220mA (very bright backlight)
150mA (bright backlight)
120mA (dark backlight)
Cold Junction
Compensation Accuracy:
±0.5℃ / ±0.9℉
Temperature Coefficient: 0.01% of F.S. / ℃
Isolated Input Protection
between any two inputs:
350Vp-p
Dimension: 257(L) x 155(W) x 57(H) mm, 10.1" (L) x 6.1" (W) x 2.2" (H)
Weight: 1160g / 40.9oz (Batteries included)
Operation Environment: 0℃ ~ 50℃, 85% RH
Storage Environment: -20℃ ~ 60℃, 75% RH
Accessories: AC power adaptor x 1, Lithium battery (11.1V) x 1,
USB cable x 1, SD card (2GB or larger) x 1,
Carrying bag x 1, User manual x 1,
Software CD x 1, Software manual x 1,
K-type thermocouples (-50~200℃ / -58 ~392℉±0.75%):
1-meter x 7pcs.; 3-meter x 1pc.
Options: SDHC card (8GB, Maximum)
Mini connector for analog Input
Optical RS-232 to USB bridge

Certificate:CE
