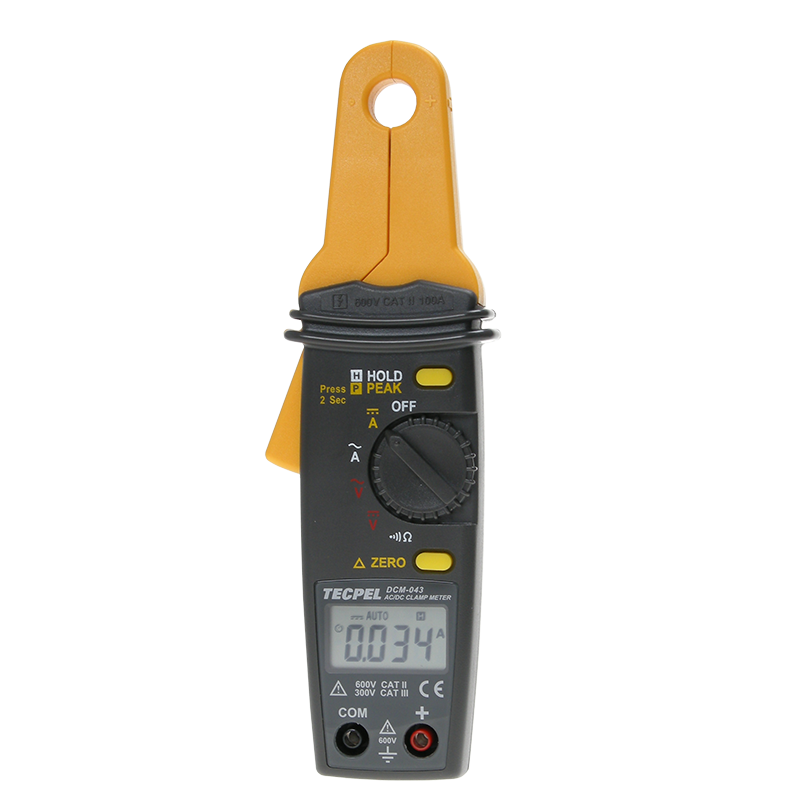

DCM-043 AC/DC Current Transmitter Product ID: DCM-043

TECPEL DCM-043 a high high resolution AC/DC clamp meter. With the resolution of 1mA and span of 100A, this current clamp transmitter is a great meter for circuit measurement or for car applications.

Certificate:CE
  • Key Specifications
    • Analog signal output function
    • High Resolution 1mA (0.001A)
    • Pocket size
    • 4 digits display
    • Touch zero function
    • Autoranging
    • Auto power off
    • Peak hold function
    • Data hold function
    • IEC 1010 600V CAT II,300V CAT II
  • Specification
    • LCD Display: 4 digital liquid disply
    • Sampling Rate: 2 times/sec.

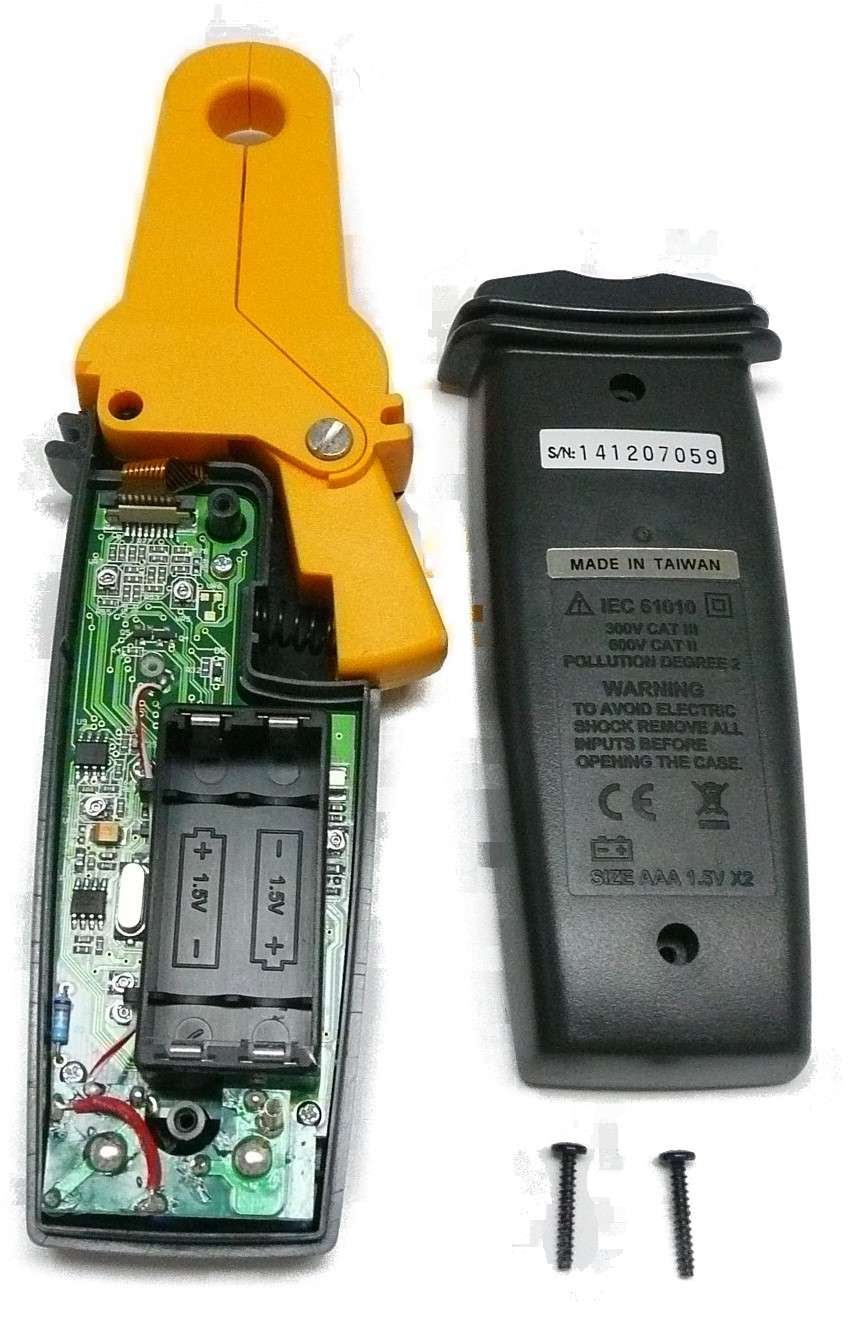

    • Power requirement: Battery 1.5V, Size AAA x 2
    • Dimensions: 202 x 50 x 29 mm
    • Weight: 180 g
    • Jaw Openning Size: 12.5 mm
    • Analog Output: 10 mV/Amp
    • Frequency Response: 20K Hz
    • Beeper: Active Sound Level Less than 100 Ohm
How to calibrate clamp meter accuracy?
Function range Resolution Accuracy
AC A 10A ~ 100A 1mA~10mA +/-2% Rdg+ 10 dgts
DC A 10A ~ 100A 1mA~ 10mA +/- 2.5% Rdg+ 10 dgts
AC V 600V 0.1V +/-1.5% Rdg+ 5 dgts
DC V 600V 0.1V +/- 1% Rdg + 2 dgts
Ohms 10K Ohm 1 Ohm +/-1% Rdg + 3 dgts
