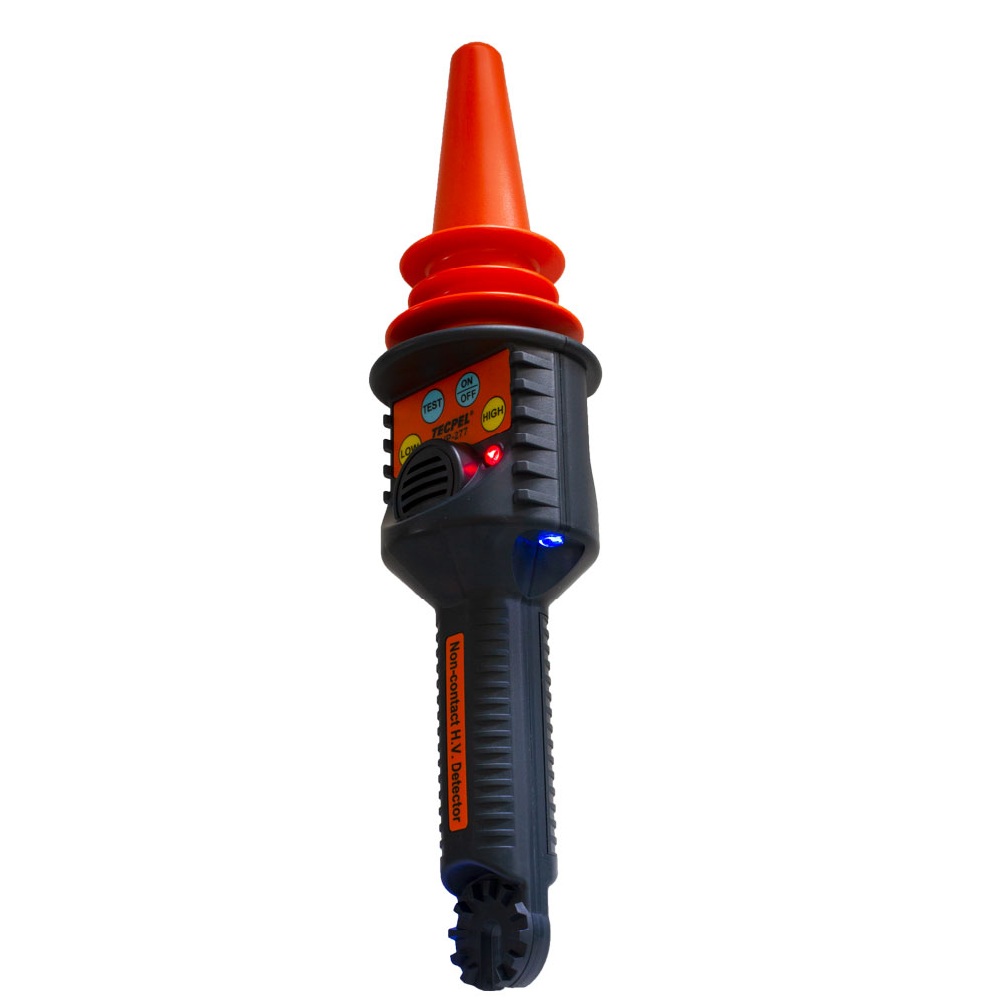

HVP-277 High Voltage detector Product ID: HVP-277
The HVP-277 high voltage detector is an ideal tool for checking the presence of AC high voltages and AC low voltages in cables, wall outlet, fuses......etc.
The HVP-277 provides a non-contact detection for AC voltages from 50V~132kV. It's also an essential tool for industrial, utility and mine safety applications.

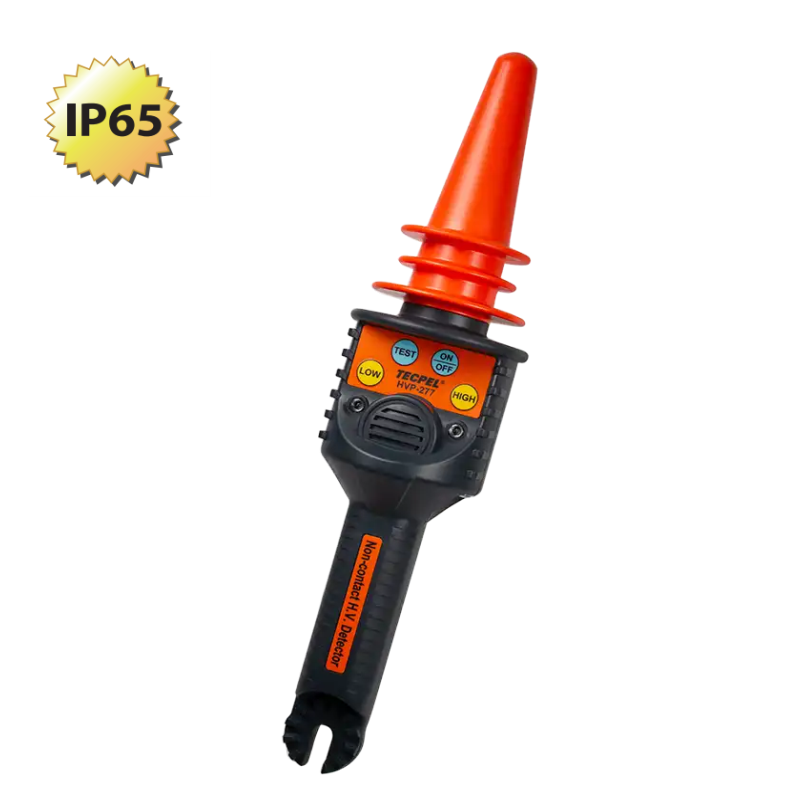

Production Class: IP65
Specifications:
1.Operating temperature: 0°C~50°C
2.Dimensions: 318(L) x 75(W) x 71(D)mm
3.Weight (battery included): Approx. 227g
4.Power source: 9V(6LF22) x 1 Alkaline battery
5.Safety standards: EN 61326-1 / EN 61000-4-2 / EN 61000-4-3
● 2 ranges for selection ( 2 function buttons )
LOW: 50V~1.5kV
Press the LOW button, and HVP-277 is ready for low voltage detection.
HIGH : 1.5kV~132kV
Press the HIGH button, and HVP-277 is ready for high voltage detection.
● Power consumption:
Off : Less than 5uA
Low voltage detection mode: Less than 40mA
High voltage detection mode: Less than 40mA
● Circuit test function
Press the Test button to make sure the whole circuit is working well
before testing actual high voltage circuits.
● Optional accessory:
HS-175 Telescopic hot stick (triangle-type)
HS-120 Hot stick
