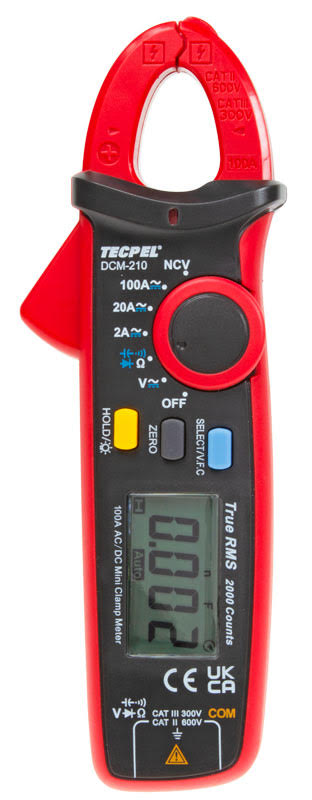

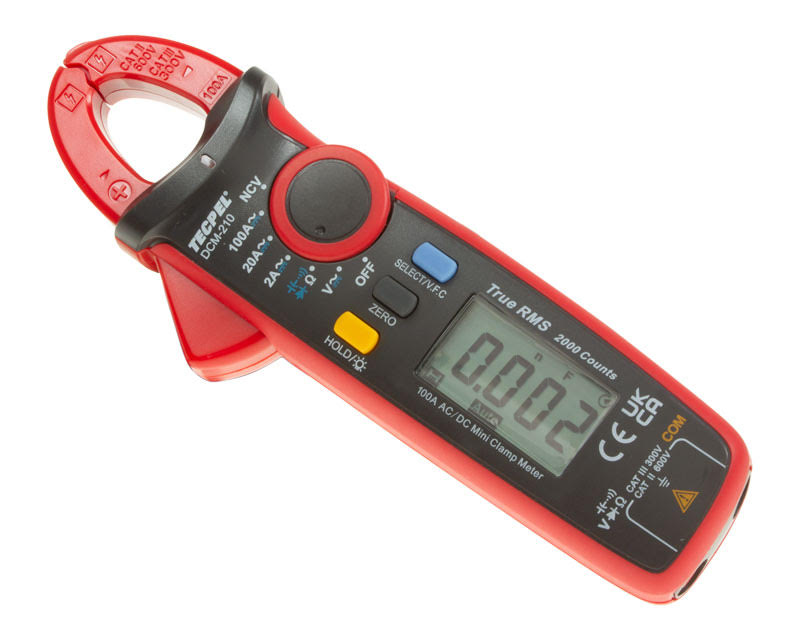

DCM-210 mini Amp clamp meters, best for automotive repair service Product ID: DCM-210

DCM-210 mini digital clamp meter has the characteristics of high reliability, high safety, automatic range and miniaturization. It can accurately measure small current signals; the product IC chip is set with VFC startup mode, and the internal will pass through a specific filter circuit to filter out high-frequency interference signals to ensure the accuracy of measurement data! It can be applied to occasions with VFC frequency conversion voltage and current, full-scale overload protection, and unique appearance design, making it a new generation of practical electrical measuring instruments with more excellent performance.
Product main features
AC and DC current measurement, minimum resolution 1mA, maximum range 100A;
AC voltage and current are both true RMS measurements;
Automatic range of voltage, capacitance, and resistance files;
Diode gear open circuit voltage 3.2V can measure LEDs with a large voltage drop;
There are ZERO and HOLD functions;
The non-contact voltage detection or NCV function is realized through the sensor on the top of the clamp head;
With VFC function, it can measure AC voltage and AC current with variable frequency interference;
Small and exquisite, easy to carry.

Certificate:

Product Features

  • DIODE :Approx. 3.0V
  • ANTI FREQUENCY INTERFERENCE (V.F.C) :
  • ELECTRIC FIELD WARNING (NCV) :
  • MAXIMUM AND MINIMUM FUNCTION :
  • AUTO SHUT OFF :Approx. 15 mins
  • BACKLIGHT DISPLAY :
  • BEEPER :
  • LOW BATTERY INDICATOR :
  • DATA HOLD (HOLD) :
  • INPUT RESISTANCE:10MΩ
