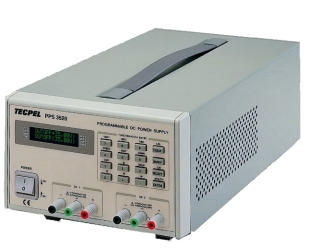

PPS-3520 GPIB Programmable DC Linear Power Supply Product ID: PPS-3520

Dual output 35V/ 2A

Model: PPS-3520

1.Standard GPIB Interface
2.Electronic Calibration via Front Panel or GPIB
3.Programmable over voltage and over current protection
4.Low ripple and noise output
5.Voltage controlled external programming capabilities
6.Output enable and disable
7.Remote sensing function
8.Programmable up/down fine tuning
9.Power-off memory

Category: DC Power Supplies
Certificate:CE
  • GPIB PPS 3520 Specifications:
    • DC Output Max Ratings : 70W per Channel
    • Output Voltage : Dual 0 to 35V
    • Output Current: Dual 0 to 2A
    • Programming Accuracy :
    • Voltage 0.05%+2LSB
    • Current 0.15%+5LSB
    • Programming Resolution :
    • Voltage 10mV
    • Current 0.6 mA
    • Operating temperature 0 to 50 deg C.
    • Ripple and noise : 1 mV rms
    • Ripple peak(p-p) : 10mV p-p
    • Read back Accuracy
    • Voltage 0.1%+2LSB
    • Current 0.2%+5LSB
    • Transient Recovery 50 micro sec. typical
    • Programming up/down speed 15ms/20ms typical
    • General
    • Power requirement : 115V , 230V AC+10%, 50/60Hz
    • Dimensions : 8.7""(W) x 3.4""(H) x 11.8""(L) (220x86x299mm)
    • Weight : 18lbs (8.16kgs)
    • Accessories : Test leads, power cord and owners manual
