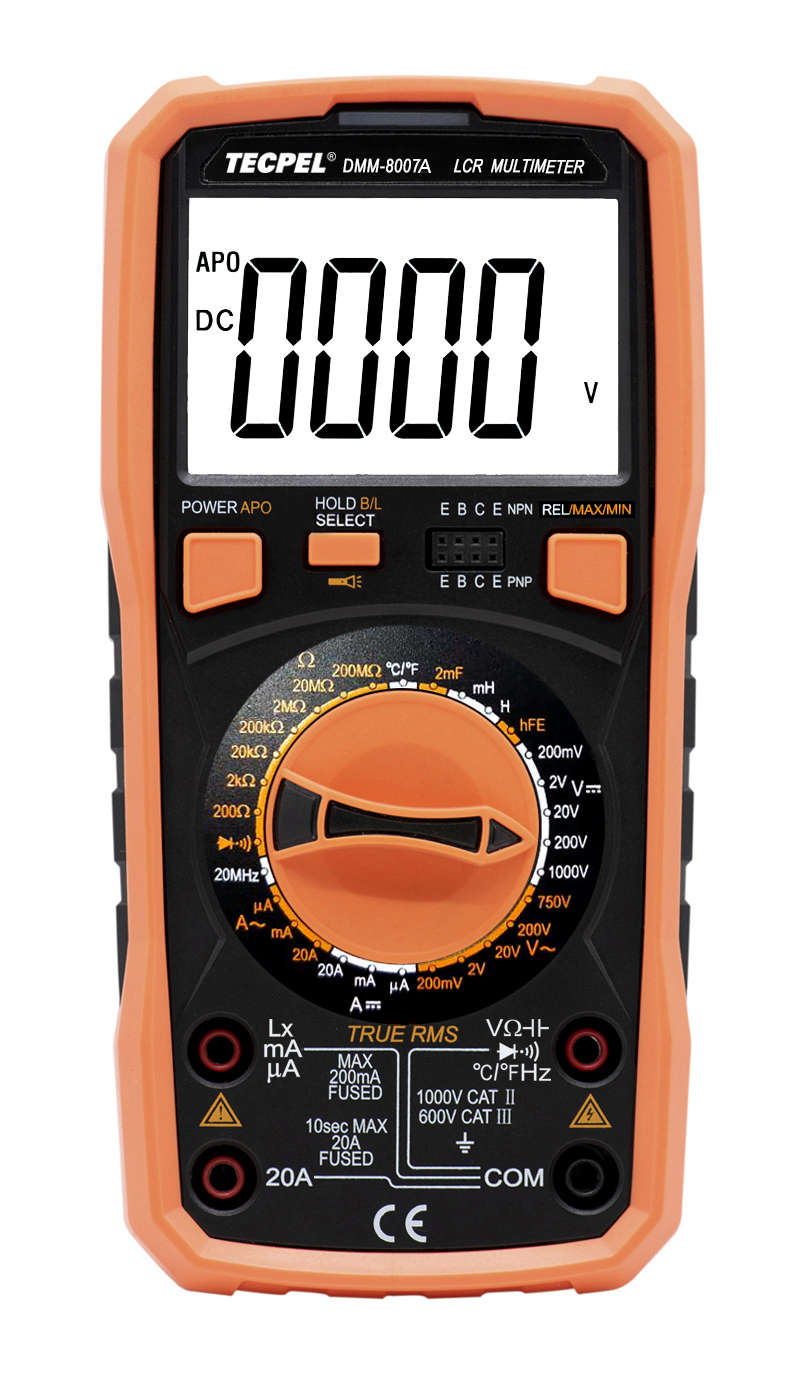

DMM-8007A Heavy Duty Digital Multimeter Product ID: DMM-8007A

Digital LCR resistance capacitance inductance measurement

This Tecpel handheld digital LCR multimeter is a rugged and good performance tester driven by battery.
It uses the LCD with 42mm-high figure to make the reading clear. Unit symbol
displaying, backlight and the function of overload protection make operation convenient and easy to use.
The instrument has the function of measuring DCV, ACV, DCA, ACA, resistance, capacitance, inductance, temperature and frequency, and diode, triode and continuity test. The instrument is built with dual-integral A/D converter as key feature and an excellent tool for electric, and engineer service.
3 1/2 digit Lare LCD display Multimeter
LCR measurement function : resistance capacitance inductance measurement
Diode/Crystal Measurement
Transistor dedicated jack
Screen backlight display
Automatic shutdown function
Safety protection circuit design

Category: Multimeters
Certificate:CE

 SPECIFICATION:
Basic Function

Range

Accuracy

DC Voltage

200mV/2V/20V/200V/1000V  ±(0.5%+3)

AC Voltage   200mV/2V/20V/200V/750V  ±(0.8%+5)

DC Current  2mA/20mA/200mA/20A   ±(0.8%+10)

AC Current   2mA/20mA/200mA/20A  ±(1.0%+15)

Resistance  200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ  ±(0.8%+3)

Inductance  2mH/20mH/200mH/2H/20H  ±(2.5%+30)

Capacitance   20nF/200nF/2uF/20uF/200uF  ±(2.5%+20)

Frequency  200kHz/2kHz/20kHz/200kHz/2000kHz/10MHz  ±(1.0%+10)

Celsius  (-20~1000)  ±(1.0%+5)

Fahrenheit  (0~1832)


Special Function
 Diode  √

Transistor test  √

Continuity buzzer  √

Low battery indication  √

Hold   Peak hold

Auto power off  √

Backlight  √

Function protection  √

Shockproof protection  √

Input impedance  10MΩ

Sampling rate   3 times/s

AC Frequency response  40~400Hz

Operation way  Manual range

Max. Display  1999

LCD size  70×50mm

Battery  9V (6F22)

Product color   Case: dark gray; Holster color : yellow

Product Net Weight   Approx:320g

Product Dimension  190×88.5×27.5mm

Standard Accessories Test leads/battery/instruction manual/TP01

temperature probe(with temperature function)

Standard inner packing   Color box

Standard Quantity Per Carton  30 pcs

Carton size  396×312×433mm

Standard Gross Weight

Approx:23kg
Features Range Accuracy
DC Voltage 200mV/2V/20V/200V/1000V ±(0.5%+3)
AC Voltage 200mV/2V/20V/200V/750V ±(0.8%+5)
DC Current 2mA/20mA/200mA/20A ±(0.8%+10)
AC Current 2mA/20mA/200mA/20A ±(1.0%+15)
Resistance 200Ω/2kΩ/20kΩ/200kΩ/2MΩ ±(0.8%+3)
20MΩ ±(1%+25)
200 MΩ ±(1%+25)
Inductance 2mH/20mH/200mH/2H/20H ±(2.5%+30)
Capacitance 20nF/200nF/2uF/20uF/200uF ±(3.5%+20)
Frequency 10/100/1K/10K/100K/1M/20MHz ±(1.0%+10)
Temperature -20~1000℃ ±(1.0%+5)
0~1832℉ ±(0.75%+5)


Features Range Accuracy
DC Voltage 200mV/2V/20V/200V/1000V ±(0.5%+3)
AC Voltage 200mV/2V/20V/200V/750V ±(0.8%+5)
DC Current 2mA/20mA/200mA/20A ±(0.8%+10)
AC Current 2mA/20mA/200mA/20A ±(1.0%+15)
Resistance 200Ω/2kΩ/20kΩ/200kΩ/2MΩ ±(0.8%+3)
20MΩ ±(1%+25)
200 MΩ ±(1%+25)
Inductance 2mH/20mH/200mH/2H/20H ±(2.5%+30)
Capacitance 20nF/200nF/2uF/20uF/200uF ±(3.5%+20)
Frequency 10/100/1K/10K/100K/1M/20MHz ±(1.0%+10)
Temperature -20~1000℃ ±(1.0%+5)
0~1832℉ ±(0.75%+5)
Special Functions
Diode/Transistor
Continuity Buzzer
Low battery
Hold
Auto power off
Backlight
Input Impedance 10MΩ
Sampling rate 3次/秒
AC frequency response 40~400Hz
Max. Display 1999
LCD Size 70×50mm
Battery 9V (6F22)
Weight 320g
Size 190×88.5×27.5mm
Accessory Test leads / Battery/
Thermocouple / Manual
Features Range Accuracy
DC Voltage 200mV/2V/20V/200V/1000V ±(0.5%+3)
AC Voltage 200mV/2V/20V/200V/750V ±(0.8%+5)
DC Current 2mA/20mA/200mA/20A ±(0.8%+10)
AC Current 2mA/20mA/200mA/20A ±(1.0%+15)
Resistance 200Ω/2kΩ/20kΩ/200kΩ/2MΩ ±(0.8%+3)
20MΩ ±(1%+25)
200 MΩ ±(1%+25)
Inductance 2mH/20mH/200mH/2H/20H ±(2.5%+30)
Capacitance 20nF/200nF/2uF/20uF/200uF ±(3.5%+20)
Frequency 10/100/1K/10K/100K/1M/20MHz ±(1.0%+10)
Temperature -20~1000℃ ±(1.0%+5)
0~1832℉ ±(0.75%+5)
Special Functions
Diode/Transistor
Continuity Buzzer
Low battery
Hold
Auto power off
Backlight
Input Impedance 10MΩ
Sampling rate 3次/秒
AC frequency response 40~400Hz
Max. Display 1999
LCD Size 70×50mm
Battery 9V (6F22)
Weight 320g
Size 190×88.5×27.5mm
Accessory Test leads / Battery/
Thermocouple / Manual
