DMM-124 / DMM-125 Low Cost Multimeter Product ID: DMM-124 / DMM-125

Low Cost Multimeter

Model DMM-124: DMM + Type K Temperature ;

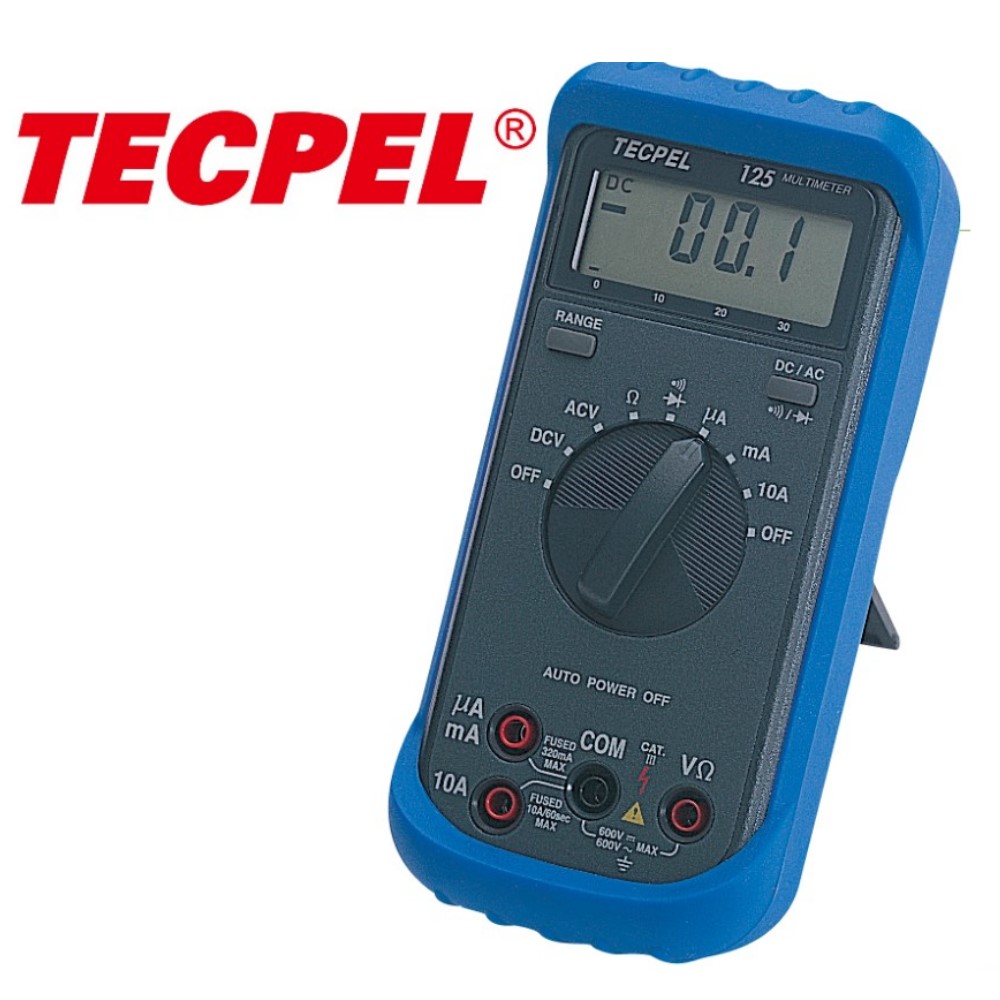

Model DMM-125 :Autoranging + Bar Graph.


A multimeter or a multi-tester, also known as a VOM (volt, ohm, milli-ammeter), is an electronic measuring instrument that combines several measurement functions in one unit. A typical multimeter can measure voltage, current, and resistance. Analog multimeters use a micro-ammeter with a moving pointer to display readings.

Category: Multimeters
Certificate:CE

  • DMM-124 Specifications:
    • DC Voltage Ranges: 200mV,2V,20V,600V, ±(1.2%+1dgt)
    • AC Voltage Ranges: 200mV,2V,600V ±(2.0%+4dgt)
    • Resistance Ranges: 200Ω,2kΩ,,20kΩ,,200kΩ,,2000kΩ,20MΩ,,2000MΩ,; ±(1.0~2.0%+4dgts) 200Ω~10MΩ
    • Capacitance Range: 20uF,200uF,2000uF,20mF
    • Temperature: -20℃~750℃,-4℉~1400℉,±(3.0%rdg+2℃) ,±(3.0%rdg+4℉)
    • Frequency Range: Auto ranging 10Hz to 40kHz,±(0.1%+2dgts)
    • Phase Indicator: Freq. 45Hz to 450Hz, Voltage:80V to 480V
    • Overload protection: Temperature:60VDC or 24V AC RMS
    • Capacitance:250V/1.5A 500V DC for other ranges.
    • Diode Test , Continuity Beeper--------- General Specifications ----------
    • Power Requirement: One 9V battery
    • Dimensions: 5.8""x2.8""x1.5"" (147x70x39mm)
    • Weight: 12 oz(340g)
    • Accessories: Test leads,holster, battery, K-type thermocouple and owners manual
  • DMM-125 Specifications:
    • DC Voltage Ranges: 320mV,3.2V,32V,320V,600V, ±(1.2%+1dgt)
    • AC Voltage Ranges: 3.2V,32V,320V,600V, ±(2.0%+4dgts)
    • DC Current Ranges: 320uA,3200uA,32mA,320mA,10A±(3.0%+3dgts)
    • AC Current Ranges: 320uA,3200uA,32mA,320mA,10A±(3.5%+4dgts)
    • Resistance Ranges: 320,3.2k,32k,320k,3.2M,32MΩ,±(1.5~5%+5dgts)
    • Overload protection: 500V for R, diode, continuity;0.5A and 10A fuses
    • Diode Test , Transistor Test (hFE), Continuity Beeper.
-----------------------------------General Specifications ------------------------------------------
  • Power Requirement: One 9V battery
  • Dimensions: 5.8""x2.8""x1.5"" (147x70x39mm)
  • Weight: 12.9 oz(370g)
  • Accessories: Test leads, holster, battery, and owners manual
DMM-124 Features
  • 3-1/2 Digit, 1.2% basic accuracy
  • 8 Functions, 23 ranges
  • DCV, ACV, and Ohms measurement
  • Capacitance 20μF~20mF
  • Frequency measurement 10Hz to 40kHz
  • Type K Temperature measurement –20℃~750℃, -4℉~1400℉
  • Phase indicator
  • Diode/Continuity test

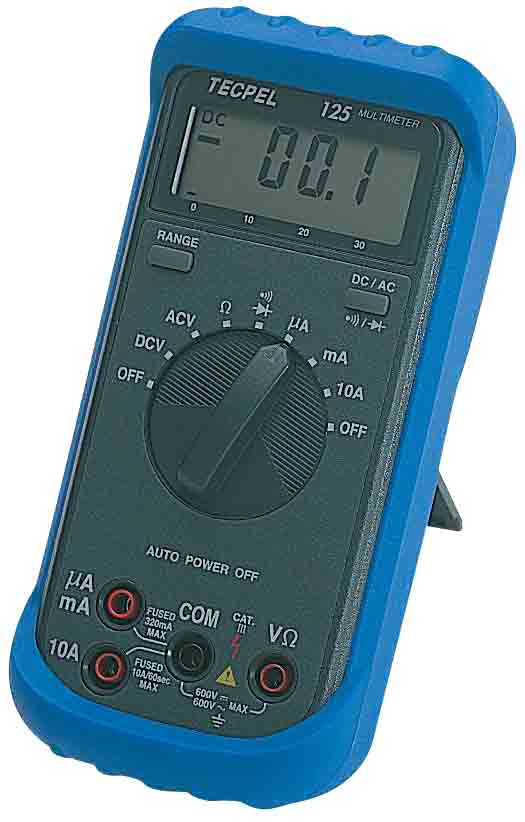

DMM-125 Features
  • 3200 Count, 1.2% basic accuracy
  • 7 Functions, 27 Ranges
  • Auto and manual ranging
  • 34 Segment fast bargraph
  • Auto Power OFF to save battery
  • 10 Amps and mA DC/AC fuse protected
