HVP-40M Analog High Voltage Meter / HVP-40DM Digital high voltage meter Product ID: HVP-40M/ HVP-40DM

Analog High Voltage Test Probe test meter

Model: HVP-40M Features:

DC 40KV CAT II Pollution 2

600M Ohm Impedance

25KV ± 2%, 40KV ± 3%

T.C. 200 ppm/°C.

Positive Polarity only.

Resolution 1KV

No Need power.

CE,   IEC1010

Certificate:CE
  • HVP-40M Analog High Voltag probe
    • SPECIFICATIONS ( 20 ± 5°C, RH < 80% )
    • ! WARNING !
    • Before taking any measurements, first connect the alligator clip of this probe to earth ground and make sure connection is electrically good.
    • Input impedance:600M Ohm
    • Maximum operation voltage:40KV DC , CAT II , Pollution 2
    • Polarity:Positive only
    • Display:Analog indicate
    • Accuracy:Factory calibrater 25KV ± 2%
    • FULL scale 40KV ± 3 %
    • Temperature Coefficient:Maximum loading Current:Maximum loading power:Voltage Range:40KV / 1 Range
    • Voltage resolution:1KV
    • Power source:Need not power
    • Operating temperature:0 °C ~ + 50 °C.
    • Storage temperature:- 20 °C ~ + 70 °C.
    • Ground lead length:90cm ( 35 "" )
    • Dimensions:420 L x 80 ø
    • Weight:360g

Other recomended digital High Voltage meter.

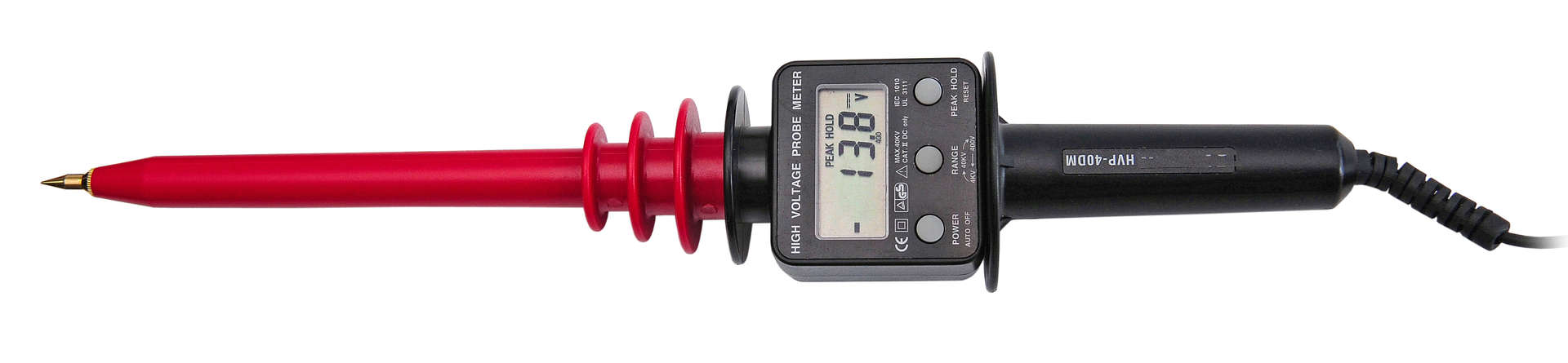

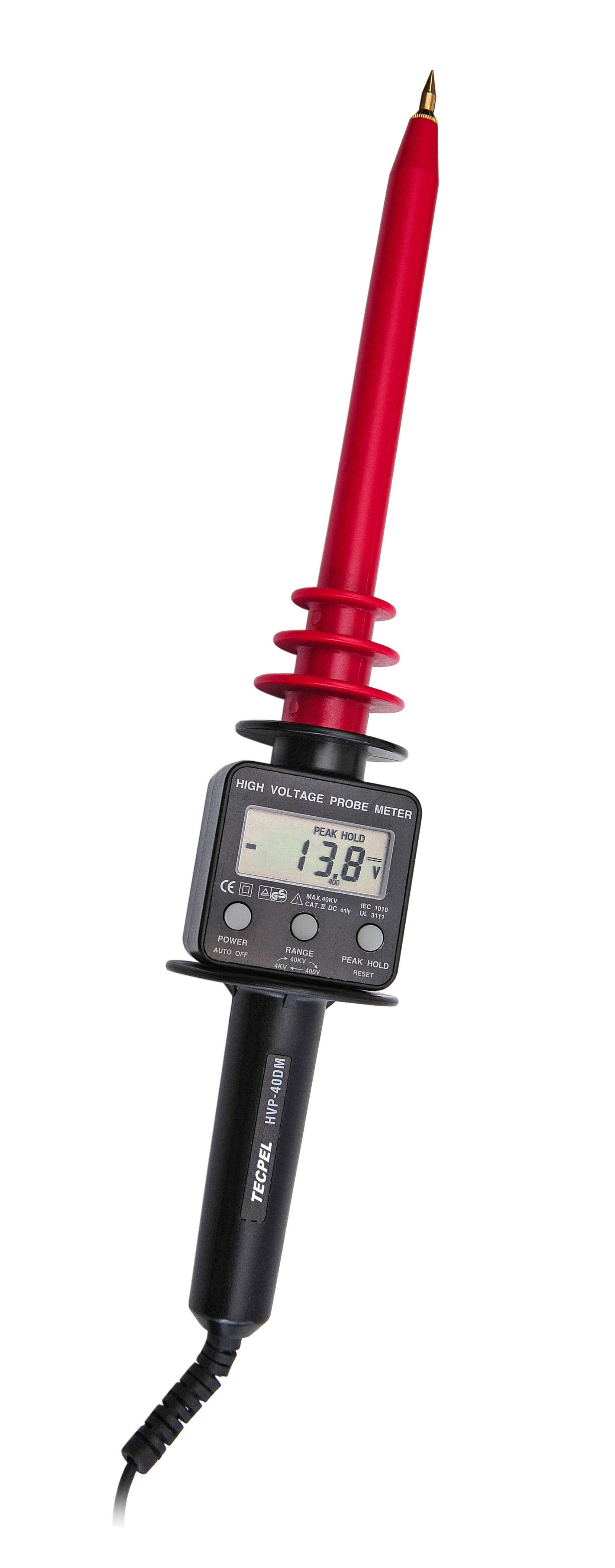

  • HVP-40DM Digital High Voltage meter
    SPECIFICATIONS ( 20 ± 5℃, RH < 80% )

    ! WARNING !

    Before taking any measurements, first connect the alligator clip of this probe to earth ground and make sure connection is electrically good.

    Input impedance:2000MΩ

    Maximum operation voltage:40KV DC , CAT II , Pollution 2

    Polarity:Positive / Negative

    Display:3999 digital, LCD

    Accuracy:Full Range ≦ 1.0% ± 2 digital

    Temperature Coefficient:≦ 100ppm / ℃

    Maximum loading Current:≦ 20μA

    Maximum loading power:≦ 0.8 watt

    Voltage Range:40KV / 4KV / 400V / 3 Range

    Voltage resolution:10V / 1V / 0.1V

    Power source:9V / 006P, IEC6L R1, NEDA 1604A

    Low battery Indicate:≦7.3V Auto Indicate

    Battery Life:About 200hr ( ALKALI )

    Auto power off:About 30 mim

    PEAK HOLD:≧ 400 ms

    Sampling:4 Sampling / sec

    Operating temperature:0 ℃ ~ + 50 ℃

    Storage temperature:- 20 ℃ ~ + 70 ℃

    Ground lead length:90cm ( 35 "" )

    Dimensions:420 L x 80ψ

    Weight:360g
