HVP-40M Digital High voltage meter Product ID: HVP-40M

Model: HVP-40DM ( 40KVDC, 2000MΩ , 3999LCD DMM )

Features:
DC 40KV CAT II Pollution 2.

 2000MΩ Impedance.

 3999 LCD display.

 Accuracy 1.0% full range.

 T.C. 100 ppm/oC

 400V/4KV/40KV, 3 range.

 Resolution 0.1V/1V/10V.

 PEAK HOLD, Auto power off.

 CE,  IEC1010





Add to Inquiry
Category： Oscilloscope Probes
Certificate：CE

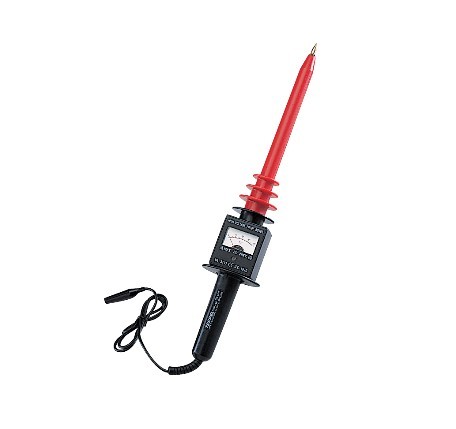

HVP-40M Analog High Voltag probe

  • SPECIFICATIONS ( 20 ± 5°C, RH < 80% )
  • ! WARNING !
  • Before taking any measurements, first connect the alligator clip of this probe to earth ground and make sure connection is electrically good.
  • Input impedance:600M Ohm
  • Maximum operation voltage:40KV DC , CAT II , Pollution 2
  • Polarity:Positive only
  • Display:Analog indicate
  • Accuracy:Factory calibrater 25KV ± 2%
  • FULL scale 40KV ± 3 %
  • Temperature Coefficient:Maximum loading Current:Maximum loading power:Voltage Range:40KV / 1 Range
  • Voltage resolution:1KV
  • Power source:Need not power
  • Operating temperature:0 °C ~ + 50 °C.
  • Storage temperature:- 20 °C ~ + 70 °C.
  • Ground lead length:90cm ( 35 " )
  • Dimensions:420 L x 80 ø
  • Weight:360g


Product ID: Tecpel HVP-40

Features:

DC 40KV CAT II Pollution 2

600M Ohm Impedance

25KV ± 2%, 40KV ± 3%

T.C. 200 ppm/°C.

Positive Polarity only.

Resolution 1KV

No Need power.

CE,   IEC1010
