D-177 Waterproof Digital Infrared thermometer with thermocouple probe HACCP
Infrared thermometer with a built-in contact thermocouple probe. This dual-sensor thermometer is very useful and requires both non-contact and contact temperature measurement. This model has food-grade HACCP requirements and is designed for foodservice applications.
SPECIFICATIONS
infrared probe Temperature range -60~350℃ -60~350℃ Operating temperature 0~50℃
Accuracy (measured at 15~35℃
Ambient temperature 25℃) ±0.6℃ Below -5: ±1℃ -5~65:±0.5℃ Above 65:±1%
Accuracy (ambient temperature 23±3℃) -60~0:±(1℃+0.1/degree) 0~65:±1℃ 65~350: ±1.5% of reading
Resolution (-9.9~199.9) 0.2℃ / other range 1℃
Emissivity Default 0.95, can be set from 0.10 to 1.00
Distance: SPOT 8:1 to target ratio
IP rating IP54
Display LCD screen
HACCP Indication Below 4°C/Above 60°C: Green Backlight 4~60℃: Red backlight
Power AAA 1.5V battery X2
Automatic shutdown about 30 seconds
Battery life about 18 hours of typical use
Dimensions 39.5x53.9x158mm
Weight 160 grams (including battery)
SPECIFICATIONS
infrared probe Temperature range -60~350℃ -60~350℃ Operating temperature 0~50℃
Accuracy (measured at 15~35℃
Ambient temperature 25℃) ±0.6℃ Below -5: ±1℃ -5~65:±0.5℃ Above 65:±1%
Accuracy (ambient temperature 23±3℃) -60~0:±(1℃+0.1/degree) 0~65:±1℃ 65~350: ±1.5% of reading
Resolution (-9.9~199.9) 0.2℃ / other range 1℃
Emissivity Default 0.95, can be set from 0.10 to 1.00
Distance: SPOT 8:1 to target ratio
IP rating IP54
Display LCD screen
HACCP Indication Below 4°C/Above 60°C: Green Backlight 4~60℃: Red backlight
Power AAA 1.5V battery X2
Automatic shutdown about 30 seconds
Battery life about 18 hours of typical use
Dimensions 39.5x53.9x158mm
Weight 160 grams (including battery)

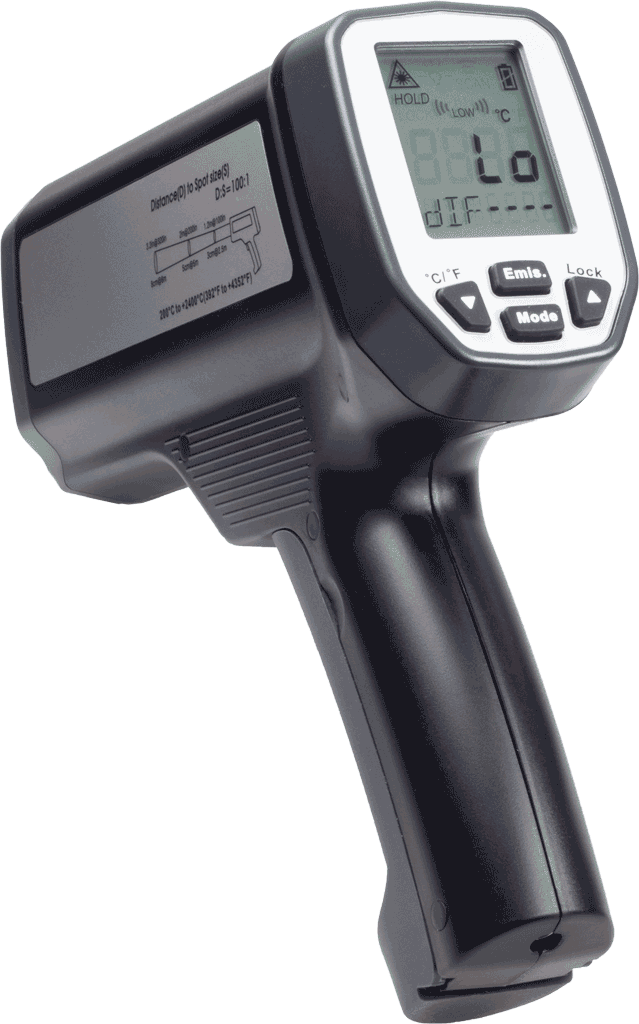

DIT-519 Industrial High temperature Thermometer 1000 degrees
Product Introduction
DIT-519 shortwave infrared thermometers can measure the characteristics of high-temperature objects and can be used to measure metal heating, ignoring the interference of low-temperature infrared light reflection around.
It can also measure the temperature of the object on the other side of the quartz glass which is suitable for industrial high-temperature heating measurement.
Dual Lasers Infrared Thermometer
Wide Measurement Range: Infrared up to 2400°C (4352°F)
High DS (Distance to Spot) Ratio 100:1
Dual Laser Points for the Target Spot Size
Under Memory Mode, record and display the specific temperature with emissivity
USB Function (optional)
Mini Thermocouple Socket up to 1400°C
Large LCD with Power Backlight
Min, Max, Dif, Ave, Lock Modes
Hi/Lo Temperature Audible Alarm
Laser and Backlight On/Off Control
Emissivity Adjustable from 0.1 to 1.00( Preset at 0.95)
°C/°F Switch Mode
Long Battery Life with two AA Batteries
Measurement Specification
Infrared Measuring Range :200 ~ 2,400 °C (392 ~ 4352 °F) ±2.0% or +2.0°C
Thermocouple Measuring Range :-64 ~ 1,400 °C (-83.2 ~ 2552 °F) ±1.0% or +1.0°C
Unit :°C / °F
Resolution :0.1 ( -83.2 ~ 999.9) display
D/S Ratio :100 : 1
Reacting time :1sec. can reach 95% value
Product Features
ADJUSTABLE EMISSIVITY (ε) :0.10 ~ 1.00
TEMPERATURE ALARM :
LASER POWER : lower 1mw wavelength (635 ~ 650 nm)
BACKLIGHT DISPLAY : White
LASER SWITCH :
MAXIMUM AND MINIMUM (MAX/MIN) :
AVERAGE VALUE (AVG) :
LOW BATTERY INDICATOR :
AUTO SHUT OFF:60 Sec.
Product Information
Working Environment:0~50°C / lower than 80%RH without dew。
Storage Environment:-10~40°C / lower than 70%RH without dew。
Elevation Limitation :Lower than 1,000 meters
Power Supply :1.5V AA battery x 2
Dimension :233.8 x 207.5 x 60 mm
Weight :550 g (battery including)
Accessory : Thermocouple wire, carrying case, magnet base, instruction manual.
DIT-519 shortwave infrared thermometers can measure the characteristics of high-temperature objects and can be used to measure metal heating, ignoring the interference of low-temperature infrared light reflection around.
It can also measure the temperature of the object on the other side of the quartz glass which is suitable for industrial high-temperature heating measurement.
Dual Lasers Infrared Thermometer
Wide Measurement Range: Infrared up to 2400°C (4352°F)
High DS (Distance to Spot) Ratio 100:1
Dual Laser Points for the Target Spot Size
Under Memory Mode, record and display the specific temperature with emissivity
USB Function (optional)
Mini Thermocouple Socket up to 1400°C
Large LCD with Power Backlight
Min, Max, Dif, Ave, Lock Modes
Hi/Lo Temperature Audible Alarm
Laser and Backlight On/Off Control
Emissivity Adjustable from 0.1 to 1.00( Preset at 0.95)
°C/°F Switch Mode
Long Battery Life with two AA Batteries
Measurement Specification
Infrared Measuring Range :200 ~ 2,400 °C (392 ~ 4352 °F) ±2.0% or +2.0°C
Thermocouple Measuring Range :-64 ~ 1,400 °C (-83.2 ~ 2552 °F) ±1.0% or +1.0°C
Unit :°C / °F
Resolution :0.1 ( -83.2 ~ 999.9) display
D/S Ratio :100 : 1
Reacting time :1sec. can reach 95% value
Product Features
ADJUSTABLE EMISSIVITY (ε) :0.10 ~ 1.00
TEMPERATURE ALARM :
LASER POWER : lower 1mw wavelength (635 ~ 650 nm)
BACKLIGHT DISPLAY : White
LASER SWITCH :
MAXIMUM AND MINIMUM (MAX/MIN) :
AVERAGE VALUE (AVG) :
LOW BATTERY INDICATOR :
AUTO SHUT OFF:60 Sec.
Product Information
Working Environment:0~50°C / lower than 80%RH without dew。
Storage Environment:-10~40°C / lower than 70%RH without dew。
Elevation Limitation :Lower than 1,000 meters
Power Supply :1.5V AA battery x 2
Dimension :233.8 x 207.5 x 60 mm
Weight :550 g (battery including)
Accessory : Thermocouple wire, carrying case, magnet base, instruction manual.

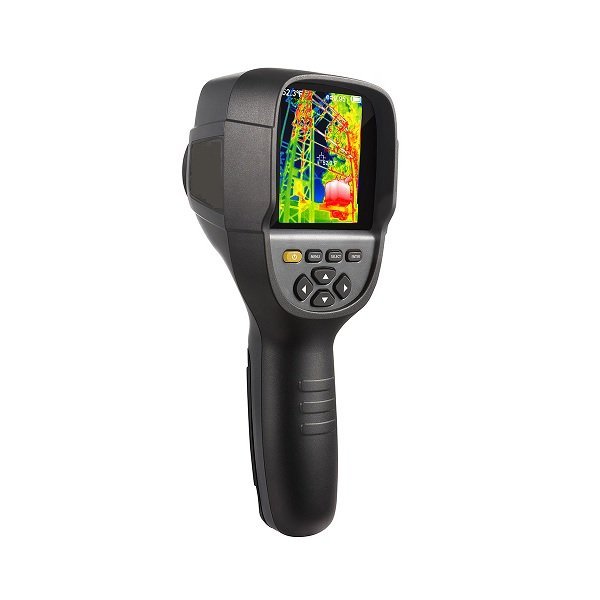

TIG-320 Infrared Thermal Imaging Camera
Infrared Thermal imager
TIG-320 infrared thermal imager adopts the latest technology, which can merge visible light image and infrared thermal image together. This infrared imaging device is advanced and professional, accurate and efficient to provide better quality and high-quality thermal image.
Product Introduction:
Built-in 3GB memory, check on computer or other equipment, widely used in fire fighting, archeology, transportation, agriculture, electronics manufacturing and other fields
Measurement Specification:
Temperature Ranges: -20 ~ 300 °C ( -4 ~ 572 F°)
Image Resolution: 320 x 240
Accuracy: ±(2%) or +2°C
Resoltuion: 0.07
Viewing angle / Focusing Distance: 56° x 42° / 0.15 meter
Wavelength Range: 8 ~ 14μm
Screen Update Rate: 9Hz
Product Features:
Screen: 3.2" full viewing angle TFT display
Display Color Palette: Rainbow / Iron Red / Cool / White Hot / Black Hot
Emissivity (ε): 0.01 ~ 1.00 (Adjustable)
Storage Capacity: 3G
Power Indication
Auto Power Off: 5 minutes / 20 minutes / no automatic shutdown
Product Information:
Working Environment: 0 ~ 45°C / lower than 80%RH Non-Condensing。
Storage Environment: -20 ~ 60°C / lower than 70%RH Non-Condensing。
Transmission Cable: Micro USB 2.0
Power : Rechargeable lithium battery(#18650)
Dimension: 90 × 105 ×223mm
Weight: 389g
Accessory: Waterproof protective cover, instruction manual.
TIG-320 infrared thermal imager adopts the latest technology, which can merge visible light image and infrared thermal image together. This infrared imaging device is advanced and professional, accurate and efficient to provide better quality and high-quality thermal image.
Product Introduction:
Built-in 3GB memory, check on computer or other equipment, widely used in fire fighting, archeology, transportation, agriculture, electronics manufacturing and other fields
Measurement Specification:
Temperature Ranges: -20 ~ 300 °C ( -4 ~ 572 F°)
Image Resolution: 320 x 240
Accuracy: ±(2%) or +2°C
Resoltuion: 0.07
Viewing angle / Focusing Distance: 56° x 42° / 0.15 meter
Wavelength Range: 8 ~ 14μm
Screen Update Rate: 9Hz
Product Features:
Screen: 3.2" full viewing angle TFT display
Display Color Palette: Rainbow / Iron Red / Cool / White Hot / Black Hot
Emissivity (ε): 0.01 ~ 1.00 (Adjustable)
Storage Capacity: 3G
Power Indication
Auto Power Off: 5 minutes / 20 minutes / no automatic shutdown
Product Information:
Working Environment: 0 ~ 45°C / lower than 80%RH Non-Condensing。
Storage Environment: -20 ~ 60°C / lower than 70%RH Non-Condensing。
Transmission Cable: Micro USB 2.0
Power : Rechargeable lithium battery(#18650)
Dimension: 90 × 105 ×223mm
Weight: 389g
Accessory: Waterproof protective cover, instruction manual.
DIT-516 Digital High temperature Thermometer 1000 degrees (New version -32C~ 1100 C.)
For professionals who need to diagnose heating and ventilation problems, the Tecpel® Infrared Thermometer offers simple, quick, and accurate surface temperature measurement at the trigger of a button . This thermometer is safer than traditional contact thermocouple thermometer.
Designed with single point laser sighting, this rugged, compact and non-contact Tecpel infrared thermometer takes accurate readings in less than a second. It also offers LCD back-light for visibility in the dark, a broad temperature range, and a dual display for both current and maximum measurements to perform preventative checking of electrical motors and equipment, trouble-shooting dangerous oven steam traps, quickly check fuses or circuit breakers for overheating problem without physical contacts. It’s your best choice in price and quality.
Designed with single point laser sighting, this rugged, compact and non-contact Tecpel infrared thermometer takes accurate readings in less than a second. It also offers LCD back-light for visibility in the dark, a broad temperature range, and a dual display for both current and maximum measurements to perform preventative checking of electrical motors and equipment, trouble-shooting dangerous oven steam traps, quickly check fuses or circuit breakers for overheating problem without physical contacts. It’s your best choice in price and quality.

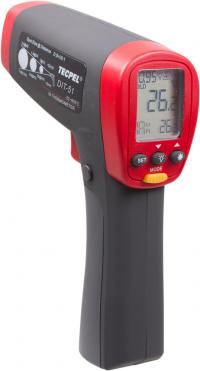

DIT-517 Infrared Thermometer, High temperature Thermometer 1000 degrees
For professionals who need to diagnose heating and ventilation problems, the Tecpel® Infrared Thermometer offers simple, quick, and accurate surface temperature measurement at the trigger of a button . This thermometer is safer than traditional contact thermocouple thermometer.
Designed with single point laser sighting, this rugged, compact and non-contact tecpel infrared thermometer takes accurate readings in less than a second. It also offers LCD backlight for visibility in the dark, a broad temperature range, and a dual display for both current and maximum measurements to perform preventative checking of electrical motors and equipment, trouble-shooting dangerous oven steam traps, quickly check fuses or circuit breakers for overheating problem without physical contacts. It’s your best choice in price and quality.
Designed with single point laser sighting, this rugged, compact and non-contact tecpel infrared thermometer takes accurate readings in less than a second. It also offers LCD backlight for visibility in the dark, a broad temperature range, and a dual display for both current and maximum measurements to perform preventative checking of electrical motors and equipment, trouble-shooting dangerous oven steam traps, quickly check fuses or circuit breakers for overheating problem without physical contacts. It’s your best choice in price and quality.

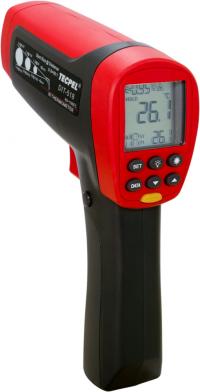

DIT-518 Infrared Thermometer, industrial High temperature Thermometer 1000 degrees
Designed with single point laser sighting, this rugged, compact and non-contact tecpel infrared thermometer takes accurate readings in less than a second. It also offers LCD backlight for visibility in the dark, a broad temperature range, and a dual display for both current and maximum measurements to perform preventative checking of electrical motors and equipment, trouble-shooting dangerous oven steam traps, quickly check fuses or circuit breakers for overheating problem without physical contacts. It’s your best choice in price and quality.
For professionals who need to diagnose heating and ventilation problems, the Tecpel® Infrared Thermometer offers simple, quick, and accurate surface temperature measurement at the trigger of a button . This thermometer is safer than traditional contact thermocouple thermometer, Infrared thermometers measure the temperature of the object is available from by emitting a black body radiation energy (typically infrared). They are sometimes referred to as an infrared laser thermometer, which is commonly used to help laser infrared thermometer (non-contact thermometer) temperature measurements from a distance, aim outline the scope of the subject matter of the measured body location. Through the temperature on the subject matter or object on the emitted infrared energy, achieved considerable quantities, the temperature can be quickly converted out via the infrared thermometer.
For professionals who need to diagnose heating and ventilation problems, the Tecpel® Infrared Thermometer offers simple, quick, and accurate surface temperature measurement at the trigger of a button . This thermometer is safer than traditional contact thermocouple thermometer, Infrared thermometers measure the temperature of the object is available from by emitting a black body radiation energy (typically infrared). They are sometimes referred to as an infrared laser thermometer, which is commonly used to help laser infrared thermometer (non-contact thermometer) temperature measurements from a distance, aim outline the scope of the subject matter of the measured body location. Through the temperature on the subject matter or object on the emitted infrared energy, achieved considerable quantities, the temperature can be quickly converted out via the infrared thermometer.
DIT-515K Laser Infrared Thermometer with K type Thermocouple ultimate tools for temperature measurements.
Tecpel DIT-515K is the ultimate tools for temperature measurements.
It contains 2 most reliable temperature sensors:
1) Non-contact Micro Machining Thermopile
2) K-type thermocouple socket
Such an arrangement can fulfill most of temperature measurement requirements:
Use the Non-contact for instant; not-reachable situation.
Use the thermocouple for high precision; non-surface situation.
This thermometer also comes with an ultra long battery life (8days for Alkaline battery), no 9V battery,
It uses the most affordable and available AAA size battery.
Learn Emissivity with dit-515k thermometer. Emissivity is a difficult concept for general user to catch; For dit-515k thermometer , it's easy to get. Use the contact thermometer to get the true temperature.
Then, use the Non-contact to get the surface temperature. Adjust the Emissivity until they are the same.
Next time, use the correct Emissivity for that object. No more guess work, no more looking up on Emissivity Table.
It contains 2 most reliable temperature sensors:
1) Non-contact Micro Machining Thermopile
2) K-type thermocouple socket
Such an arrangement can fulfill most of temperature measurement requirements:
Use the Non-contact for instant; not-reachable situation.
Use the thermocouple for high precision; non-surface situation.
This thermometer also comes with an ultra long battery life (8days for Alkaline battery), no 9V battery,
It uses the most affordable and available AAA size battery.
Learn Emissivity with dit-515k thermometer. Emissivity is a difficult concept for general user to catch; For dit-515k thermometer , it's easy to get. Use the contact thermometer to get the true temperature.
Then, use the Non-contact to get the surface temperature. Adjust the Emissivity until they are the same.
Next time, use the correct Emissivity for that object. No more guess work, no more looking up on Emissivity Table.

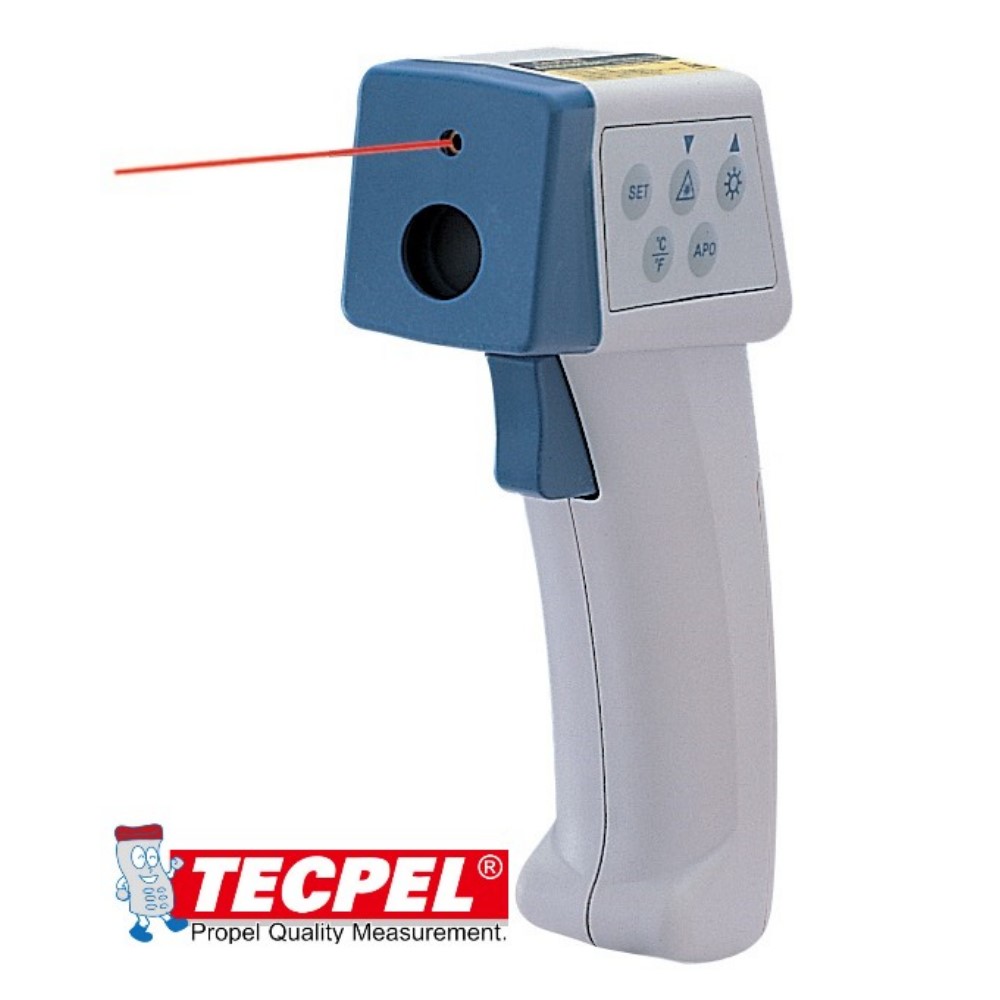

DIT-513 / DIT-515 Infrared Thermometer with Laser Mark
Infrared Thermometer
Features Model: DIT-513
1.CE-Mark approval
2.Portability and simplicity one-hand operation
3.Display Back-Light feature
4.Auto DATA HOLD function after releasing MEASURE Button
5. °C/ °F user-selective
6. Fixed emissivity (e) 0.95 for most substances
7. Auto power off function
8. Use thermopile detection sensor (6-14 micro m)
9. Attached PVC cover
Infrared thermometer Model: DIT-515
Features:
1. CE-Mark approval
2. Portability and simplicity one-hand operation
3. Display Back-Light feature
4. Auto DATA HOLD function after releasing MEASURE Button
5. °C/ °F user-selective
6. With MAX, MIN record function
7. With SET, Hi, Lo limits beeper function
8. Adjustable emissivity (e) 0.1 to 1.00
9. Auto power off function
10.Use thermopile detection sensor (6-14 micro m)
11.Attached PVC cover
Features Model: DIT-513
1.CE-Mark approval
2.Portability and simplicity one-hand operation
3.Display Back-Light feature
4.Auto DATA HOLD function after releasing MEASURE Button
5. °C/ °F user-selective
6. Fixed emissivity (e) 0.95 for most substances
7. Auto power off function
8. Use thermopile detection sensor (6-14 micro m)
9. Attached PVC cover
Infrared thermometer Model: DIT-515
Features:
1. CE-Mark approval
2. Portability and simplicity one-hand operation
3. Display Back-Light feature
4. Auto DATA HOLD function after releasing MEASURE Button
5. °C/ °F user-selective
6. With MAX, MIN record function
7. With SET, Hi, Lo limits beeper function
8. Adjustable emissivity (e) 0.1 to 1.00
9. Auto power off function
10.Use thermopile detection sensor (6-14 micro m)
11.Attached PVC cover

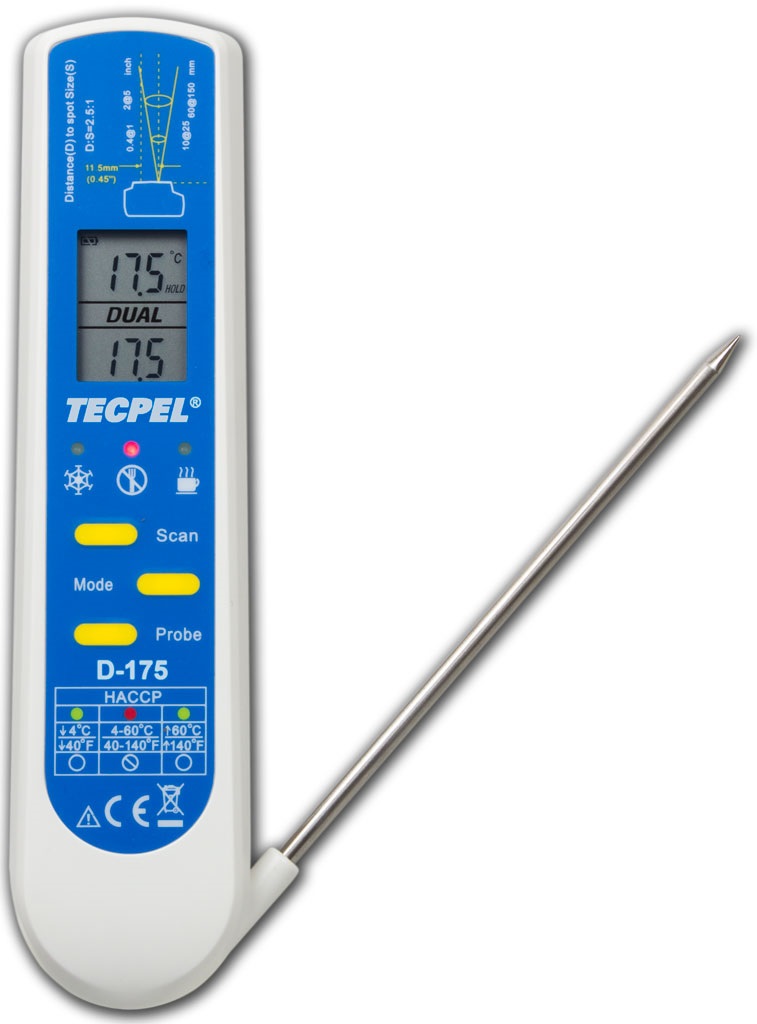

D-175 Infrared thermometer for Food Cooking
Infrared thermometer Food
Tecpel D-175 Feature
●Zone Display: Clearly indicate the Food is under a dangerous(4~60°C/40~140°F) or safe zone
●2in1 design: Infrared + Foldable Thermocouple Probe
●IP65 Protection
●Bright White LED as pointer
●Ultra Thin Design, fit into shirt pocket
●NIST traceable :Certificate of Calibration Available (COC Optional)
●IR-SoC technology (Infrared System on Chip) and Batch Calibration technology drive the dimensions and cost to the lowest limits
●Max; Min and Lock modes
●Retractable probe
●Dual Display
●Auto Power off
Tecpel D-175 Feature
●Zone Display: Clearly indicate the Food is under a dangerous(4~60°C/40~140°F) or safe zone
●2in1 design: Infrared + Foldable Thermocouple Probe
●IP65 Protection
●Bright White LED as pointer
●Ultra Thin Design, fit into shirt pocket
●NIST traceable :Certificate of Calibration Available (COC Optional)
●IR-SoC technology (Infrared System on Chip) and Batch Calibration technology drive the dimensions and cost to the lowest limits
●Max; Min and Lock modes
●Retractable probe
●Dual Display
●Auto Power off
