(DMM-135A) Palm Auto-ranging Digital Multimeter

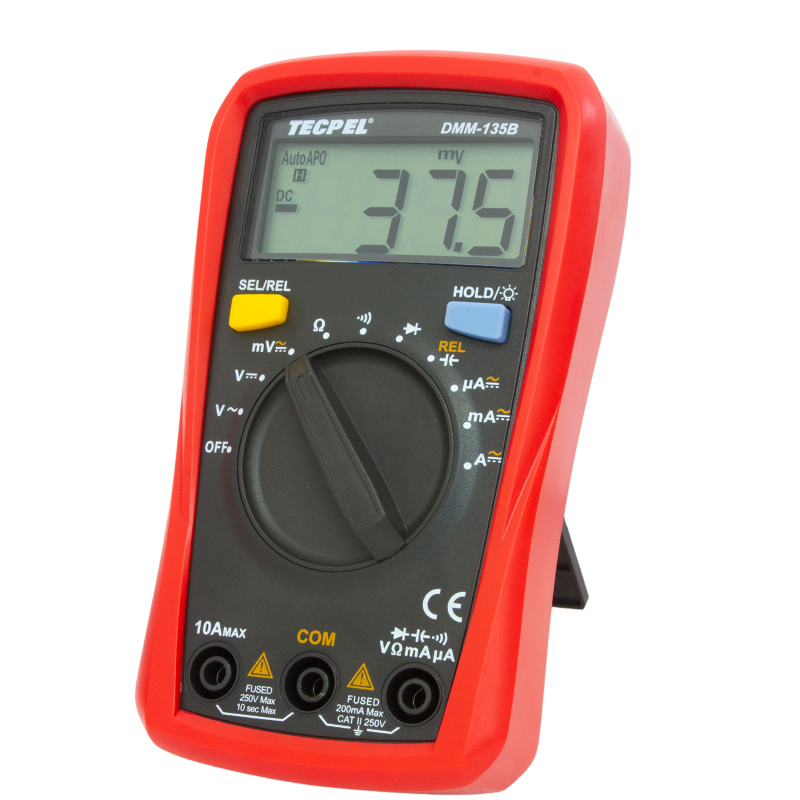

DMM-135B Palm Auto-ranging Digital Multimeter Product ID: DMM-135B

DMM-135B hand-held 3 1/2 digit electric meter has the function of automatically judging the measurement range, with stable performance and high precision, and is an ideal tool for the maintenance and repair of circuit / electric equipment. It is an ideal multi-function meter for beginners and users who often need to measure electricity.

Add to Inquiry

Download

Category： Digital handheld Multimeters, 4.5 digit , TRMS,

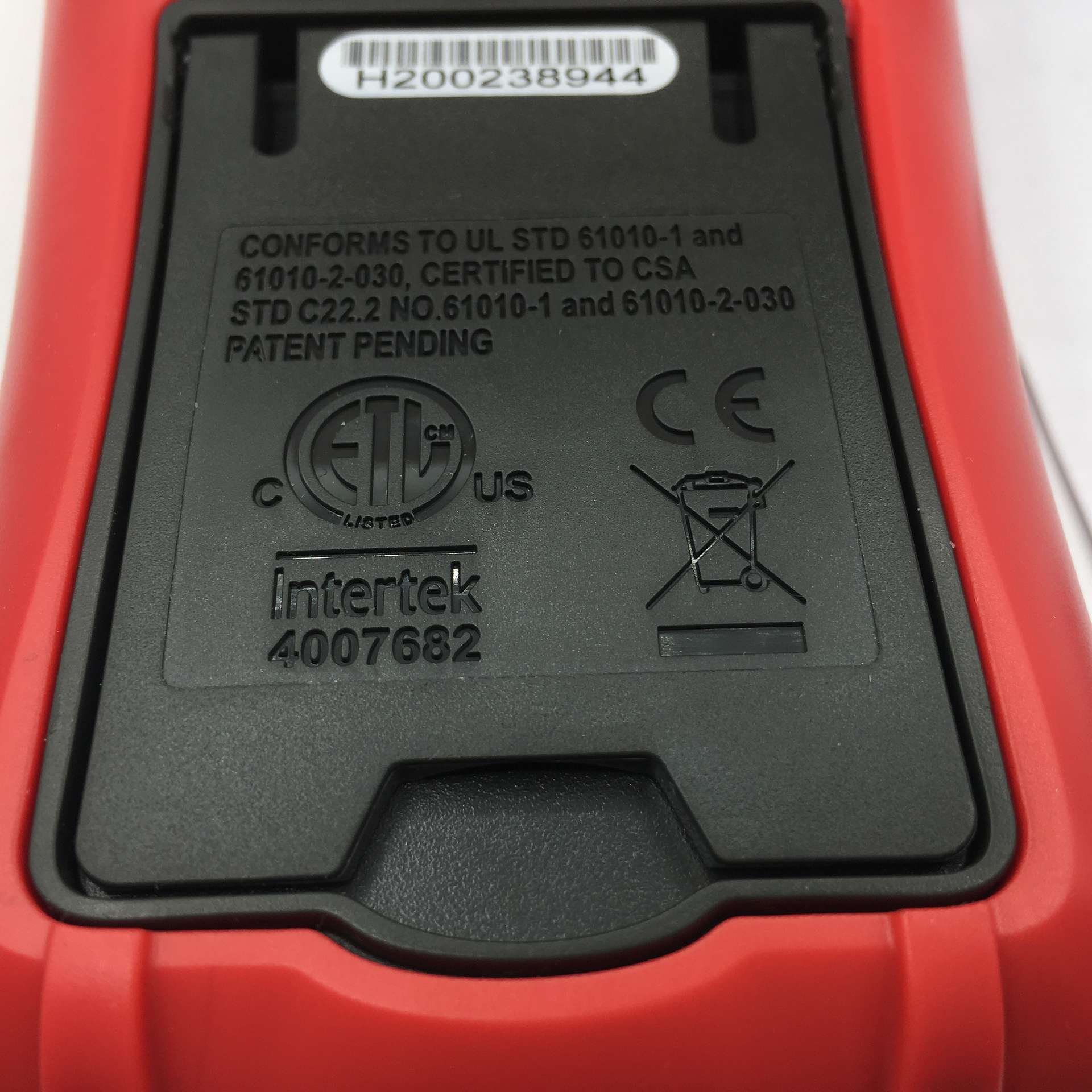

Certificate：CE

Product Brief

DMM-135B has the function of automatic range measurement. After the measurement range of voltage, current and resistance is selected, the meter will automatically judge the range of input power and display the measurement reading value of the range.

Measurement specifications

Display shown : 1,999 Count
DC voltage : 200.0m / 2000m / 20.00V / 200.0 / 250 V ±(0.7%+3)
AC voltage : 200.0m / 2.000 / 20.00 ／ 200.0 / 250V ±(1.2%+3)
Direct current : 200.0μ / 2000μ / 20.00m / 200.0m A ±(1.0%+2) ; 2.000A / 10A ±(1.2%+5)
DC current : 200.0μ / 2000μ / 20.00m / 200.0m A ±(1.2%+3) ; 2.000A / 10A ±(1.5%+5)
Resistance(Ω) : 200.0 / 2000 / 20.00k / 200.0k Ω ±(0.8%+2) ; 20.00MΩ ±(1.2%+3) ; 200.0MΩ ±(5%+10)
Capacitance(F) : 2.000n / 20.00n / 200.0n / 2.000μ / 20.00μ / 200.0μ F ±(4%+8) ; 2.000m F ±(10%)

Product Features

Auto-shutdown :
Automatic :
Backlit :
Beep : 0.1Ω
Dipole : 0.001V
Hold :
Protection : CAT II 250V

Product information

Operating environment : -10 ~ 40 ° C / below 75% RH without condensation
Storage environment : 0 to 50 ° C / below than 75%RH and not exposed
Altitude limit : less than 1,000 meters
Power : DC 1.5V battery (AAA) x2
Size : 134 × 77 × 47 mm
Weight : approx. 206 grams (including battery)

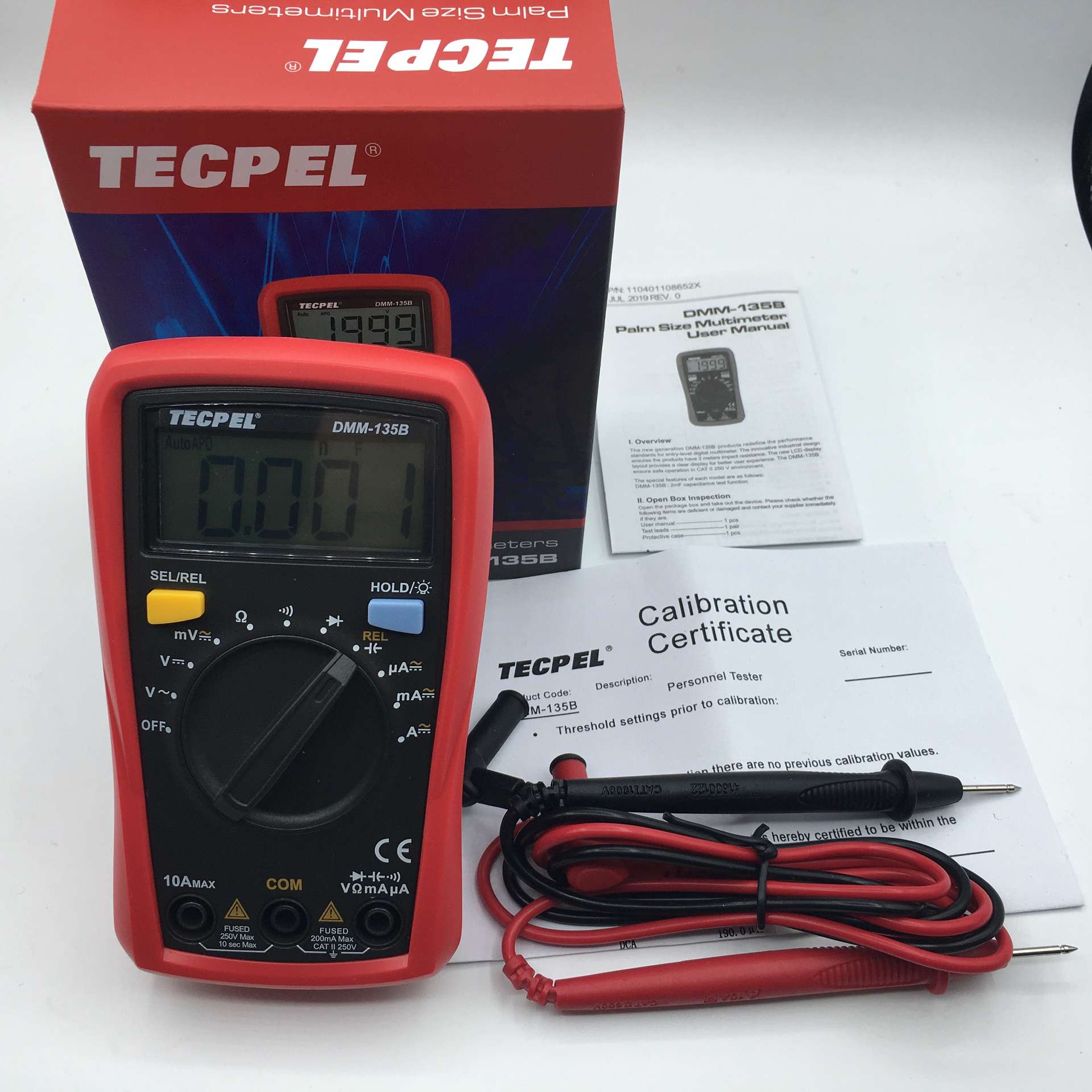

Accessories : test leads, battery, instruction manual

DMM-135A Features:
1. 3 3/4 Digits, 3,999 Counts
2. 8 functions, 21 ranges
3. Continuity Beeper
4. Diode Test
5. Auto Ranging
