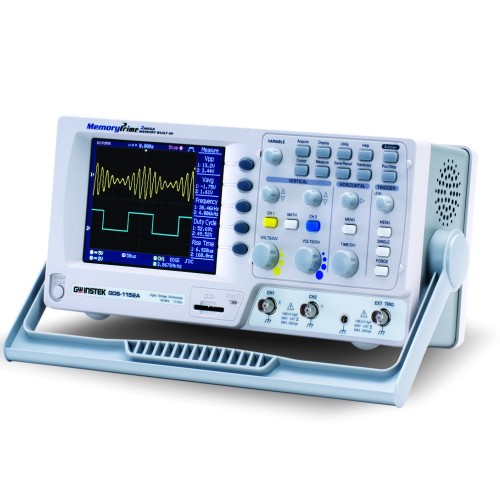

GDS-1152A Oscilloscope 150MHz Digital Storage Product ID: GDS-1152A
150MHz Digital Storage Oscilloscope
The GDS-1000A series provide a unique solution. Operating at 60, 100 or 150 MHz with a real-time sampling rate of 1GSa/s, the GDS-1000A employs MemoryPrime technology. Using MemoryPrime technology, the GDS-1000A is able to overcome the problems associated with memory constraints. Unlike traditional DSOs, high sample rates can be maintained over longer periods of time, without effecting performance.
Coupled with the high resolution, 5.6” color TFT display, SD memory card support, user-friendly interface and USB remote control make the GDS-1000A series compellingly feature-rich. Furthermore, the GDS-1000A series provide a lifetime warranty program!
Oscilloscope GDS-1152A
SPECIFICATIONS
*Bandwidth DC~150MHz(-3dB)
*Rise TimeSensitivity 2mV/div ~ 10V/div (1-2-5 increments)
*Accuracy : ±(3% x |Readout| + 0.1 div + 1mV)
*Input Coupling AC, DC & Ground
*Input Impedance: 1MΩ±2%, ~15pF
*Polarity Normal & Invert
*Maximum Input: 300V (DC+AC peak), CATII
*Waveform Signal Process + , - , x, FFT, FFTrms
*Offset Range:
2mV/div ~ 50mV/div : ±0.4V
10mV/div ~ 500mV/div : ±4V
1V/div ~ 10V/div : ±40V
*Bandwidth Limit 20MHz (-3dB)
vModes: Auto, Normal, Single, TV, Edge, Pulse Width
*Coupling AC , DC , LF rej. , HF rej. , Noise rej.
*Sensitivity DC ~ 25MHz: Approx. 0.5div or 5mV;
*25MHz ~ 150MHz: Approx. 1.5div or 15mV
*Sensitivity DC ~ 25MHz : ~ 50mV ; 25M ~ 150MHz : ~100mV
*Input Impedance 1MΩ±2% , ~ 15pF
*Maximum Input 300V (DC AC peak) , CATII
*Modes Main, Window, Window Zoom, Roll, X-Y
*Accuracy ±0.01%
*Pre-Trigger 10 div maximum
*Post-Trigger 1000 div
*X-Y MODE
*X-Axis Input Channel 1
*Y-Axis Input
*Channel 2
*Phase Shift ±3°at 100kHz
*Equivalent Sample Rate 25GSa/s maximum
*Vertical Resolution 8 Bits
*2 Mega Points maximum
*Acquisition Mode
*Normal, Peak Detect, Average
*Peak Detection
*10ns (500ns/div ~ 10s/div)
*Average< 2 , 4 , 8 , 16 , 32 , 64 , 128 , 256
*Time Measurement Freq ,Period ,Rise Time ,Fall Time ,Positive Width ,Negative Width ,Duty Cycle
*Cursors Measurement Voltage difference between cursors (V)
*Time difference between cursors (T)
*Auto Counter
*Resolution : 6 digits
*Accuracy: 2%
*Signal Source: All available trigger source except the Video trigger mode
*Duty Cycle Range 5% ~ 95%, 5%/STEP
*Save Setup Up to 15 sets of measurement conditions
*Save Waveform 15 sets of waveform
*Display Resolution 234(Vertically) x 320(Horizontally) Dots
*Display Graticule 8 x 10 divisions
*Display Brightness Adjustable
*SD Card Slot Image (BMP), waveform data (CSV), and setup (SET)
*Onscreen Help Available
*Power Cord x 1
*GTP-150A-2 Probe(10:1/1:1) x 2
SPECIFICATIONS
- VERTICAL
*Bandwidth DC~150MHz(-3dB)
*Rise TimeSensitivity 2mV/div ~ 10V/div (1-2-5 increments)
*Accuracy : ±(3% x |Readout| + 0.1 div + 1mV)
*Input Coupling AC, DC & Ground
*Input Impedance: 1MΩ±2%, ~15pF
*Polarity Normal & Invert
*Maximum Input: 300V (DC+AC peak), CATII
*Waveform Signal Process + , - , x, FFT, FFTrms
*Offset Range:
2mV/div ~ 50mV/div : ±0.4V
10mV/div ~ 500mV/div : ±4V
1V/div ~ 10V/div : ±40V
*Bandwidth Limit 20MHz (-3dB)
- TRIGGER
vModes: Auto, Normal, Single, TV, Edge, Pulse Width
*Coupling AC , DC , LF rej. , HF rej. , Noise rej.
*Sensitivity DC ~ 25MHz: Approx. 0.5div or 5mV;
*25MHz ~ 150MHz: Approx. 1.5div or 15mV
- EXT TRIGGER
*Sensitivity DC ~ 25MHz : ~ 50mV ; 25M ~ 150MHz : ~100mV
*Input Impedance 1MΩ±2% , ~ 15pF
*Maximum Input 300V (DC AC peak) , CATII
- HORIZONTAL
*Modes Main, Window, Window Zoom, Roll, X-Y
*Accuracy ±0.01%
*Pre-Trigger 10 div maximum
*Post-Trigger 1000 div
*X-Y MODE
*X-Axis Input Channel 1
*Y-Axis Input
*Channel 2
*Phase Shift ±3°at 100kHz
- SIGNAL ACQUISITION
*Equivalent Sample Rate 25GSa/s maximum
*Vertical Resolution 8 Bits
*2 Mega Points maximum
*Acquisition Mode
*Normal, Peak Detect, Average
*Peak Detection
*10ns (500ns/div ~ 10s/div)
*Average< 2 , 4 , 8 , 16 , 32 , 64 , 128 , 256
- CURSORS AND MEASUREMENT
*Time Measurement Freq ,Period ,Rise Time ,Fall Time ,Positive Width ,Negative Width ,Duty Cycle
*Cursors Measurement Voltage difference between cursors (V)
*Time difference between cursors (T)
*Auto Counter
*Resolution : 6 digits
*Accuracy: 2%
*Signal Source: All available trigger source except the Video trigger mode
- ADJUSTABLE PROBE COMPENSATION SIGNAL
*Duty Cycle Range 5% ~ 95%, 5%/STEP
- CONTROL PANEL FUNCTION
*Save Setup Up to 15 sets of measurement conditions
*Save Waveform 15 sets of waveform
- DISPLAY
*Display Resolution 234(Vertically) x 320(Horizontally) Dots
*Display Graticule 8 x 10 divisions
*Display Brightness Adjustable
- INTERFACE
*SD Card Slot Image (BMP), waveform data (CSV), and setup (SET)
- POWER SOURCE
- MISCELLANEOUS
*Onscreen Help Available
- ACCESSORIES
*Power Cord x 1
*GTP-150A-2 Probe(10:1/1:1) x 2
- DIMENSIONS &WEIGHT
Oscilloscope GDS-1152A FEATURES
- 150MHz Bandwidths
- 1 GSa/s Real-Time Sample Rates Maximum, 25GSa/s Equivalent-Time
- 2Mega Point Record Length
- 2mV~10V Vertical Scale
- 1ns~50s Horizontal Range
- Up to 27 Automatic Measurements
- Versatile Math Functions + , -, x, FFT, FFTrms
- 5.6"" TFT LCD Display
- USB Interface & SD Card Supported
- Multi-Language Support on Operation Menu & On-Screen Help
