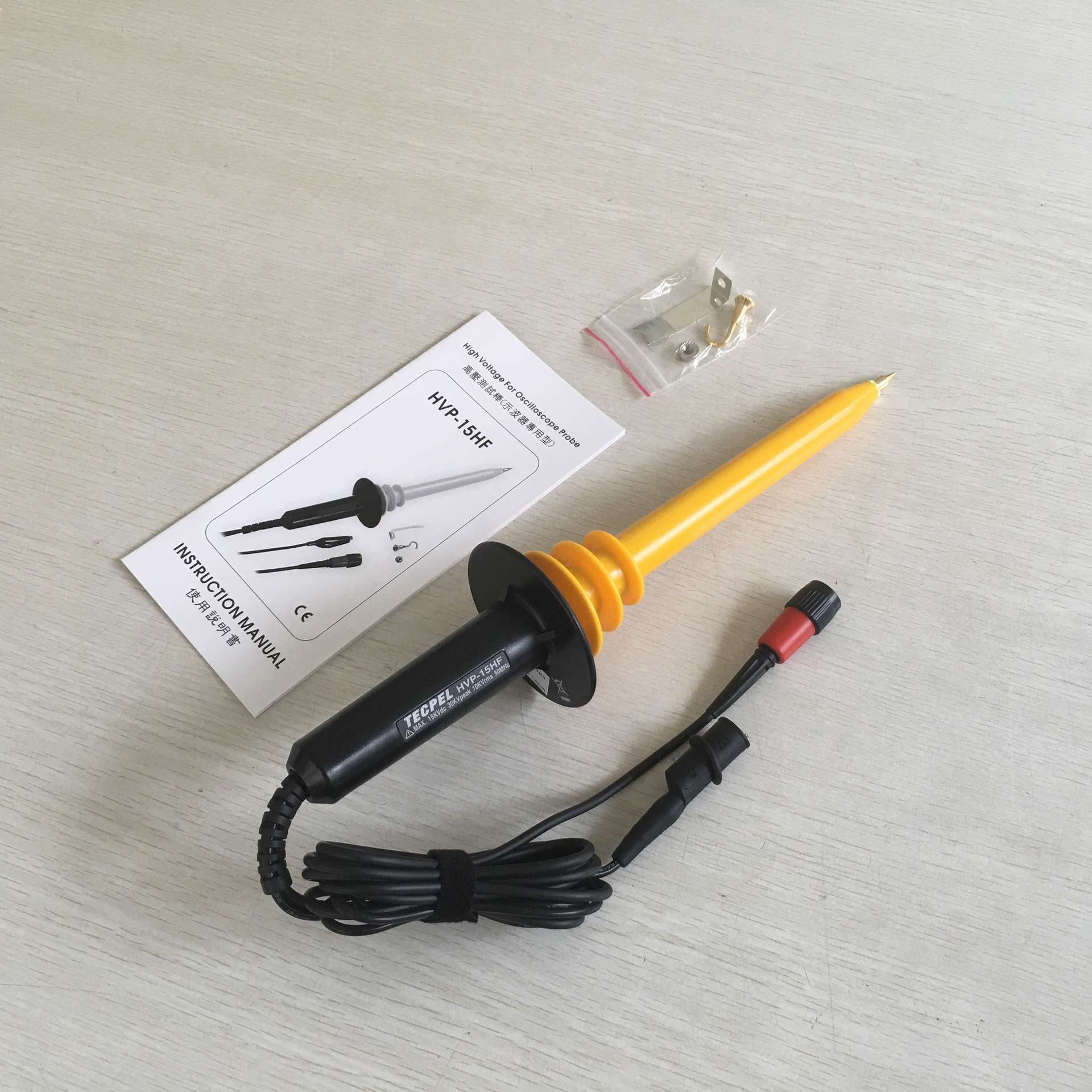

HVP-15HF / DP-25 High Voltage Oscilloscope Probe / Differential Probe Product ID: HVP-15HF / DP-25

High Voltage & High Frequency Oscillosocpe Probe

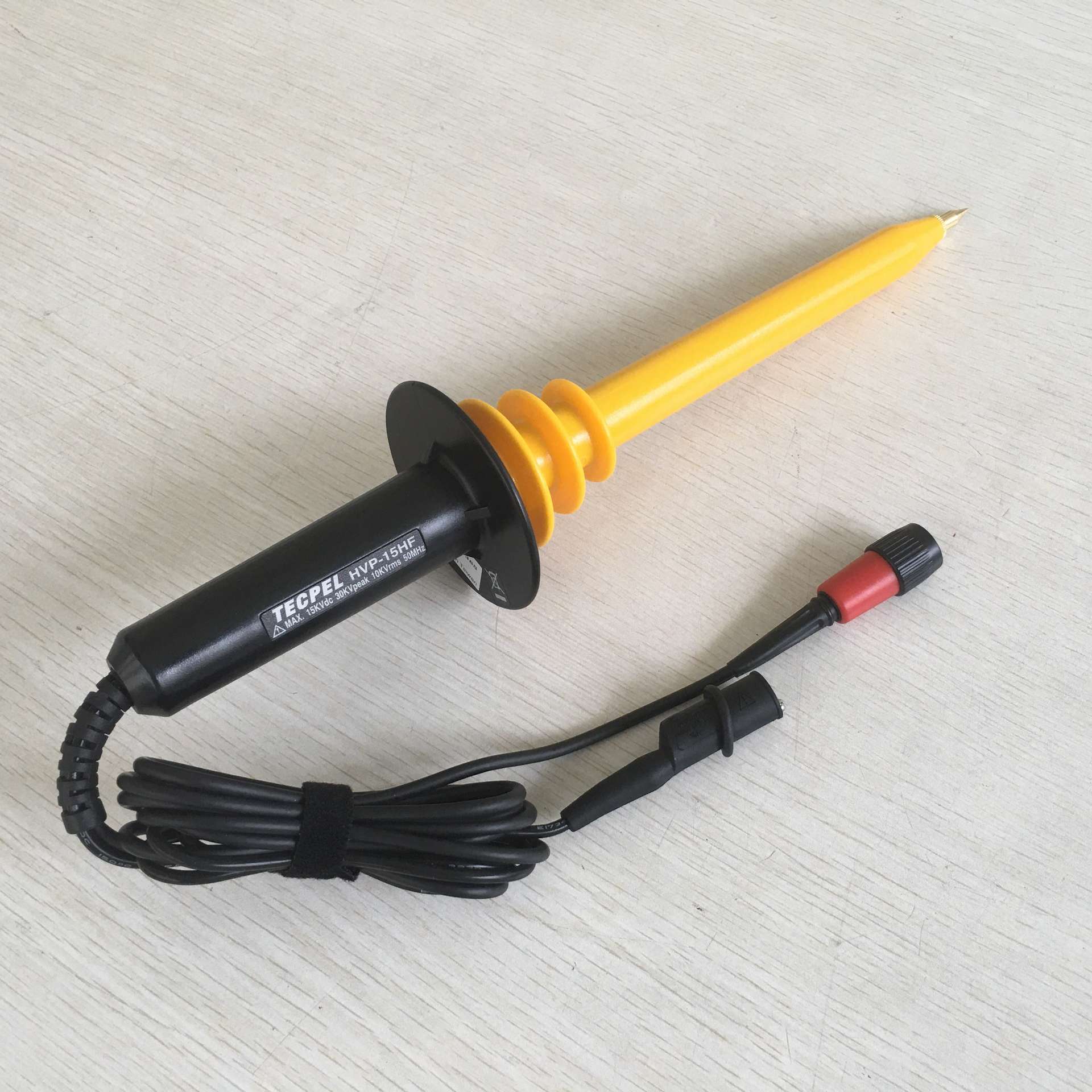

Model: HVP-15HF

Specification:
Max. Working Voltage:
DC: 0 ~ 10KV DC
AC: Pulse < 30KV Peak to Peak
AC: Sine Ware < = 10KV rms

Singal / Noise :
> =60 dB( 1KHZ), > = 50dB (1MHz)
Bandwidth: DC ~ 50MHz ( -3dB)
Division Ration: 1: 100
Rise Time < = 7ns
Input Resistance : 100M Ohm +/- 0.5%
Input Capacitance : 3.0 PF +/- 0.5 PF
Compensation Range : 5 PF~ 50 PF
Cable Length: 2.0 Meter (+/- 0.2M)
Temperature Cofficient: DC Accuracy: < = 0.7%
Safety Approval : CE, GS, UL, CUL
Operating Temperature: 0 ~ 50 Degree C.
Storage Temperature : -20 ~ 70 Degree C/
Weight : 250 g
Dimension: 75 Dia * 340 mm Length

--------------------------------------------
DP-25 Differential Probe
3 RANGE ATTENUATOR.
2 POWER SOURCE.
1000V INPUT CAT III
LOW BATT. AUTO OFF.
SEPARATING DESIGN.CONVENIENT, DURABLE.
MEET CE, IEC 1010, EN 61010, UL 3111.
Band width (-3dB, 50Ω load): DC-25MHz . ( x 20: DC~15MHz)
Accuracy : ± 2% at 20-30°C 70% RH after 20 minutes warm up.
Attenuation : x 20, x 50, x 200 ( Into 1M Ohm scope ) ; x 40, x 10, x 400 ( Into 50 Ohm load )
Maximum operation Voltage ( DC + peak AC ) :
Maximum input Differential Voltage : 1300V ( DC + peak AC ) or 1000V RMS
Maximum input Voltage to Ground : 1000V ( DC + peak AC ) or 600V RMS
Common Mode Rejection Ratio ( CMRR ):
60Hz : >10,000 : 1
100Hz: >1,000 : 1
1MHz: > 300 : 1
Noise : Input Impedance :
2M Ohm, 2.3 PF between inputs and ground.
4M Ohm, 1.2 PF between inputs.
Power :One internal 9V alkaline battery or external 6V-9V DC.

Category: Oscilloscope Probes
Certificate:CE
Model: HVP-15HF Specification:

Max. Working Voltage:
DC: 0 ~ 10KV DC
AC: Pulse < 30KV Peak to Peak
AC: Sine Ware < = 10KV rms

------------------------------------------------------
Model: DP-25 Specification:

Band width (-3dB, 50Ω load): DC-25MHz . ( x 20: DC~15MHz)
Accuracy : ± 2% at 20-30°C 70% RH after 20 minutes warm up.

Attenuation : x 20, x 50, x 200 ( Into 1M Ohm scope ) ; x 40, x 10, x 400 ( Into 50 Ohm load )
Maximum operation Voltage ( DC + peak AC ) :
Maximum input Differential Voltage : 1300V ( DC + peak AC ) or 1000V RMS
Maximum input Voltage to Ground : 1000V ( DC + peak AC ) or 600V RMS
Common Mode Rejection Ratio ( CMRR ):
60Hz : >10,000 : 1
100Hz: >1,000 : 1
1MHz: > 300 : 1
Noise : Input Impedance :
2M Ohm, 2.3 PF between inputs and ground.
4M Ohm, 1.2 PF between inputs.
Power :One internal 9V alkaline battery or external 6V-9V DC.

Model: HVP-15HF Features:

Singal / Noise :
> =60 dB( 1KHZ), > = 50dB (1MHz)
Bandwidth: DC ~ 50MHz ( -3dB)
Division Ration: 1: 100
Rise Time < = 7ns
Input Resistance : 100M Ohm +/- 0.5%
Input Capacitance : 3.0 PF +/- 0.5 PF
Compensation Range : 5 PF~ 50 PF
Cable Length: 2.0 Meter (+/- 0.2M)
Temperature Cofficient: DC Accuracy: < = 0.7%
Safety Approval : CE, GS, UL, CUL
Operating Temperature: 0 ~ 50 Degree C.
Storage Temperature : -20 ~ 70 Degree C/
Weight : 250 g
Dimension: 75 Dia * 340 mm Length

-------------------------------------------------------------------------
Model: DP-25 Features:

The DP-25 FET input differential probe provieds a safe means of measuring circuits with floating potentials up to 1000 V ( DC+ peak AC ) from ground and 1300V ( DC + peak AC ) differential.

The DP-25 converts the high voltage differencial input signal to a low voltage ground refereced signal for display on any Oscilloscope.
The output BNC of DP-25 is calibrted to drive a high impedance ( 1M Ohm) load.

3 RANGE ATTENUATOR.

2 POWER SOURCE.
1000V INPUT CAT III
LOW BATT. AUTO OFF.
SEPARATING DESIGN.CONVENIENT, DURABLE.
MEET CE, IEC 1010, EN 61010, UL 3111.
