DTM-315, DTM-316 Digital Thermometer Product ID: DTM-315, DTM-316

The DTM-315 and DTM-316 are portable digital thermometers that are integrated with a four digit LCD display. Able to perform timer modes and integrated with an automatic shut off function, this device is capable of indicating over range. It is equipped with a one thermocouple input and can accommodate K-type thermocouples as well.

Category: Thermometers
Certificate:CD
  • Single Input DTM-315 Specifications:
    • Measurement Range: -200℃ -1370℃ (-328℉ ~ 2498℉)
    • Accuracy: -200℃ to 1370℃ ±(0.5%rdg+1℃) typical
    •                 -328℉ to 2498℉ ±(0.5%rdg+1℉) typical
    • Temperature Scale: Celsius or Fahrenheit user-selectable
    • Resolution: 1℃ or 1℉ (-200℃~200℃, 0.1℃)
    • Sensor: K type Thermocouple
    • Sampling rate: 2.5 times/per second
    • General Power Requirement: 1 piece 9V battery
    • Dimensions: 7.2""x2.5""x1.2"" (184x64x30mm)
    • Weight: 7.4 oz(210g)

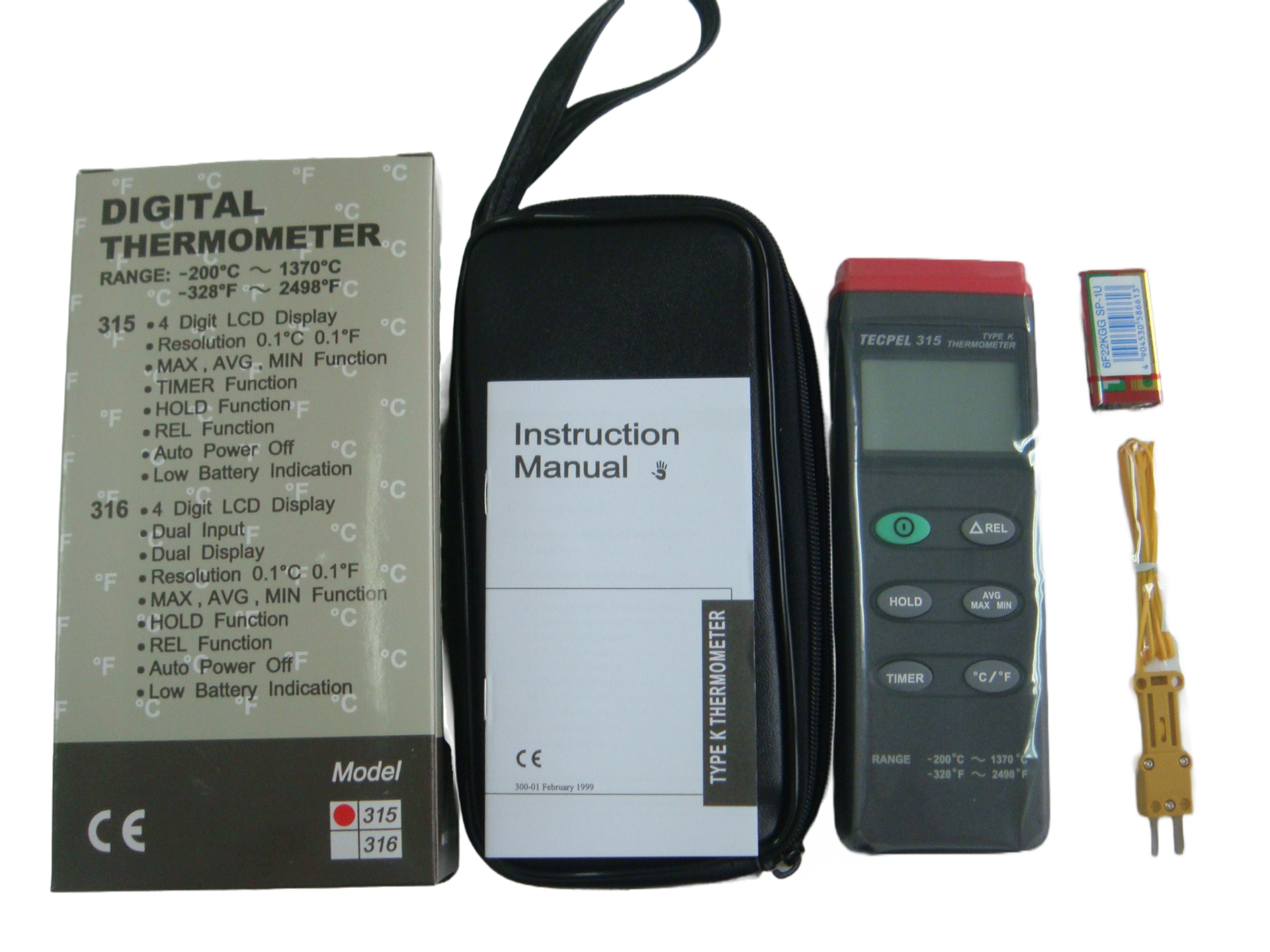

    • Accessories: TPK-01x1,soft carrying case and owners manual.
  • Dual Input DTM-316 Specifications:
    • Measurement Range: -200℃ -1370℃ (-328℉ ~ 2498℉)
    • Accuracy: -200℃ to 1370℃: ±(0.5%rdg+1℃) typical
    •                 -328℉ to 2498℉ ±(0.5%rdg+1℉) typical
    • Temperature Scale: Celsius or Fahrenheit user-selectable
    • Resolution: 1℃ or 1℉ (-200℃~200℃, 0.1℃)
    • Sensor: K type Thermocouple
    • Sampling rate: 2.5 times/per second
    • General Power Requirement: 1 piece 9V battery
    • Dimensions: 7.2""x2.5""x1.2"" (184x64x30mm)
    • Weight: 7.4 oz(210g)
    • Accessories: TPK-01x2,soft carrying case and owners manual.

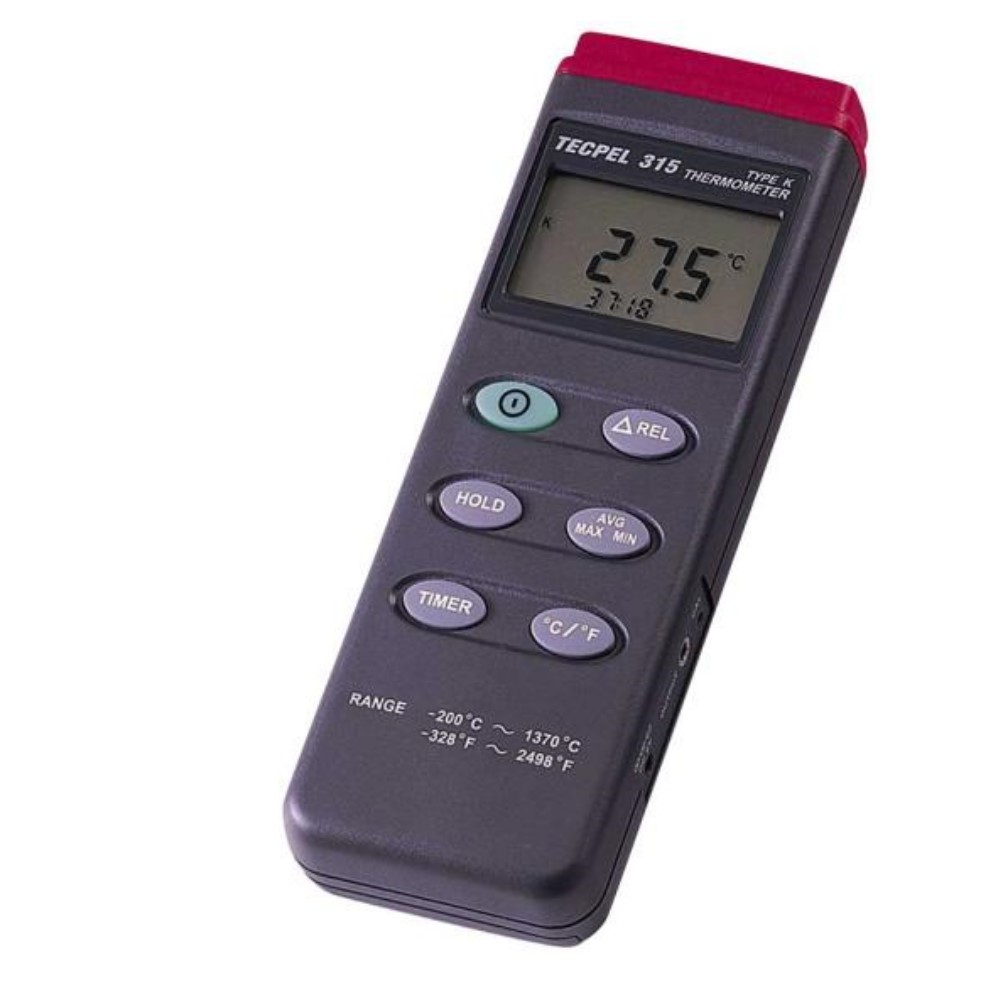

Digital Thermometer Single Input + Timer
Model : DTM-315

Features :

1. -200℃~ 1370℃ (-328 ℉ ~ 3498 ℉)
2. 4 digit LCD display
3. Timer function
4. K-type thermocouple
5. Reading hold ℃ of ℉ annunicators
6. Single thermocouple input
7. MAX. AVG. MIN. function
8. Auto power off
9. HOLD, △REL function
10. Automatic low battery indication
11. Overrange indication
12. RS-232   computer Interface (Option)


Digital Thermometer Dual Input
Model:DTM-316

Features :

1. -200℃~ 1370℃ (-328 ℉ ~ 3498 ℉)
2. 4 digit LCD display
3. K-type thermocouple
4. Function & unit sign display ℃ or ℉ annunciators
5. Dual thermocouple input
6. Differential temperature (T1-T2)
7. MAX. AVG. MIN. function
8. Auto power off
9. HOLD, △REL function
10. Automatic low battery indication
11. Overrange indication
12. RS-232 computer Interface
13. RS-232 /USB  cable + Software (Option)
