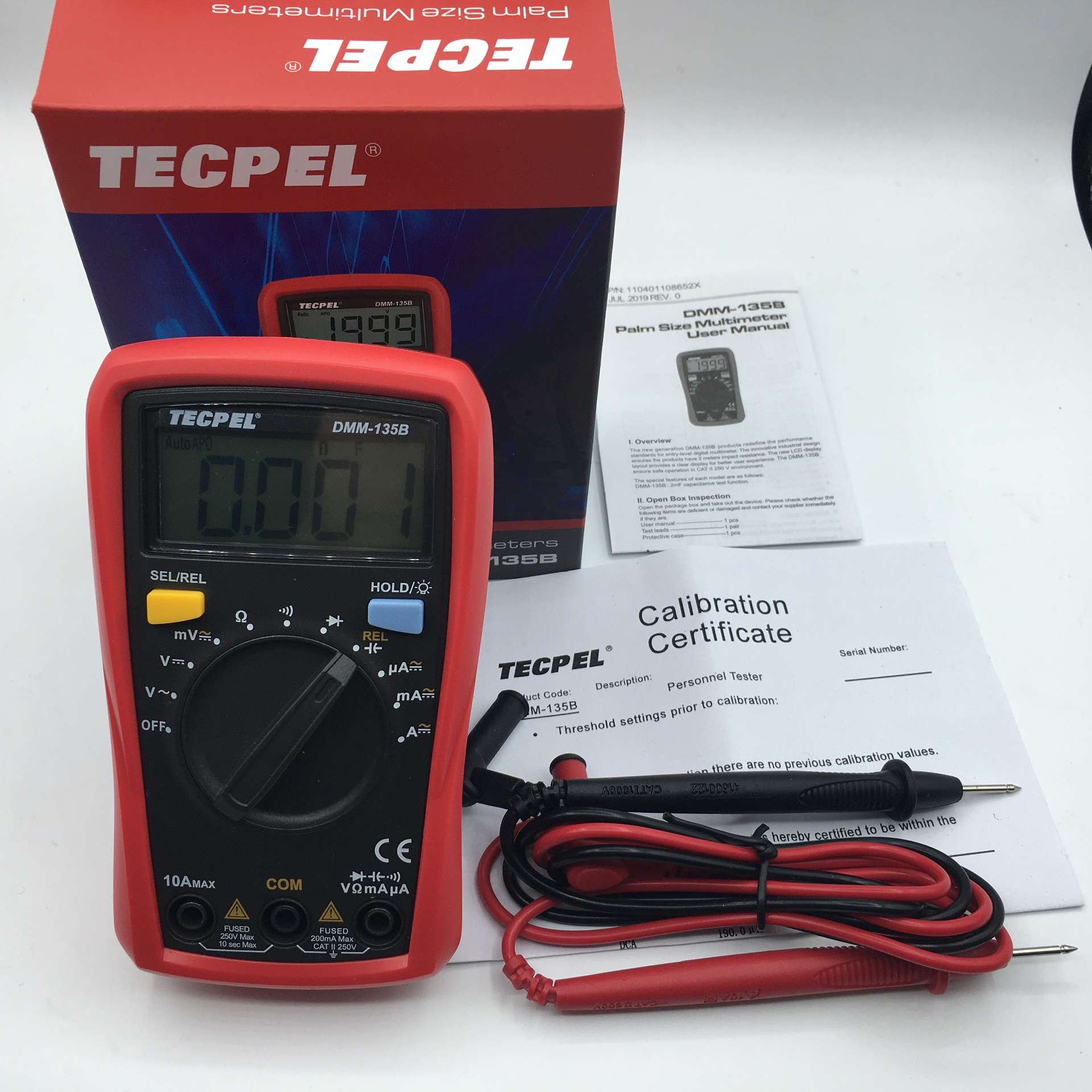

DMM-135B Palm Size Digital Multimeter
Product ID: DMM-135B
DMM-135B hand-held 3 1/2 digit electric meter has the function of automatically judging the measurement range, with stable performance and high precision, and is an ideal tool for the maintenance and repair of circuit / electric equipment. It is an ideal multi-function meter for beginners and users who often need to measure electricity.
-Product Brief:-
DMM-135B has the function of automatic range measurement. After the measurement range of voltage
current and resistance is selected
the meter will automatically judge the range of input power and display the measurement reading value of the range.
-Measurement specifications:-
Display shown: 1
999 Count DC voltage: 200.0m / 2000m / 20.00V / 200.0 / 250 V ±(0.7%+3) AC voltage: 200.0m / 2.000 / 20.00 / 200.0 / 250V ±(1.2%+3) Direct current : 200.0μ / 2000μ / 20.00m / 200.0m A ±(1.0%+2) ; 2.000A / 10A ±(1.2%+5) DC current: 200.0μ / 2000μ / 20.00m / 200.0m A ±(1.2%+3) ; 2.000A / 10A ±(1.5%+5) Resistance(Ω): 200.0 / 2000 / 20.00k / 200.0k Ω ±(0.8%+2) ; 20.00MΩ ±(1.2%+3) ; 200.0MΩ ±(5%+10) Capacitance(F): 2.000n / 20.00n / 200.0n / 2.000μ / 20.00μ / 200.0μ F ±(4%+8) ; 2.000m F ±(10%)
-Product Features:-
Auto-shutdown Automatic Backlit Beep: 0.1Ω Dipole: 0.001V Hold Protection: CAT II 250V Operating environment: -10 ~ 40 ° C / below 75% RH without condensation Storage environment: 0 to 50 ° C / below than 75%RH and not exposed Altitude limit: less than 1
000 meters Power: DC 1.5V battery (AAA) x2 Size: 134 × 77 × 47 mm Weight: approx. 206 grams (including battery) Accessories: test leads
battery
instruction manual
