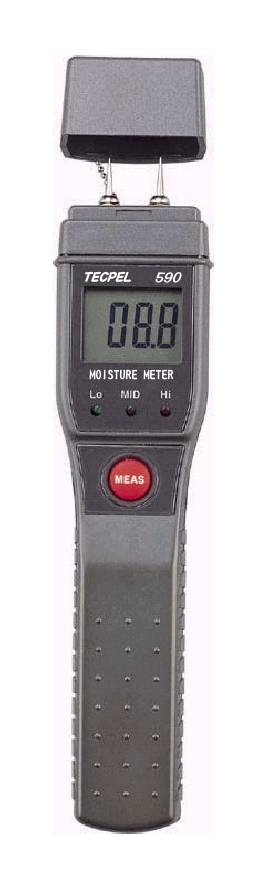

TMM-590 Moisture Meter Product ID: TMM-590

The TMM-590 model is manufactured by Tecpel, and is a moisture meter that has a CE-Mark approval. It is portable and has a simple one-hand operation, which meet the directives of EN50081-1(97) and EN50082-1(97). There is also an automatic power shut-off function for maximum battery life. It can be utilized in wide variety of requisitions including indoor, outdoor, furniture and environment studies.

Features:
1.CE-Mark approval
2.Portability and simplicity one-hand operation
3.According EN50081-1(97)
4.According EN50082-1(97)
5.Automatic power shut off for maximum battery life.
6.Jack socket for pin extension leads
7.Three lights to indicate moisture content in wood:
Green: ""air, dry""conditions
Yellow: Slightly in excess of normal
Red: Excess moisture
8.Measuring principle is electrical resistance
9.Valox housing to withstand accidental drops
10.Attached carrying case
11.Applications:Indoor、Outdoor、Furniture、Environment studies

TECPEL CO., LTD
E-MAIL: sales@tecpel.com
Web-site: http://www.tecpel.com
TEL:2-27375866
FAX:886-2-27373343

Certificate:
  • TECPEL 590
    • Display: 3 LEDs and 3 1/2digit liquid crystal display (LCD).
    • Range: 10% ~ 28%(Reading above 28 indicate increasing levels of high moisture are not percent moisture content,)
    • The accuracy is ±2% from 8% to 28%
    • stated accuracy at 23°C +/- 5 °C, < 75% relative humidity
    • Low battery indication: The ""battery indication""is displayed when the battery voltage drops below the operating level.
    • Operating environment: 0°C to 40°C, 15 to 80% R.H..
    • Storage environment: -20°C to 60°C, 0 to 80% R.H. with batteryremoved from meter.
    • Accuracy: Stated accuracy at 23°C±5°C, Dimensions: 193mm(H) x 44mm(W) x 40mm(D).
    • Weight: Approx. 150g including battery (1.5VX4pcs AAA size).
    • Temperature compensation :from 0 - 40°C
Features:

1.CE-Mark approval
2.Portability and simplicity one-hand operation
3.According EN50081-1(97)
4.According EN50082-1(97)
5.Automatic power shut off for maximum battery life.
6.Jack socket for pin extension leads
7.Three lights to indicate moisture content in wood:
   Green: ""air, dry""conditions
   Yellow: Slightly in excess of normal
   Red: Excess moisture
8.Measuring principle is electrical resistance
9.Valox housing to withstand accidental drops
10.Attached carrying case
11.Applications:Indoor、Outdoor、Furniture、Environment studies
