LCR-8000G Series, LCR meter test frequency 10MHz Product ID: LCR-8000G

The LCR-8000G Series LCR meter, with test frequency up to 10MHz, provides accuracy, versatility and high resolution for a wide range of component measurements, even including DC resistance measurement and Voltage/Current monitoring. The Multi-Step function allows on-screen programming of customized measurement sequence with Pass/Fail indication.
Each program includes 30 test steps and each test step can be set with selected parameters and test limits. Under Multi-Step operation, a tedious work routine can be done step by step automatically just at a press of a button.
With Graph Mode, LCR-8110G, LCR-8105G and LCR-8101G display the component impedance response either over a wide range of test frequency sweep or over a wide range of test voltage sweep in a graph chart. This gives an analysis result of either impedance vs. frequency or impedance vs. applied voltage all at a glance. GPIB and RS-232C interfaces are available as standard for instrument control and test result display on the PC. The rich features of LCR-8000G Series easily make your measurement tasks done at a very competitive price.

※ Optional DC Bias box
※ Wide Test Frequency 20Hz ~ 10/5/1MHz
※ 0.1% Basic Accuracy & 6 Digits Measurement Resolution
※ Large LCD Display with Intuitive Interface
※ Full Measuring Functions with DUT V/I Monitor
※ PASS/FAIL Function ( abs, % or delta) with Judgment Alarm
※ DC Resistance Measurement
※ Multiple Step Mode
※ Standard RS-232C/GPIB Interface

Certificate:
Note "" △ "" means the accessories work with a frequency limitation (under 1MHz)
User manual x1, Power cord x1, LCR-12 x1


OPTIONAL ACCESSORIES
Opt.01 GTL-251 GPIB-USB-HS (High Speed)
Opt.02 DC Bias box (Freq. upto 2MHz / max. input voltage +/- 200V)


OPTIONAL ACCESSORIES
Accessory Model Brief Description
LCR-8110G
LCR-8105G
LCR-8101G
LCR-05 Test Fixture for axial & radial leaded components
V
LCR-06A Test Lead with Kelvin clip (4 wire type)
V
LCR-07 Test Lead with Alligator clip (2 wire type)
V
LCR-08 Test Fixture (Tweezers) for SMD/Chip components
V
LCR-09 Test Fixture for SMD/Chip components
V
V
V
LCR-12 Test Lead with Kelvin clip (4 wire type)
V
V
V
LCR-13 Test Fixture for SMD/Chip components
V
V
V
GTL-232 RS-232C Cable
V
V
V
GRA-404 Rack Adapter Panel (19"", 4U)
V
V
V
GTC-001 Instrument Cart
V
V
V
GTC-002 Instrument Cart
V
V
V
Ordering Informaiton:

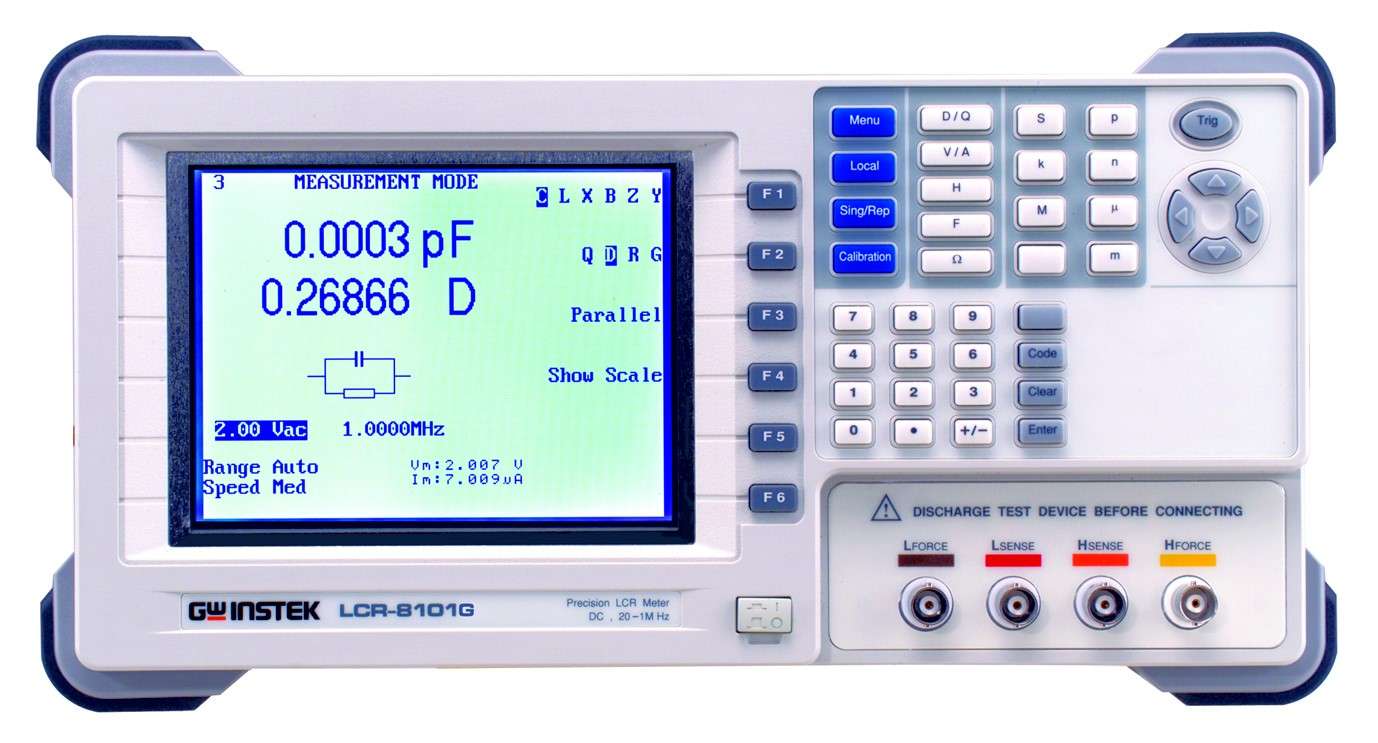

LCR-8101G
 1 MHz Precision LCR Meter
LCR-8105G 5 MHz Precision LCR Meter
LCR-8110G 10 MHz Precision LCR Meter
(*):Basic accuracy varies with the speed, frequency, AC signal level and impedance of the device under test.
TEST FREQUENCY
20Hz ~ 10 / 5 / 1 MHz, 5 Digits, ±0.005%
INPUT IMPEDANCE
100Ω
BASIC ACCURACY (*)
±0.1% (R, Z, X, G, Y, B, L, C)
TEST SPEED
AC ( 2kHz)
MAX: 75mS
FAST: 150mS
MEDIUM: 450mS
SLOW: 600mS
DC
MAX: 30mS
FAST: 60mS
MEDIUM: 120mS
SLOW: 900mS
TEST SIGNAL LEVELS
3MHz:10mV~2Vrms, 1mV/Step or 10mV/Step, 2%±5mV
3MHz:10mV~1Vrms, 1mV/Step or 10mV/Step, 2%±5mV
SHORT CIRCUIT CURRENT
Max. 20mA
MEASUREMENT RANGES
R, Z, X 0.1mΩ ~ 100MΩ
G, Y, B 10nS ~ 1000S
L 0.1nH ~ 100kH
C 0.01pF ~ 1F
D 0.00001 ~ 9.9999
Q 0.1 ~ 9999.9
θ -180° ~ +180°
Rdc 0.1mΩ ~ 100MΩ
MEASUREMENT PARAMETERS
Impedance (Z), Phase Angle (θ), Inductance (L), Capacitance (C), AC Resistance (Rac), Quality Factor (Q), Dissipation Factor (D), Admittance (Y), Conductance (G), Reactance (X), Susceptance (B), DC Resistance (Rdc)
SERIES OR PARALLEL EQUIVALENT CIRCUIT
C + R, C + D, C + Q, L + R, L + Q, L + D
SERIES EQUIVALENT CIRCUIT ONLY
X + R, X + D, X + Q
PARALLEL EQUIVALENT CIRCUIT ONLY
C + G, B + G, B + D, B + Q, B + R, L + G
POLAR FORM
Z + Phase Angle, Y + Phase Angle
AVERAGE
1 ~ 256 TIMES
LCD DISPLAY
320 x 240 DOT-MATRIX
INTERFACE
RS-232, GPIB
POWER SOURCE
AC 115V(+10% / -25%), 230V(+15% / -14%) (Selectable), 50/60Hz
DIMENSIONS & WEIGHT
330(W) x 170(H) x 340(D)mm, Approx. 5kg
