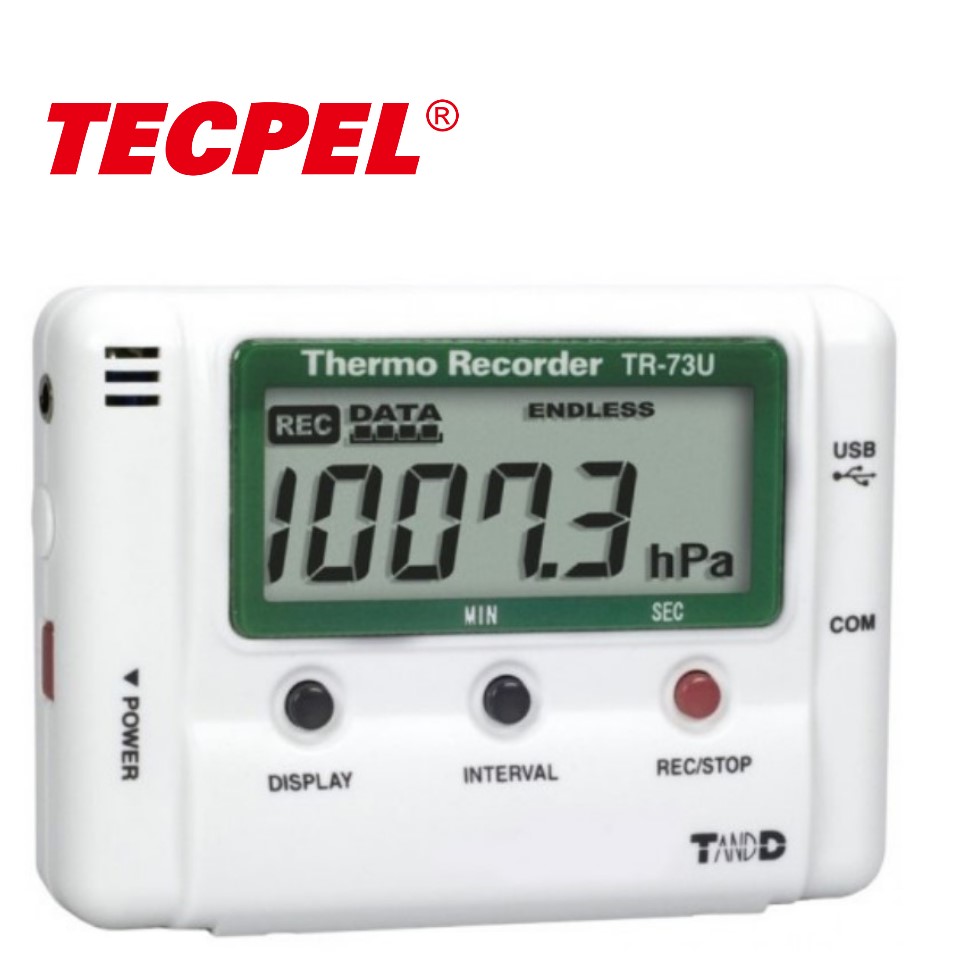

TR-73U T and D Thermo / Barometric Pressure Recorder Product ID: TR-73U

TR-73U
They may look like toys... but they are not!!
Use them and find out for yourself...powerful, durable, and versatile.
For Measuring and Recording Temperature and Humidity
These handy Thermo Recorders measure and record temperature and humidity. The recorded data is then downloaded to your computer via our exclusive software whereby colorful graphs and tables can be easily created. By making use of two alkaline batteries this low energy using compact lightweight unit can be left alone to record continuously over long periods of time. And with our exclusive circuitry, we have created a model that brings you the accuracy of more expensive models at a price you can afford.

The TR-7Ui series, with a simple USB connection to your PC, provides an easy way to make detailed settings and download data. Basic settings and REC start/stop can also be done by simply pressing buttons on the units themselves.

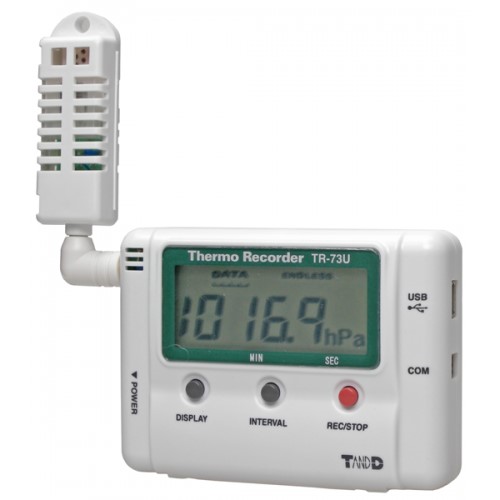

TR-73U is a three-channel data logger designed to simultaneously measure and record barometric pressure, temperature and humidity. Perfect for pressure management in places like clean rooms.

Certificate:CE
  • Features:
    • TR-71U :
    • 2 Temperature Channels
    • 8,000 Readings Each
    • -60 to 155 ° C
    • TR-72U
    • 1 Humidity and 1 Temp. Channel
    • 8,000 Readings Each
    • 0-50 ° C/ 10-95% RH
    • 2 Measurement and Recording Channels in Each Unit.
    • TR-73U : Barometric Pressure 750 to 1100 hPa +/- 1.5 hPa 0.1hPa resolution.
    • The TR-71U gives you two temperature measuring channels and the TR-72S gives you one channel for temperature and one for humidity. The present measurements for both channels are also displayed alternately on the main unit making it easy to know the current temperature and humidity in a flash.
    • TR-71U has one internal sensor for temperature and / or can outfitted with one or two external temperature sensors giving you the flexibility you need.
    • TR-72U comes equipped with an external two channel temperature and humidity sensor which can be removed to allow you to make use of the internal temperature sensor and connect an optional external temperature sensor of your choice.
    • Wide Range of Temperature Measurement: -60 °C to 155 °C
    • The external sensor that comes with the TR-71U can measure and record from -40 °C to 110°C, while optional sensors can give you a range of -60 °C to 155 °C. There is an array of optional external sensors to meet your every need.
    • Humidity Measurement Range: 10-95% RH
    • The two channel external sensor that comes with the TR-72U can measure and record temperature from 0-50degC and humidity from 10-95% RH.
    • Large Data Capacity: 8,000 Readings X 2 Channels
    • Each Channel can record up to 8,000 readings; giving you about one year of continuous recording at a recording interval of 60 minutes.
    • 15 Recording Intervals / 2 Recording Methods
    • You can select from 15 recording intervals from one second to one hour.
    • There are also two methods of recording to chose from.
    • One time method:
    • Recording stops when 8,000 readings have been recorded.
    • Endless method :
    • When 8,000 readings have been recorded the oldest data is overwritten and recording continues.
    • Accurate, Compact, Lightweight and Affordable
    • Our exclusive design and technology has allowed us to create a highly accurate yet compact and lightweight unit (55x88x24mm 95g) that is unbelievably affordable.
    • Ready to Use - All in One Package
    • Everything you need to get started (main unit, sensor, batteries, software, communication cable and user's guide) is included in this All in One Package. All you need to do is supply the computer.
    • Easy to Read Multi-Functional Display.
    • The easy to read large sized LCD displays present readings, recording condition, battery life warning, amount of data readings, and unit of measurement among other things.
    • Reliable Backup Function
    • We have eliminated the worry of losing data due to power loss or the switch being accidentally turned off.
    • When Battery Power becomes Low
    • When battery power becomes low a battery life warning will appear on the unit's display indicating that the battery should be changed. If within a short time the battery is changed, measurement and recording will not be interrupted and there will be no data loss. If the battery is not changed the unit will automatically go into SLEEP mode whereby measurement and recording will stop but, due to our BACK UP FUNCTION, data will not be lost and will remain saved for one year.
    • When the Switch is turned OFF
    • If while recording the power switch is accidentally turned OFF, data will not be lost but will be saved for one year from the time it was switched OFF.
    • Note: Even if the unit is in sleep mode it needs battery power. Hence, a total loss of battery power or removal of the batteries will result in the loss of data.
    • One Year Continual Use on One Set of Batteries
    • Using our specially designed low energy consumption circuit this unit can run on one AA Alkaline batteries for up to one year of continued use. No need to worry about where you place it as the battery will allow you to measure and record over long periods of time whether the unit is in transit or in a distant place.
    • Note: Battery life will depend on the recording environment, recording interval, communication frequency, and ambient temperature. The above battery life test was carried out using brand new batteries and in no way do we guarantee a battery's life.
    • Software
    • Easy to use Windows comaptible software allows you to control all aspects of set up for any TR-71S/TR-72S unit, as well as to print, and to create text files, tables, and colorful graphs from the recorded data.
  • Functions
    • USB Connection One Year Continual Use on One Set of Batteries
    • Simultaneous Monitoring of Multiple Channels of Data High Speed Data Transfer
    • Large Data Capacity: 8,000 Readings X 2 Channels Adjustment Function
    • Accurate, Compact, Lightweight and Affordable Easy to Read Multi-Functional
  • More Functions:
    • USB Connection
    • Our easy-to-use USB computer connection makes things not only simple, but allows you to connect several units at the same time.
    • Simultaneous Monitoring of Multiple Channels of Data
    • With the attached software it is possible to view current measurements and current trends in a changing graph form. Graphs can be opened for the same number of units as are connected and can be simultaneously viewed.
    • Large Data Capacity: 8,000 Readings X 2 Channels
    • Each channel can record up to 8,000 readings; giving you about one year of continuous recording at a recording interval of 60 minutes.
    • Accurate, Compact, Lightweight and Affordable
    • Our exclusive design and technology has allowed us to create a highly accurate yet compact and lightweight unit (55x88x24mm 95g) that is unbelievably affordable.
    • One Year Continual Use on One Set of Batteries
    • Using our specially designed low energy consumption circuit this unit can run on two AAA alkaline batteries for up to one year of continued use. No need to worry about where you place it as the battery will allow you to measure and record over long periods of time whether the unit is in transit or in a distant place.
    • Note: Battery life will depend on the recording environment, recording interval, communication frequency, and ambient temperature. The above battery life test was carried out using brand new batteries and in no way do we guarantee a battery's life.
    • Adjustment Function
    • By setting adjustment values beforehand, you can record and display the post-adjusted measurement values.
    • High Speed Data Transfer
    • Possible to transmit one unit of full data (8,000 readings) to computer in about 8 seconds.
    • Easy to Read Multi-Functional Display.
    • the easy to read large sized LCD displays present readings, recording condition, battery life warning, amount of data readings, and unit of measurement among other things.
    • 1. Channnel Mark
    • The channel number of the measurement being displayed will appear.
    • 2. Recording Mark
    • The recording condition will appear.
    • ON:Recording in progress.
    • BLINKING:Waiting for programmed start.
    • 3.Data Capacity Scale
    • After every 2000 readings the scale will be marked from left to right.
    • 4.COM Mark
    • This will appear when data is being sent or received.
    • ON:USB cable is connected.
    • BLINKING:In communication with computer.
    • 5.Recording Mode
    • ONETIME: When the number of recorded readings reaches 8000, ""FULL"" will appear in the unit's LCD display and recording will automatically stop.
    • ENDOLESS: When the number of recorded readings reaches 8000, the oldest data reading will be overwritten and recording will continue.
    • 6.Battery Life Warning Signal
    • When the battery power becomes low, this will appear in the LCD display. If the battery power becomes even lower, SLP will appear and normal operations will stop. If the signal appears, please change the battery as soon as possible.
    • 7. Unit of Measurement
    • The unit of measurement for the display will appear.
    • 8. Measurements and Messages Area
    • Current measurements or operational messages such as FULL or SLP will appear.
  • Application Examples :
    • Performance testing of humidity and heat control in housing Temperature and humidity management for greenhouses
    • Temperature management in temperature controlled warehouses
    • Humidity and temperature management in mushroom cultivation
    • Recording temperature and humidity in subways and train cars
  • Q & A:
    • 1. Customer wanna know sampling rate of instruemnt in measurement mode and recording mode.
    • ANS:
    • 1. TR-72U's sampling rate
    • a) In Measurement Mode :
    • When recording interval is 1 sec, 1 sec.
    • When recording interval is 2 sec. or more, 2 sec.
    • b) In Recording Mode :
    • Same as the recording interval you set. (Specifically, TR-72U record the
    • measured value right before the recording time.)
    • 2. Regarding excel format customer wanna know if it's possible to get data
    • directly in Excell format
    • without sw, just with USB drivers.
    • ANS:
    • 2. It seems that you can do that with the TR-72U's DLL, but we do not
    • know the exact mothod because this is not a matter of our products.
  • TR-71U / TR-72U/ TR-73U Specifications:
    • TR-71U TR-72U
    • Measurement
    • TR-71U Channel 2 (Select from Internal or External)
    • TR-72U 2 Channel (Temperature and Humidity)
    • Measurement Item TR-71U Temperature Only
    • Temperature Humidity
    • Internal Sensor -10 to 60 ° C
    • TR-71U: External Sensor -40 to 110 ° C
    • TR-72U : 0 to 50 ° C, 10 to 95%RH
    • TR-71U : Option Sensor -60 to 155 °C
    • TR-72U: *1 -40 to 110 ° C
    • Measurement Accuracy
    • (Standard Sensor) Average +/-0.3° C(-20 to 80 ° C)
    • Average +/- 0.5 °C(-40 to-20/80 to 110 °C) +/- 5%RH
    • (At 25 ° C 50%RH)
    • Measurement Resolution Display 0.1° C , 1%RH (TR-72U)
    • Sensor Thermistor Macromolecular
    • Humidity Sensor
    • Recording Interval 1,2,5,10,15,20,30Seconds,1,2,5,10,15,20,30,60Minutes / Total of 15 choices
    • Recording Capacity 8,000 Readings x 2 Channels
    • Recording Method Endless (Overwrite from the oldest data when recording capacity is full)
    • One time Method (Stop recording when recording capacity is full)
    • LCD Display Measurements (Ch1 only, Ch2 only, alternating display), Recording Status,
    • Battery Life Warning, Amount of Recorded Data, Unit of Measurement
    • Battery AA Alkaline battery (LR6)
    • Battery Life About 1year *2
    • Data Back-up Activated when battery power is low or when switch is off (about 1 year)
    • Interface USB Communication Cable (option: RS-232C)
    • USB Communication time When downloading (1 unit of full data-about 8 seconds)
    • Dimentions H55mm x W78mm x D18mm
    • Weight About 62g (Including AA alkaline batteries)
    • Warking Environment for Main Unit Temperature: -10 to 60 ° C
    • TR-72U Humidity: under 90%RH (without condensation)
    • Attached Sensors TR-0106 x 2 (TR-71U) ; TR-3100 x 1 (TR-72U)
    • *1: There are two types of temperature sensor for TR-71U depending on measurement range.
    • *2: Battery life depends upon the measuring environment, recording interval, and quality of the battery being used.
  • Order Information:
    • TR-71U: Temperature (-40 to 110 ° C)
    • TR-72U: Temperature & Humidity ( 0 to 50 ° C 10 to 95%RH )
    • TR-73U: Temperature/ Humidity/ Barometric Pressure) ( 0 to 50 °C 10 to 95%RH, 750 to 1100 hPa)
Model TR-71U TR-72U TR-73U
Measurement Internal: -10 ~60°C; External: -40 to 110°C Internal: -10 to 60°C; External: 0~50°C; 10 to 95%RH Internal: -10 to 60°C, 750 to 1100hPa; Ext. 0~50°C, 10 ~ 95%RH
Optional Sensor -60 to 155°C; -40 to 110°C -40 to 110°C -40 to 110°C
Resolution: 0.1°C 1%RH 0.1°C; 1%RH ; 0.1hPa
Sensor Thermistor Macromolecular Humidity Sensor Temp: Thermistor; Humidity: Macromolecular; Barometric Pressure sensor
Recording Internal 1,2,5,10,15,20,30 Seconds; 1, 2,5,10,15,20,30,60 minutes Total 15 choices - ditto- -ditto-
Recording Capacity 8,000 x 2 Channels 8,000 x 2 Channels 8,000 x 3 channels
Attached Sensor TR-0106 (Tep resin-coated temperature sensor) TR-3100 x 1 (Temp. Humidity sensor) TR-3100 x 1 (Temp. Humidity sensor)
