GW INSTEK GPT-9800 Electrical Safety Tester, Hi-Pot Tester
GW INSTEK GPT-9800 Electrical Safety Tester, Hi-Pot Tester
Features
200VA AC Test Capacity
240x64 Ice Blue Dot matrix LCD
Manual/Auto Mode
Function Key for quick selecting
High-intensity flash for Caution & Status indication
Safety INTERLOCK function
Zero-Crossing Turn-on Operation
Controllable Ramp-up Time
RMS Current Measurement
High resolution: 1uA for measuring current, 2V for setting the voltage
PWM amplifier to enhance the power efficiency and reliable testing
Max. 100 memory block for test condition (step) setting. And each step can be named individually.
Remote terminal on the front panel for “start” and “stop” control
Interface: RS-232C, USB device, Signal I/O, and GPIB (optional)
Features
200VA AC Test Capacity
240x64 Ice Blue Dot matrix LCD
Manual/Auto Mode
Function Key for quick selecting
High-intensity flash for Caution & Status indication
Safety INTERLOCK function
Zero-Crossing Turn-on Operation
Controllable Ramp-up Time
RMS Current Measurement
High resolution: 1uA for measuring current, 2V for setting the voltage
PWM amplifier to enhance the power efficiency and reliable testing
Max. 100 memory block for test condition (step) setting. And each step can be named individually.
Remote terminal on the front panel for “start” and “stop” control
Interface: RS-232C, USB device, Signal I/O, and GPIB (optional)
TG-902, Coating Thickness Gauge
Features:
Automatically hold reading, when sensor leaves the surface.
Automatically measure thickness for ferrous material(Iron, Steel) and Non-Ferrous Material(Copper, Aluminum, Zinc, Bronze, Brass), when you place the sensor onto the surface.
2-point calibration.
One-hand operation- Simple and easy to be used.
Backlight display
micro mini/mils user-selective.
Autopower off.
CE-approval
Automatically hold reading, when sensor leaves the surface.
Automatically measure thickness for ferrous material(Iron, Steel) and Non-Ferrous Material(Copper, Aluminum, Zinc, Bronze, Brass), when you place the sensor onto the surface.
2-point calibration.
One-hand operation- Simple and easy to be used.
Backlight display
micro mini/mils user-selective.
Autopower off.
CE-approval
TM-188D Heat Stress WBGT Meter
TM-188D Heat Stress WBGT Meter
-Wide frequency range of 10Hz to 5KHz
-Acceleration, velocity and displacement measurement
-Meets ISO2954 sensor ...
- Quick-response capacitance sensor, accurate measurement for wet bulb globe temperature(WBGT), black globe temperature(TG), humidity(%RH), air temperature(TA), wet bulb(WET) and dew point(DEW).
- Max/Min and data hold.
- Low battery indication.
- LCD display with LED backlight.
- Viewing data records.
- Switch the temperature unit to ℃ or ℉.
- Brass black ball in 50mm diameter.
- WBGT alarm setting.
- Auto power off with disable function.
- Data logging capacity: 12000 records, USB PC serial interface (TM-188D).
- Sampling interval: Max 24 hours; Min 1 Second (TM-188D).
Application
TM-188
TM-188D (with datalogger)
The HEAT STRESS WBGT METER is quick-response with accurate measurement for the effects of temperature, humidity, and direct or radiant sunlight.
This instrument is ideal for the athletic trainers, military, occupational (Industrial) hygienists, outdoor worker and the sports medicine specialists; and it's designed according to the regulations mentioned below.
In order to measure the WBGT index, you should refer to the following regulations:
ISO7243 : Hot environments. Estimation of the heat stress on working man.
ISO7726 : Ergonomics of the thermal environment-instruments for measuring physical quantities.
OSHA : Occupational Safety and Health Administration.
JISHA : Japan Industrial Safety and Health Association.
Specification
Wet Bulb Globe Temperature (WBGT)
Unit
Range
Resolution
Accuracy@15~40°C
Indoor &
outdoor
without
sunlight
°C
0°C~59.0°C
0.1°C
±1.0°C
°F
32.0°F~138.0°F
0.1°F
±1.8°F
outdoor
with
sunlight
°C
0°C~56.0°C
0.1°C
±1.5°C
°F
32.0°F~132.0°F
0.1°F
±2.7°F
*Indoor & outdoor without sunlight :WBGT=(0.7xWET)+(0.3xTG)
Outdoor with sunlight : WBGT=(0.7xWET)+(0.2xTG)+(0.1xTA)
Air temperature (TA)
Unit
Range
Resolution
Accuracy@15~40°C
°C
0°C~50.0°C
0.1°C
±0.8°C
°F
31°F~122.0°F
0.1°F
±1.5°F
Black globe temperature (TG)
Unit
Range
Resolution
Accuracy@15~40°C
°C
0°C~80.0°C
0.1°C
±0.6°C
°F
32°F~176.0°F
0.1°F
±1.1°F
Relative humidity (%RH)
Range
1%-99%
Accuracy
±3.0%RH (20%~80%)
±5.0%RH (<20% ,>80%)
Resolution
0.1%
Response time
<4 sec
Dew point temperature (DEW)
Unit
Range
Resolution
°C
-35.3°C~48.9°C
0.1°C
°F
-31.5°F~120.1°F
0.1°F
The value is calculated from the RH and air temp
Wet bulb temperature (WET)
Unit
Range
Resolution
°C
-21.6°C~50.0°C
0.1°C
°F
-6.9°F~122.0°F
0.1°F
The value is calculated from the RH and air temp
-Wide frequency range of 10Hz to 5KHz
-Acceleration, velocity and displacement measurement
-Meets ISO2954 sensor ...
- Quick-response capacitance sensor, accurate measurement for wet bulb globe temperature(WBGT), black globe temperature(TG), humidity(%RH), air temperature(TA), wet bulb(WET) and dew point(DEW).
- Max/Min and data hold.
- Low battery indication.
- LCD display with LED backlight.
- Viewing data records.
- Switch the temperature unit to ℃ or ℉.
- Brass black ball in 50mm diameter.
- WBGT alarm setting.
- Auto power off with disable function.
- Data logging capacity: 12000 records, USB PC serial interface (TM-188D).
- Sampling interval: Max 24 hours; Min 1 Second (TM-188D).
Application
TM-188
TM-188D (with datalogger)
The HEAT STRESS WBGT METER is quick-response with accurate measurement for the effects of temperature, humidity, and direct or radiant sunlight.
This instrument is ideal for the athletic trainers, military, occupational (Industrial) hygienists, outdoor worker and the sports medicine specialists; and it's designed according to the regulations mentioned below.
In order to measure the WBGT index, you should refer to the following regulations:
ISO7243 : Hot environments. Estimation of the heat stress on working man.
ISO7726 : Ergonomics of the thermal environment-instruments for measuring physical quantities.
OSHA : Occupational Safety and Health Administration.
JISHA : Japan Industrial Safety and Health Association.
Specification
Wet Bulb Globe Temperature (WBGT)
Unit
Range
Resolution
Accuracy@15~40°C
Indoor &
outdoor
without
sunlight
°C
0°C~59.0°C
0.1°C
±1.0°C
°F
32.0°F~138.0°F
0.1°F
±1.8°F
outdoor
with
sunlight
°C
0°C~56.0°C
0.1°C
±1.5°C
°F
32.0°F~132.0°F
0.1°F
±2.7°F
*Indoor & outdoor without sunlight :WBGT=(0.7xWET)+(0.3xTG)
Outdoor with sunlight : WBGT=(0.7xWET)+(0.2xTG)+(0.1xTA)
Air temperature (TA)
Unit
Range
Resolution
Accuracy@15~40°C
°C
0°C~50.0°C
0.1°C
±0.8°C
°F
31°F~122.0°F
0.1°F
±1.5°F
Black globe temperature (TG)
Unit
Range
Resolution
Accuracy@15~40°C
°C
0°C~80.0°C
0.1°C
±0.6°C
°F
32°F~176.0°F
0.1°F
±1.1°F
Relative humidity (%RH)
Range
1%-99%
Accuracy
±3.0%RH (20%~80%)
±5.0%RH (<20% ,>80%)
Resolution
0.1%
Response time
<4 sec
Dew point temperature (DEW)
Unit
Range
Resolution
°C
-35.3°C~48.9°C
0.1°C
°F
-31.5°F~120.1°F
0.1°F
The value is calculated from the RH and air temp
Wet bulb temperature (WET)
Unit
Range
Resolution
°C
-21.6°C~50.0°C
0.1°C
°F
-6.9°F~122.0°F
0.1°F
The value is calculated from the RH and air temp

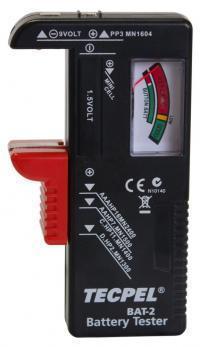

BAT-2 Battery tester
BAT-2 battery tester
Very suitable for home / business use
The BAT-2 battery tester shows the amount of charge remaining standard and rechargeable batteries. Color-coded test on the calibration of the proportional analog display
Analogy pointer to quickly identify the area of ""good"" (green), ""low"" (yellow), and ""replace / recharge"" (red) battery status. The BAT-2 can be tested forBattery types 9V, AA, AAA, C, D, and 1.5V button type battery.
Features:
1. BAT-2 test does not require any internal battery.
2. Easy to interpret color-coded display as ""good"", ""low"" and ""Replacing / charge"" indicator
3. Can test standard or rechargeable electric battery types: 9V, AA, AAA, C, D, 1.5V button battery
4. lightweight and convenient, easy to use
Very suitable for home / business use
The BAT-2 battery tester shows the amount of charge remaining standard and rechargeable batteries. Color-coded test on the calibration of the proportional analog display
Analogy pointer to quickly identify the area of ""good"" (green), ""low"" (yellow), and ""replace / recharge"" (red) battery status. The BAT-2 can be tested forBattery types 9V, AA, AAA, C, D, and 1.5V button type battery.
Features:
1. BAT-2 test does not require any internal battery.
2. Easy to interpret color-coded display as ""good"", ""low"" and ""Replacing / charge"" indicator
3. Can test standard or rechargeable electric battery types: 9V, AA, AAA, C, D, 1.5V button battery
4. lightweight and convenient, easy to use
EMF-701 EMF detector / EMF tester gauss meter
EMF Field Tester Model :EMF 701
13 mm(0.5""), 3 1/2 digit LCD display
Range in guass:0.1m to 199.9m gauss.
Range in Telsa:0.01 ~ 19.99 micro Tesla
Band width:30Hz to 300Hz
A cost effective, handheld meter provides the user with quick,reliable and easy way to measure electromagnetic field (EMF) radiation levels generated by power lines, cables, computer monitors,TV sets, Video equipment and many other similar devices..
Over range indication Fast sampling rate of 2.5 times per second
13 mm(0.5""), 3 1/2 digit LCD display
Range in guass:0.1m to 199.9m gauss.
Range in Telsa:0.01 ~ 19.99 micro Tesla
Band width:30Hz to 300Hz
A cost effective, handheld meter provides the user with quick,reliable and easy way to measure electromagnetic field (EMF) radiation levels generated by power lines, cables, computer monitors,TV sets, Video equipment and many other similar devices..
Over range indication Fast sampling rate of 2.5 times per second
EMF-701A EMF Tester (Gauss Meter)
The EMF tester is designed to provide user a quick, reliable and easy way to measure electromagnetic field radiation levels around power lines, home appliances and industrial devices.
The EMF tester is a cost effective, hand-held instrument designed and calibrated to measure electromagnetic field radiation at different bandwidths.
Display micro Tesla & milli Gauss in the same tester.
Data hold, Peak hold function
TG-900 Coating Thickness Gauge
Coating Thickness Gauge
TG-900 Features:
Automatically hold reading, when sensor leaves the surface.
Automatically measure thickness for ferrous material, when you place sensor onto the surface.
2-point calibration.
One hand operaiton- Simple and easy to be used.
Back light display
micro mini/mils user-selective.
Autopower off.
CE-approval
VD-16 Non Contact Voltage detector
VD-16 Voltage detector
* Convenient AC voltage tester that indicates the presence of AC 5 ~ 1,000V
* The Voltage tester pen can help you find broken, and live wires
* Sensitivity adjustable for non contact detection
* Able to test light sockets and locates the short circuit.
* White LED light
* Power on off switch
* Detecting red lamp alert
* The voltage tester pen is ideal for home.
* Convenient AC voltage tester that indicates the presence of AC 5 ~ 1,000V
* The Voltage tester pen can help you find broken, and live wires
* Sensitivity adjustable for non contact detection
* Able to test light sockets and locates the short circuit.
* White LED light
* Power on off switch
* Detecting red lamp alert
* The voltage tester pen is ideal for home.
