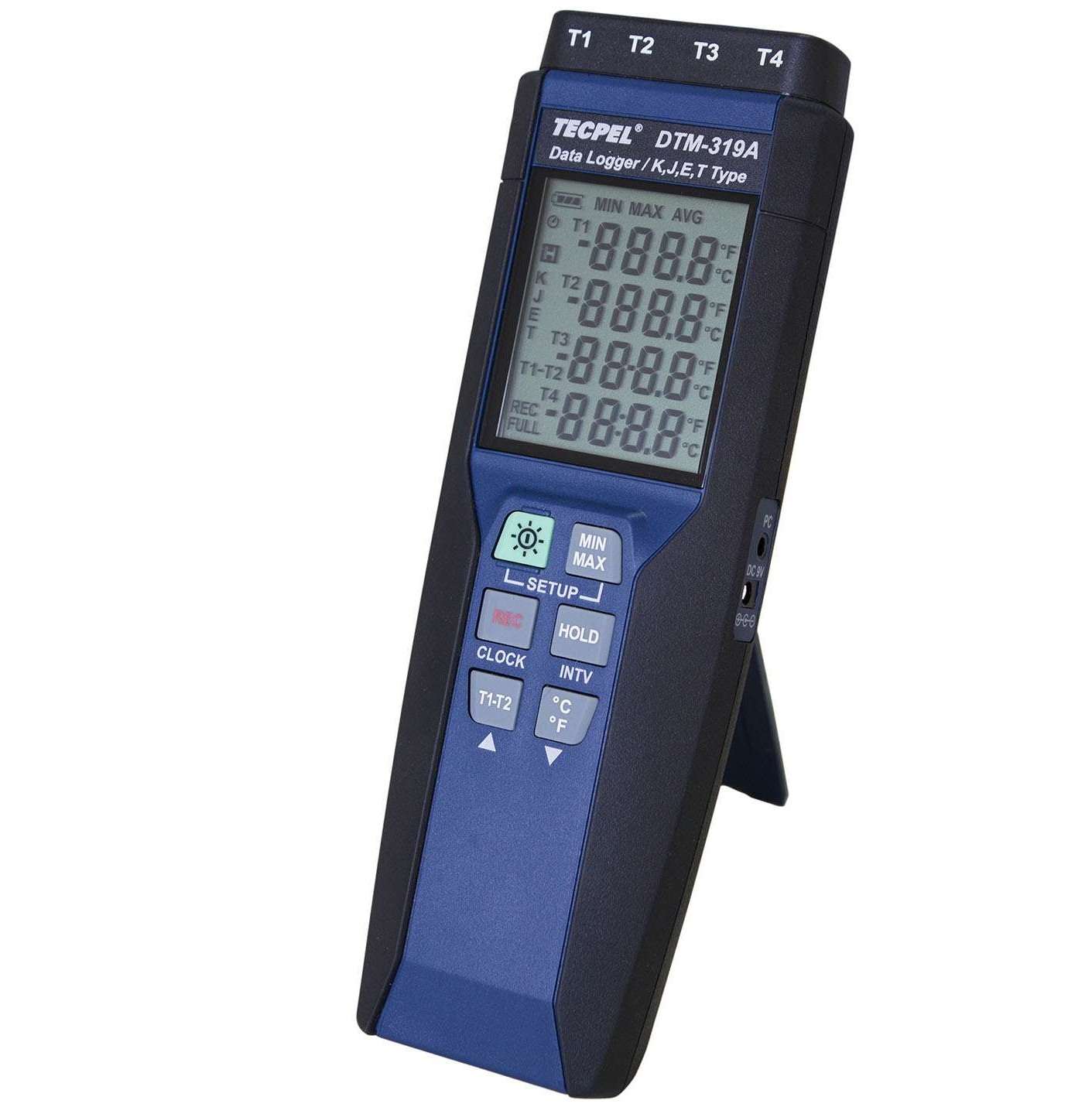

DTM-319A 4-channel K. J. E. T. Type Thermocouple Temperature Data Logger thermo recorder Product ID: DTM-319A

The 4 - Input Digital Thermometer DTM-319A is a battery-powered K, J, E, T Type temperature data logger with sensor already built inside the device. For sure, the product is a compact, which is easy for users to carry it everywhere. Furthermore, it is a practical device without difficult manipulation skills needed; customers can use this data logger in an efficient way. Last but not least, the item can measure temperature from -200°C ~ 1,372°C, which is ideal for all applications, especially in some circumstances requiring precise operation and measurement.


The temperature data logger is equipped with numerous advantages, which also make the device more convenient for users to operate. As we move on to the professional era, our continuing support through high quality standards and services for our customers worldwide will remain. To boost your business, choose TECPEL as your reliable and promising partner.

Add to Inquiry
Download
Category： Digital Thermometers, Data loggers, multiple channels, PT100, Alarm
Certificate：CE







DTM-319A is a K-type Thermocouple Temperature Data Recorder and suitable with many different K-type thermocouple probes. It can record four place's temperature at the same time . Very suitable for science experiment and products testing

Features:

  • Temperature: K:  -200°C ~ 1,370°C (-328°F ~ 2,498°F )
  • Isolated input Protection up to 250V AC between two inputs.
  • Data Logging capacity 16,000 records for each channel.
  • 4 Digit LCD display for every tested point.
  • Recording interval set up.
  • Reading hold °C or °F annunciators.
  • 4-channel thermocouples can be used
  • simultaneously and recorded.
  • MAX, MIN. Function.
  • Auto Power off
  • Hold functions.
  • Automatic low battery indication.
  • High resolution 0.1°C, 0.1°F
  • USB Computer interface.
  • Software program for Windows.
  • Standard Tripod mount connector
  • Certificate: CE

The accessory is only provided with  2 pcs TPK-01  K type thermocouples.

4-Input Temperature meter data logger
Dual Input + Data Recorder.
Temperature measurement K-type thermocouples

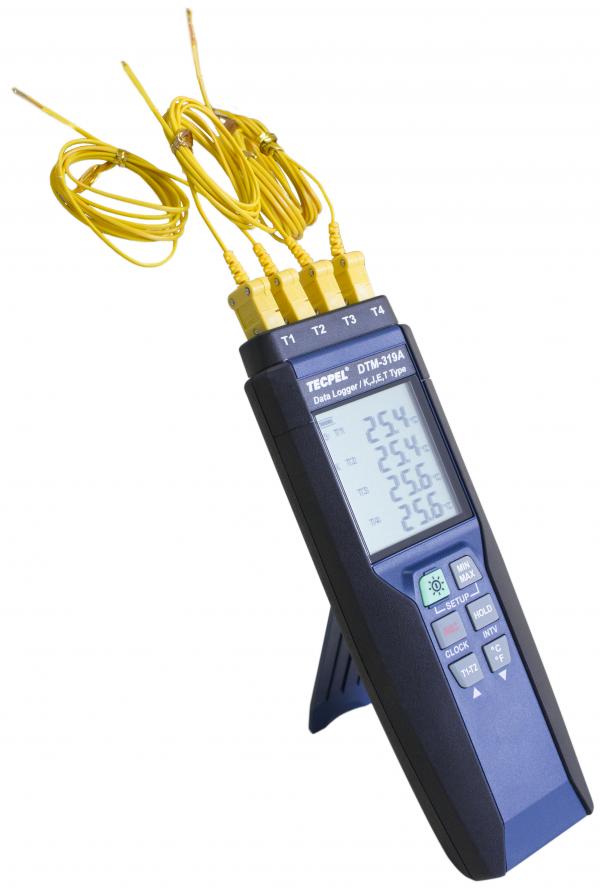

A temperature logger with 4 channels, compatible with various types of K. J. E. T. thermocouples, with 4 K-type thermocouples, and with the software included being able to download the stored information to a PC and graph it in Excel or directly with its own software of the thermometer data logger.

1.Measurement Range : -200°C ~ 1,370°C (-328°F ~ 2,498°F )

k: -200~ 1370 °C (-328 ~2501°F)

J: -150 ~1000 °C (-238 ~1832 °F)

E: -150 ~ 750 °C (-238 ~ 1382°F )

T: -180 ~ 400°C (-292~ 752°F )

2. Data Logger Accuracy :

  • ±(0.1% reading +0.7 °C); ±(0.1% reading +1.4 °F)
  • Below -100°C (-148°F) ±(0.4% reading + 0.7 °C (1.4 °F)

3. Temperature Coefficient: 0.01% of reading +0.05 °C per °C (28°C).

4. Temperature scale: °C or °F user-selectable

5.Resolution : 0.1°C or 0.1°F< 1000 ° ( >1000 ° , 1°C )

  Sensor: K, J, E, T type Thermocouple probe

6. Sampling rate: 3 seconds per testing circle

7.Input Protection : 60V DC or 24V rms AC Maximum

8. General Specifications:

9. Power Requirement: 1 piece 9V battery

10.Dimensions: 7.2"" x 2.5""x 1.2"" (184 x 64x 30mm)

11. Weight: 7.4 oz(210g)

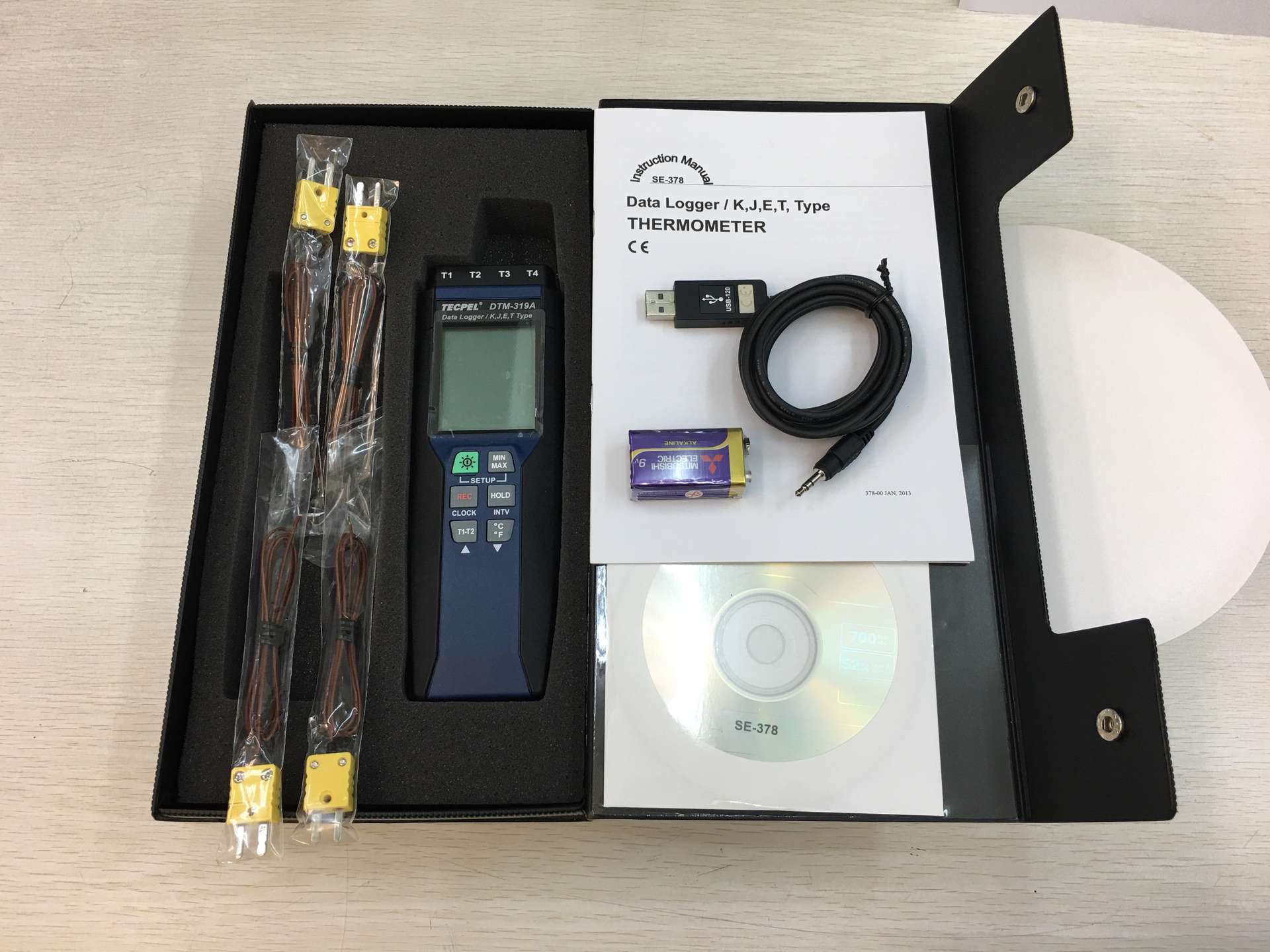

12. Accessories: RS-232 cable and software for WINDOWS), Deluxe carrying case, owners English  manual, TPK-01 bead probe x 2 pcs

13.Option Accessory: AC adaptor( DC 9V), Special Type K thermocouples

14. Certificate: CE



The above accuracy of DTM-319A is specified for ambient temperature between 18°C (64 °F) and 28°C (82°F).

The above specifications of DTM-319A do not include thermocouple sensor error.





Product Introduction

DTM-319A is a K-type Thermocouple Temperature Data Recorder and suitable with many different K-type thermocouple probes. It can record four place's temperature at the same time . Very suitable for science experiment and products testing。 Q&A 4 Input Digital Thermometer DTM-319A is a battery operated K, J, E, T type temperature data logger with the sensor embedded in the unit. As mentioned in the product description, question 1, do you need an interface card for conversion when connecting each sensor to the main body? Can the 4 sensors measure temperature because the metals are different? Question 2 Is it possible to measure temperature by installing K, J, E, and T sensors at the 4 measurement ports? Is it basic to use the same sensor in all 4 places? to customers, Regarding the first question: DTM-319A thermocouple thermometer can use K, J, E, T four thermocouple temperature wires. When using, DTM-319A can only use 1 specification, so all 4 input signals need the same thermocouple format. For example, 4 k-TYPE thermocouple wires can be used. Regarding the second question: Different thermocouple wires cannot be used at the same time. When using different thermocouples, the signals of the 3 thermocouples other than the ones set correctly are inaccurate, so the displayed temperature will be different. The greater the difference between the measured temperature and the ambient temperature, the greater the error displayed on the thermometer. The error can be hundreds of degrees. Hope the above can be used as a reference.

Measurement Specification

Product Features

  • MAXIMUM AND MINIMUM FUNCTION :
  • T1 T2 DIFFERENCE (T1-T2) :
  • TEMPERATURE UNIT SELECTABLE : °C／°F
  • HOLD (HOLD) :
  • LOW BATTERY INDICATOR :
  • AUTO SHUT OFF : 30 Minutes
  • BACK LIGHT DISPLAY :
  • TRIPOD PLACED HOLE :
