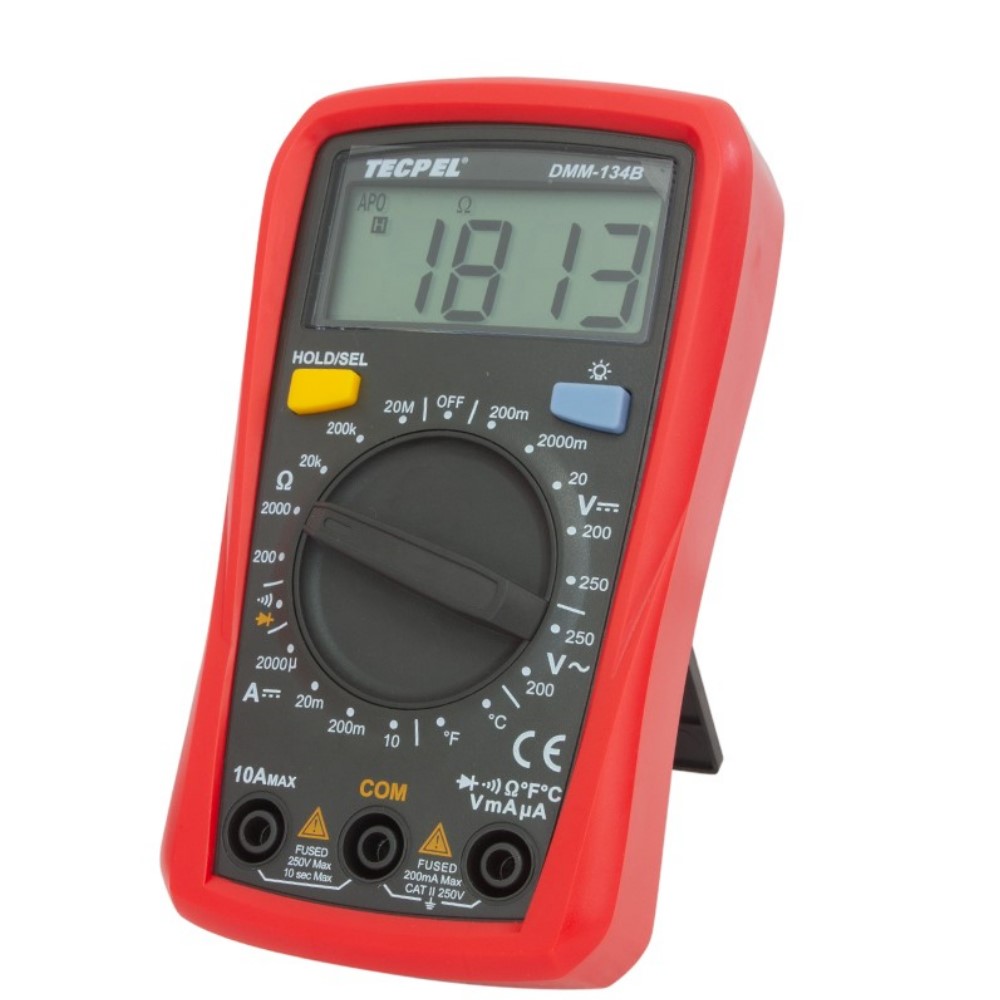

DMM-134 Digital Multimeter with temperature Product ID: DMM-134

Palm Size Digital Multimeter is manufactured by the Tecpel Company. It has a -40oC ~ 1832oC of temperature measurement, and the resistance measures up to 200 M 0hm. The voltage measurement of this device ranges at around 10 MW, with a maximum display of 1999. This product also has a standard accessories test lead, battery, and english manual.

Palm Size Digital Multimeter
1. 3 1/2 digits, Max 1,999 counts display
2. 7 Functions, 19 ranges
3. Temperature measurement -40oC ~ 1832oC.
4. Resistance Measurement up to 200M Ohm
5. Continuity Beeper
6. Data Hold Function.

Category: Multimeters
Certificate:CE
​Specifications:
Model Type : DMM-134
  • Palm Size Digital Multimeters
  • SPECIFICATIONS Basic Functions Range Best Accuracy
  • DC Voltage  2000mV/20V/200V/250V (0.5%+2)
  • AC Voltage 200V/250V (1.2%+10)
  • DC Current 2000mA/20mA/200mA/10A (1%+2)
  • Resistance 200Ohm/2000Ohm /20kOhm /200k Ohm/20MOhm (0.8%+2)
  • Temperature (oC) -40oC ~ 1000oC (1%+3)
  • Temperature (oF) -40oC ~ 1832oC (1%+4)
Special Functions
  • Diode
  • Continuity Buzzer
  • Data Hold
  • Display Backlight
  • Low Battery Display
  • Input Impedance for DC
  • Voltage Measurement Around 10MW
  • Max. Display 1999
GENERAL CHARACTERISTICS
  • Power 9V Battery (6F22)
  • LCD Size 48 x 16mm
  • Product Colour Yellow and Grey
  • Product Net Weight Around 156g
  • Product Size 130 x 73.5 x 35mm
  • Standard Accessories Test Lead, Battery, English Manual,
  • Point Contact Temperature Probe, Holster
  • Standard Individual Packing Gift Box
  • Standard Quantity Per Carton 60 pcs
  • Standard Carton Measurement Around 486 x 345 x 310 mm
  • (Around 0.052 CBM Per Standard Carton)
  • Standard Carton Gross Weight Around 18kg
