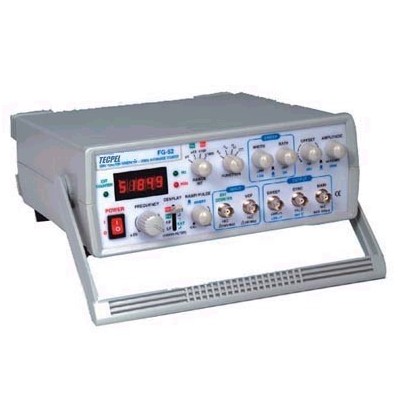

FG-52 5MHz Function Signal Generator Product ID: FG-52

0.05Hz ~ 5MHz Function Generator
Linear/Log Sweep Function
Duty Cycle Control
Invert Function
Auto Range Auto Gatetime Counter
0.001Hz Counter Resolution

Add to Inquiry
Category： Function Generators, synthesized function generator
Certificate：CE
  • Main Output
    • Frequence Range : 0.5Hz to 5MHz in 8 Range
    • Waveforms: 4 Waveforms(Sins, Square, Triangle, DC)
    • Amplftude : 20Vp-p / Open, 10Vp-p / 50 Ohm Load
    • Attenuator : X20 (-26dB) +/- 2%, X1 (0dB)
    • Output Impedance : 50 Ohm (+/- 2%)
    • DC Offect: +/- 10V With Pull ADJ Switch
    • Freq Accuracy : +/- 0.02% + ID
    • Distortion :Rise / Fall Time:V.C.F Input: 0 to +/- 10V control frequency to 1000:1
  • SYNC Output
    • Rise time :Level: >3Vp-p (open)
    • Wavefrom : Square, pluse
  • Sweep
    • MODE : Linear / Log Sweep
    • Width : >100:1 continuously variable
    • Rate : From 10mS to 5S continuously variable
    • Sweekp Output :10Vp-p (open)
    • Output Impedance: 1K Ohm +/- 2%
  • Counter
    • Desplay: 5digits 0.36"" Red LED desplay with Autorange
    • Gate time: Auto Select (0.25S~10S)
    • Resolution: 0.001Hz
    • MODE: INT / EXT HF / EXT LF (100KHz Filter)
    • Accuracy: +/- Time Base Accuracy +/- 1count
    • Time Base: 20MHz +/- 20PPM (23+/- 5 deg C)
    • Frequence Range: 0.2Hz~50MHz
    • Sensitivity: 25m Vrms at 1MHz
    • Max Input: 150Vrms
    • Input Impedance: 1M Ohm +/- 2%
  • General
    • AC Power : AC115V/230V +/- 10%, 50/60Hz, 25watt
    • Dimensions: 275(W) X 90(H) X 300(D) mm
    • Weight: 2.5kg
