CL-327A Process Calibrator

CL-327A Process Calibrator Product ID: CL-327A

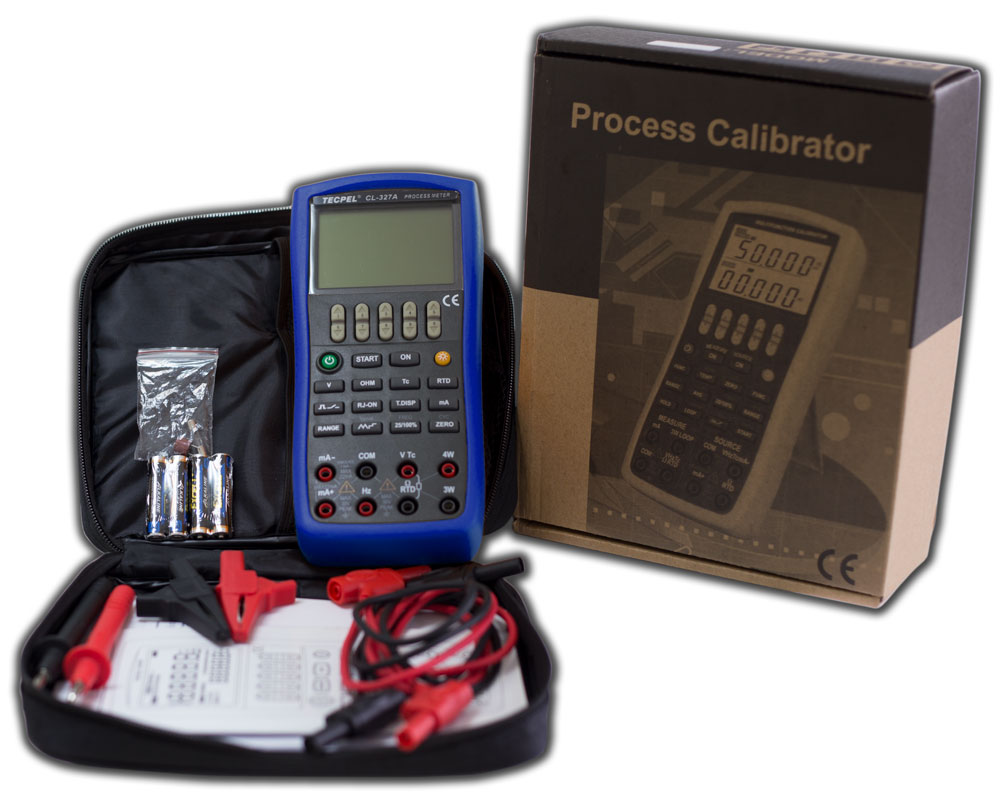

The  NEW  Tecpel® CL-327A  is a battery-powered, hand-held process calibrator that allows process technicians to simulate and source  variables signals. Output signals including DC voltage, DC current, ohms, analog transmitters, thermocouple, RTD, frequency, pulse, Switch On-OFF,  are widely used in measurement and calibration for industrial field and laboratory application, it is one of necessary tools used to test and calibrate industrial automation systems and instruments. Get your job done fast and get it done precisely at affordable price. Your right choice!


Process Calibrator CL-327A

general characteristics:
1, The basic accuracy of the output of up to 0.02%, the output is displayed as 6 digit
2, The output functions: DC voltage, DC current, ohms, analog transmitters, thermocouple, RTD, frequency, pulse, Switch On-OFF
3, The DC current output, can provide 25 percent and 100 percent of manual stepping, automatic step and auto ramp output function
4, The thermocouple output, can provide high-precision automatic cold junction compensation, ℃ or ℉ temperature display
5, Outside with high-precision temperature probe, accuracy: ± 0.2 ℃
6, Large-screen LCD display multiple data can be displayed simultaneously: DC current and % values, thermocouples, temperature values of thermal resistance and the corresponding indexing values, etc.
7, The operating performance is superior keyboard configuration, set the value corresponding to the output bit  setting change keys and LCD display.

*Working temperature and humidity
              0 to 50ºC, ≤80% RH non-condensing
              40 to 50ºC, ≤70% RH
*Storage temperature and humidity
             -25 To 60ºC, ≤90% RH non-condensing
*Display and backlight
              * Segment LCD dual display
              * White LED backlight
*power supply
               * 4 x 1.5V AAA alkaline batteries
               * Automatic shutdown: can set auto-off time from 0 to 60 minutes
*Size and Weight
              205 × 95 × 42 (mm), approximately 500g
