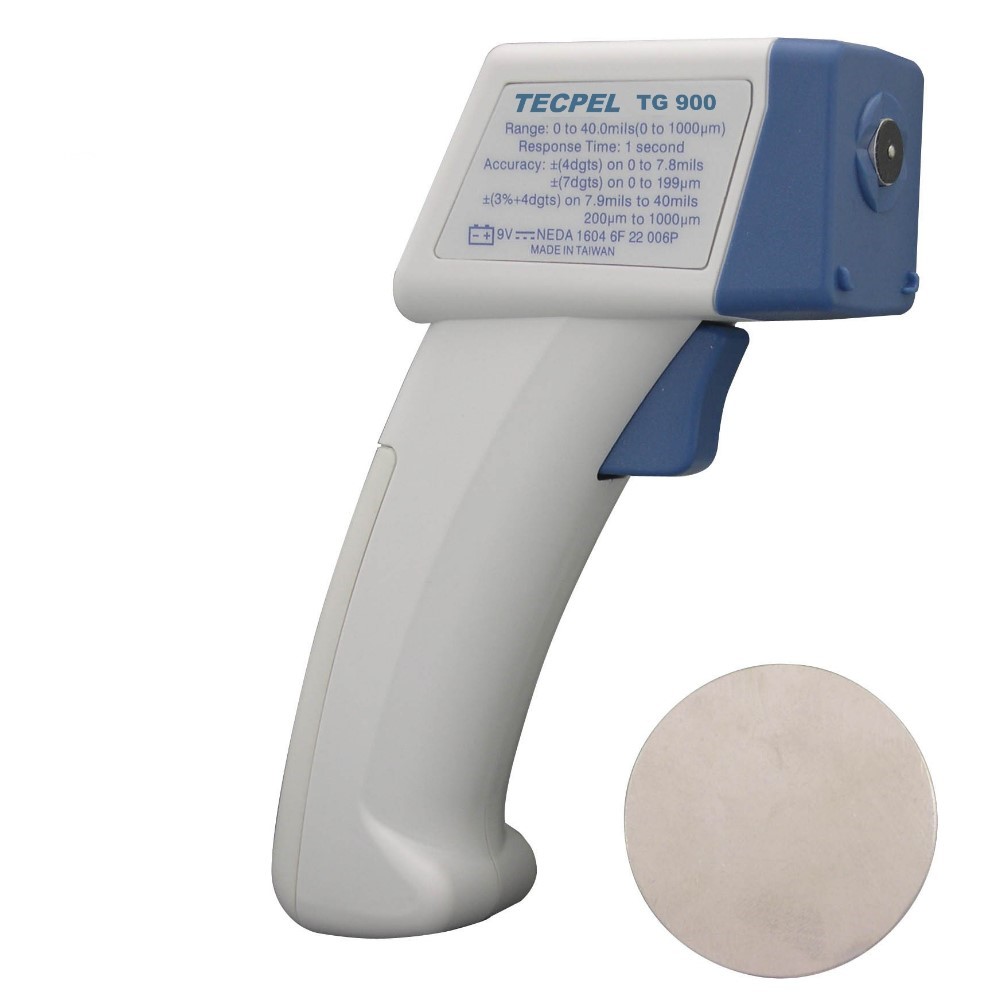

TG-900 Coating Thickness Gauge Product ID: TG-900

Coating Thickness Gauge

TG-900 Features:

Automatically hold reading, when sensor leaves the surface.

Automatically measure thickness for ferrous material, when you place sensor onto the surface.

2-point calibration.

One hand operaiton- Simple and easy to be used.

Back light display

micro mini/mils user-selective.

Autopower off.

CE-approval

Certificate:CE
  • Model: TG-900
    • Range 0 to 40.0 mils ( 0 to 1000 micro m)
    • Resolution 0.1 mils/ 1 micro m
    • Response time 1 second
    • Accuracy +/- 4 digits on 0 to 7.8 mils
    • +/-7 digits on 0 to 199 micro m.
    • +/-(3% + 4 digits) on 7.9 mils to 40mils(200 micro m to 1000 micro m)
    • specified at 23 ℃ +/- 5 ℃ ,
  • General
    • Display 3 1/2 digit liquid crystal display (LCD) with a maximum reading of 1999.
    • Low battery indication the "" Battery "" symbol is displayed when the battery voltage drops below the operating level.
    • Operating environment 0 to 50 ℃ (32 ℉ ~ 122 ℉) ambient at < 75% relative humidity.
    • Store temperature 0 to 60 ℃ (32 ℉ ~ 140 ℉) ambient , 0to 80% R.H. with battery revoved from meter.
    • Auto power off 10 seconds
    • Dimensions 148 mm(H) x 105mm(W) x 42 mm(D)
    • Accessory Soft carrying bag, Standard thickness plate 3.9 mils (100 micron), 9V battery

TG-900 Features:

1.Automatically hold reading, when sensor leaves the surface.

2.Automatically measure thickness for ferrous material, when you place sensor onto the surface.

3.2-point calibration.

4.One hand operaiton- Simple and easy to be used.

5.Back light display

6.micro mini/mils user-selective.

7.Autopower off.

8.CE-approval




Q&A:

What's the difference between TG-900 (Ferrous material ) and TG-902 (for Ferrous and non Ferrous material).

For example TG-900 is iron and TG-902 is for both iron and aluminum material.

Ans:  Basically, the background substance should be ferrous material or non ferrous material and its coating should be non-conductive material painting.



Q&A:
I am writing to ask you about the product of TECPEL “TG-902 Coating Thickness Gauge”. Can this meter measure conductive coatings on non-ferrous metals like tin coating on copper. Also which method (Ex Eddy current method) does this meter use to measure coating thickness on non-ferrous metals. Your earliest response in this regard will be highly appreciated.

Ans:

No, TG-902 cannot meausre conductive coatings on non-ferrous material.
Only non-conductive coatings on ferrous or non-ferrous material.
