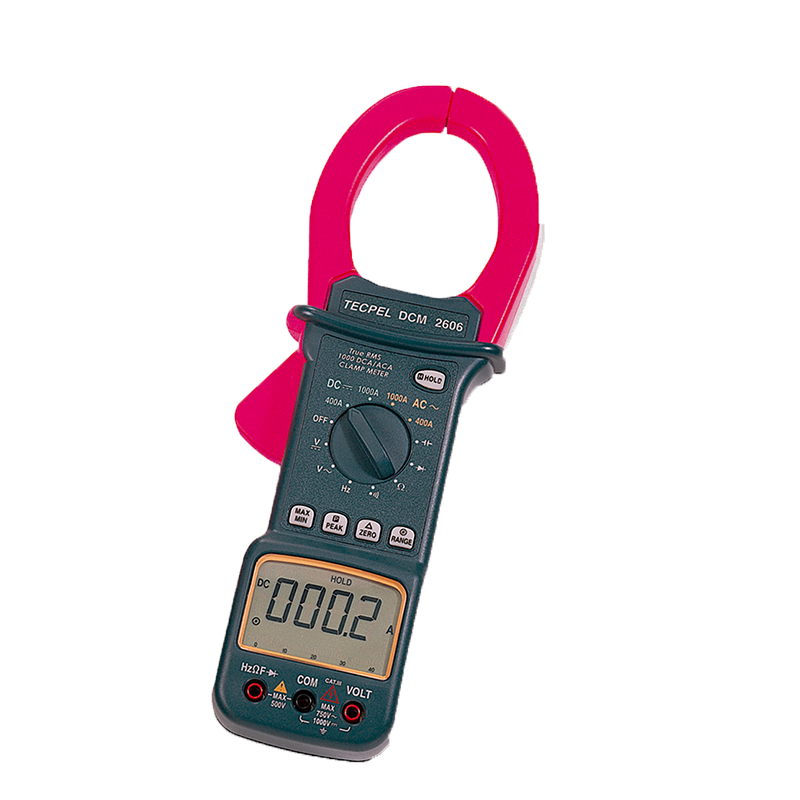

DCM-2606 Digital AC DC Current Clamp Meter True RMS Product ID: DCM-2606

The digital Clamp Meter is an electrical meter with integral AC current clamp. In order to use it properly, the normal usage is only one conductor passed through the probe. With over 20 years experience, our products have been accepted by some well-known international customers. The clamp meter is often equipped with a device plugged in between the power outlet and the device to be tested.

This model has been discontinued and replaced by DCM-2608D
https://tecpel.com/EN/products-details/no/1625812392001

Certificate:CE


This model has been discontinued and replaced by DCM-2608D
https://tecpel.com/EN/products-details/no/1625812392001
  • Specifications of DCM-2606 Clamp Meter
    • DC Voltage Ranges:
    • 400mV,4V,40V,400V,1000V, +/-(0.5%+1dgt)
    • AC Voltage Ranges:
    • True RMS 400mV,4V,40V,400V,750V,+/-(1.5%+4dgts)
    • AC Current Ranges:
    • True RMS 400A,1000A,+/-(1.5%+5dgts)
    • DC Current Ranges:
    • 400A,1000A,+/-(1.5%+5dgts)
    • Clamp Meter Resistance Ranges:
    • 400 ,4k,40k,400k,4M ,40M ,+/-(1%+2dgts)
    • Frequency Ranges:
    • 100,1k,10k,100k,400kHz, +/-(0.5%+3dgts)
    • Continuity Test:
    • Audible indication 400 Ohm,Threshold
    • General
    • Power Requirement:
    • One 9V battery
    • Dimensions:
    • 10.8""x3.6""x1.7"" (275x90x43mm)
    • Weight:17 oz(482g)
    • Accessories:
    • Test leads, soft carrying case, battery, and owners manual
The followings are the features of our DCM-2606 products:


 DCM-2606:
  • 1000A Amp AC/DC True R.M.S.
  • 3 3/4 digit display with bargraph
  • AC/DC current up to 1000A
  • AC voltage up to 750V
  • DC voltage up to 1000V
  • Display hold function
  • True-RMS reading
  • Diode test
  • Carrying case
  • Audible continuity test
  • Overrange indication
  • Frequency up to 400KHz
  • Capacitance measurement
  • Resistance up to 40M ohm
  • Relative mode to read offset values (Zero △Key)
  • Peak hold for transient measurements
  • Max/Min recording mode Model: DCM 2606
  • Confirm to the IEC-1010-1, UL1244/UL3111, CE standard
  • Handguard protection
