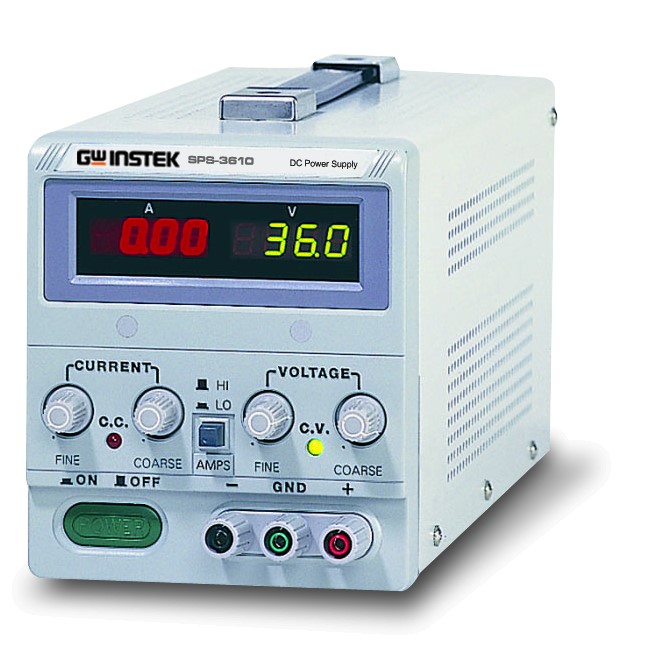

SPS-3610 Switching DC Power Supply Product ID: SPS-3610 GWINSTEK

The SPS-Series is a single output, 360W, switching DC power supplies. OVP protects the SPS-Series and their loads from unexpected conditions. High regulation is maintained at 0.01%. Remote sensing adds an extra level of precision by compensating cable losses between loads. Turning the output On/Off from an external device is available through remote control terminals. The SPS-Series is an ideal solution for power-efficient bench-top or portable applications requiring high regulation.

Features
Dual Measurement Display
0.01 % High Regulation
Constant Voltage and Constant Current Operation
High Efficiency
High Power Density
Over Voltage Protection
Remote Output ON/OFF Control

OUTPUT
SPS-1230 / SPS-1820/ SPS-2415 / SPS-3610 / SPS-606
Voltage 0~12V / 0~18V / 0~24 V / 0~36V /0~60V
Current 0~30A / 0~20A / 0~15A / 0~10A /0~6A
CONSTANT VOLTAGE OPERATION
Line Regulation < 5mV
Load Regulation < 5mV
Ripple & Noise < 5mVrms, 100mVp-p 20Hz ~ 20MHz
Recovery Time < 500μS ( 50% Load change, Minimum load 0.5A )
Temp. Coefficient < 100 ppm/°C
Output Range 0 to rating voltage continuously adjustable
CONSTANT CURRENT OPERATION
Line Regulation < 3mA
Load Regulation < 3mA
Ripple Current < 3mArms (SPS-606)
< 5mArms (SPS-3610)
< 10mArms (SPS-2415)
< 10mArms (SPS-1820)
< 30mArms (SPS-1230)
Output Range 0 to rating current continuously adjustable (Hi/Lo range switchable)
METER
Type 3 1/2 Digit 0.39" LED Display
Accuracy ±( 0.5% of rdg + 2 digits )
INSULATION
Chassis and Terminal 20MΩ or above (DC 500V)
Chassis and AC Cord 30MΩ or above (DC 500V)
POWER SOURCE
AC 115V/230V ±15%, 50/60Hz
DIMENSIONS & WEIGHT
128(W) x 145(H) x 285(D)mm
Approx. 3.2kg

Category: DC Power Supplies
Certificate:CE
