HVP-40M Analog High Voltage Meter / HVP-40DM Digital high voltage meter Product ID: HVP-40M

HPV-40M from Tecpel is a high voltage test probe.It can easily connect to any digital multimeter with industry-standard jacks to measure up to 40K VDC or peak AC or 28KV RMS AC.

Model: HVP-40M

Features:
DC 40KV CAT II Pollution 2
600M Ohm Impedance
25KV ± 2%, 40KV ± 3%
T.C. 200 ppm/°C.
Positive Polarity only.
Resolution 1KV
No Need power.
CE, IEC1010

Add to Inquiry
Category： Digital handheld/Benchtop Multimeters, 4 1/2 , 5 1/2 digit , TRMS,
Certificate：CE

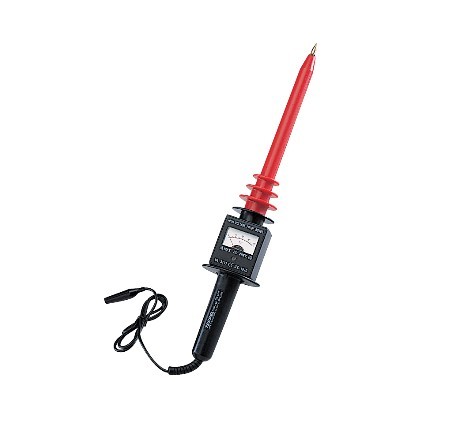

HVP-40M Analog High Voltag probe

SPECIFICATIONS ( 20 ± 5°C, RH < 80% )

  • Input impedance: 600M Ohm
  • Maximum operation voltage:40KV DC , CAT II , Pollution 2
  • Polarity:Positive only
  • Display:Analog indicate
  • Accuracy:Factory calibrater 25KV ± 2%
  • FULL scale 40KV ± 3 %
  • Temperature Coefficient:Maximum loading Current:Maximum loading power:Voltage Range:40KV / 1 Range
  • Voltage resolution:1KV
  • Power source:Need not power
  • Operating temperature:0 °C ~ + 50 °C.
  • Storage temperature:- 20 °C ~ + 70 °C.
  • Ground lead length:90cm ( 35 "" )
  • Dimensions:420 L x 80 ø
  • Weight:360g

--------------------------------------------------------------------------------------------------------------------------------------------------------------
Other recomended digital High Voltage meter.

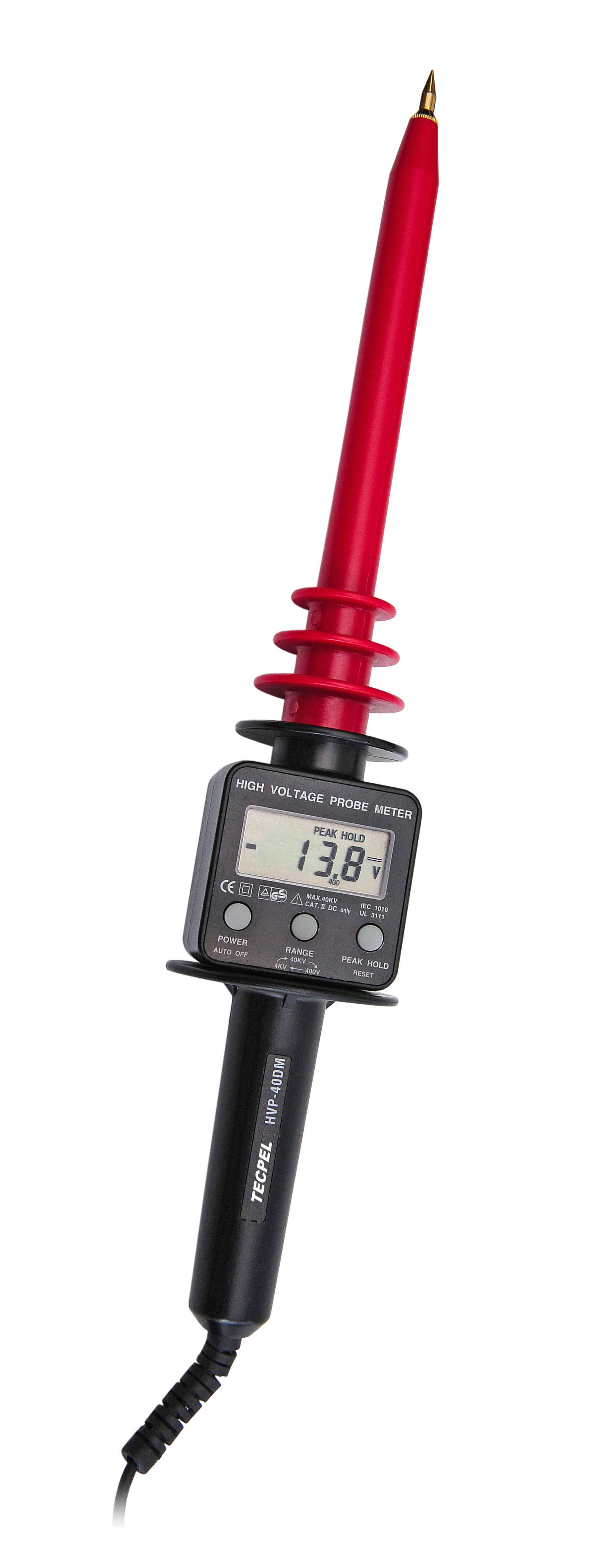

HVP-40DM Digital High Voltage meter

SPECIFICATIONS ( 20 ± 5℃, RH < 80% )

  • Input impedance:2000MΩ
  • Maximum operation voltage:40KV DC , CAT II , Pollution 2
  • Polarity:Positive / Negative
  • Display:3999 digital, LCD
  • Accuracy:Full Range ≦ 1.0% ± 2 digital
  • Temperature Coefficient:≦ 100ppm / ℃
  • Maximum loading Current:≦ 20μA
  • Maximum loading power:≦ 0.8 watt
  • Voltage Range:40KV / 4KV / 400V / 3 Range
  • Voltage resolution:10V / 1V / 0.1V
  • Power source:9V / 006P, IEC6L R1, NEDA 1604A
  • Low battery Indicate:≦7.3V Auto Indicate
  • Battery Life:About 200hr ( ALKALI )
  • Auto power off:About 30 mim
  • PEAK HOLD:≧ 400 ms
  • Sampling:4 Sampling / sec
  • Operating temperature:0 ℃ ~ + 50 ℃
  • Storage temperature:- 20 ℃ ~ + 70 ℃
  • Ground lead length:90cm ( 35 "" )
  • Dimensions:420 L x 80ψ
  • Weight:360g
  • DC 40KV CAT II Pollution 2
  • 600M Ohm Impedance
  • 25KV ± 2%, 40KV ± 3%
  • T.C. 200 ppm/°C.
  • Positive Polarity only.
  • Resolution 1KV
  • No Need power.
  • CE,   IEC1010
