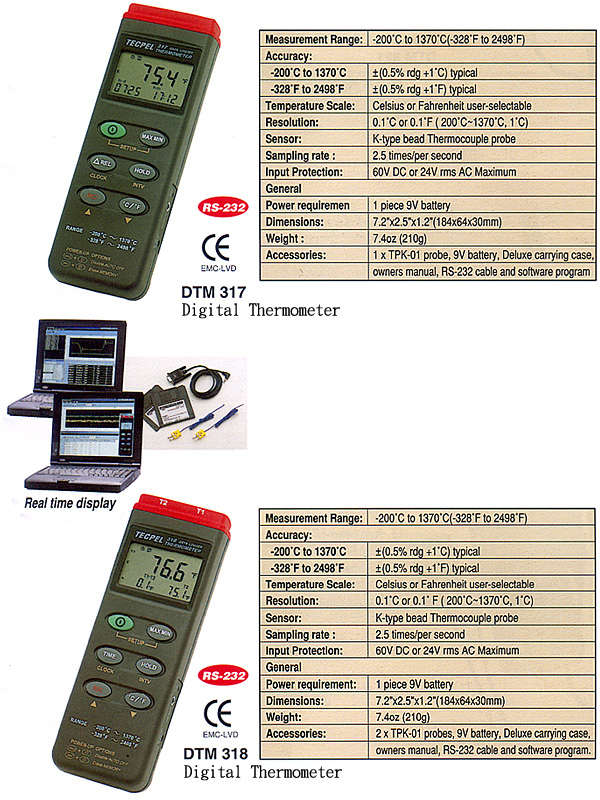

DTM-317 Digital single channel thermo data logger Product ID: DTM-317

DTM-317: Single Input + Data Recorder.


The DTM-317 by Tecpel Co. is a hand-held temperature data logger which comes with an operating temperature of -200°C ~ 1,370°C (-328°F ~ 2,498°F). For data logging capacity, it can log about 16,000 records which can be easily seen through its 4 digit LCD that has a timer display.

Category: Thermometers
Certificate:CE
Digital Thermometer  Single Input + Timer
Model : DTM-317

Specifications :

Measurement Range: -200 °C ~ 1,370°C (-328 °F ~ 2498 °F).

Accuracy: -200 °C ~ 1,370°C  ±(0.5%rdg +1 °C ) typical
                 -328 °F ~ 2498 °F   ±(0.5%rdg +1 °F) typical

Temperature Scale: Celsius or Fahrenheit user-selectable

Resolution:1 °C or 1 °F  (-200.0 °C ~ 199.9 °C , 0.1 °C )

Sensor: K­ type Thermocouple

Sampling rate: 2.5 times/per second

General Power Requirement: 1 piece 9V battery

Dimensions: 7.2""x2.5""x1.2"" (184x64x30mm)

Weight: 7.4 oz(210g)

Accessories:
TPK-01x1, delux  carrying case,SE-300 software/ RS-232 cable and owners manual.
  • DTM-317:
    • -200°C ~ 1,370°C (-328°F ~ 2,498°F)
    • Data Logging capacity 16,000 records.
    • 4 Digit LCD, Triple display.
    • Timer display.
    • Recording interval setup.
    • Reading hold °C or °F annunciators.
    • Single K-type thermocouple input.
    • MAX, MIN. function.
    • Auto Power off.
    • Hold, ΔREL functions.
    • Automatic low battery indication.
    • High resolution 0.1°C, 0.1°F
    • RS-232 Computer interface.
    • USB cable (optional)
    • Software program for Windows.
