TR-74Ui T and D Accumulating UV Light, Humidity and Temperature Data Logger

TR-74Ui T and D Accumulating UV Light, Humidity and Temperature Data Logger Product ID: TR-74Ui, TR-74Ui-S( Higher accuracy)

Measurement Items

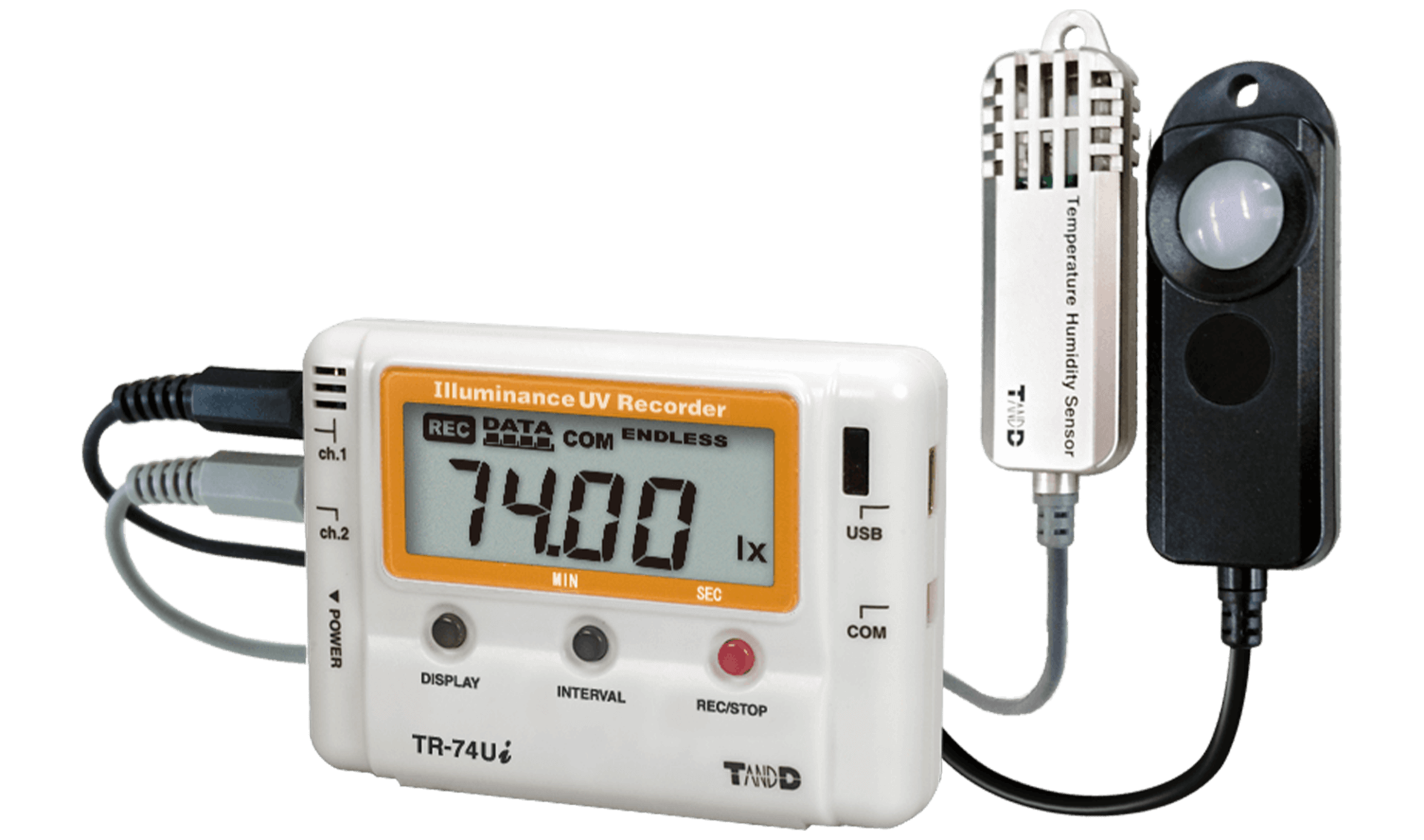

The "TR-74Ui Illuminance UV Recorder" is a data logger designed to simultaneously measure and record four items: Illuminance, Ultraviolet Light (UV), Temperature and Humidity. In addition to these, the TR-74Ui is also capable of displaying Cumulative Illuminance and Cumulative Amount of Ultraviolet Light in the LCD display. From dim moonlight to the summer sun, Illuminance can be measured within a wide range.

The product is an all-in-one package that includes the data logger unit, sensors and software. We offer two types of packages with different temperature/humidity sensors depending on your required measurement range and accuracy needs.

Simply by connecting to a PC via a USB connection and carrying out a few easy steps, the measurement and recording of data can be started.

Not only can recorded data be easily downloaded to a PC via USB communication, but it can also be collected from data loggers via infrared communication to our T&D Data Collector TR-57DCi (sold separately). The TR-57DCi enables the user to gather and check recorded data on the spot without having to manually gather the data loggers.

Application Examples

* In art museums and other exhibit forums to manage illuminosity and help prevent deterioration of exhibits

* Management during all aspects of plant and food production

* For use in the development, testing, manufacture and sales of products for cutting UV rays

* UV reduction management in schools from kindergartens to universities

* For home and office use in the management or illuminosity and UV rays

* Design and management of homes and architectural buildings

* For managing the reduction of UV rays at swimming pools, the ocean, mountains and in parks

* For management and adjustment of illuminosity for photography and film

* For management in the production, storage and sales of foodstuffs and beverages

* For use at supermarkets, convenience stores and drugstores in UV product sales promotion materials

Measure and Record Illuminance, Ultraviolet Light (UV), Temperature and Humidity

Temperature/Humidity Sensor Selection

View Cumulative Illuminance and Cumulative Amount of Ultraviolet Light in LCD Display

Measure Illuminance within Wide Range

View and record Illuminance in Resolutions to 0.01 lx

Simultaneously View Four Measurement in One Easy-to-Read Graph

Large Logging Capacity: 8,000 Data Sets

Transmit Recorded Data to PC via USB Connection

Measure and Record Illuminance, Ultraviolet Light (UV), Temperature and Humidity

TR-74Ui Illuminance UV Recorder is a data logger designed to simultaneously measure and record four items: Illuminance, Ultraviolet Light (UV), Temperature and Humidity. This versatile data logger can be applied in a wide range of applications, from business to personal use.

Temperature/Humidity Sensor Selection

The TR-74Ui standard package includes our THA-3151 Temperature/Humidity Sensor and the TR-74Ui-H high precision package includes our HHA-3151 Temperature/Humidity Sensor.

View Cumulative Illuminance and Cumulative Amount of Ultraviolet Light in LCD Display

In addition to Illuminance, Ultraviolet Light (UV), Temperature and Humidity, the TR-74Ui is also capable of displaying Cumulative Illuminance and Cumulative Amount of Ultraviolet Light in the LCD display.

Cumulative Illuminance Display Range: 0 to 90,000,000 lxh

Cumulative Amount of Ultraviolet Light Display Range: 0 to 62W/cm2h

Measure Illuminance within Wide Range

From dim moonlight to the summer sun, Illuminance can be measured within a wide range.

Illuminance Measurement Range: 0 to 130,000 lx

View and record Illuminance in Resolutions to 0.01 lx

High resolutions of up to 0.01 lx make it possible to measure even under less light conditions.

Simultaneously View Four Measurement in One Easy-to-Read Graph

The recorded data downloaded from TR-74Ui Units is read by the Multi-scale Graph and the data of four items, Illuminance, Ultraviolet Light (UV), Temperature and Humidity, can be simultaneously viewed in graph or tabular form as well as printed or output.

Large Logging Capacity: 8,000 Data Sets
The TR-74Ui Illuminance UV Recorder can measure and record up to 8,000 data sets. (One data set consists of readings for all channels: Illuminance, Ultraviolet Light, Temperature and Humidity.)

At the longest recording interval of 60 minutes, a Unit can record one year's worth of measurements.
* The battery life for a TR-74Ui Unit is about 6 months. In order to record measurements consecutively for 1 year, the battery should be periodically changed.

Battery life varies depending upon the type of battery, the battery performance, the measuring environment, and the frequency of communication.
Transmit Recorded Data to PC via USB Connection
It is possible to connect a TR-74Ui Unit directly to your computer with a USB cable.
If the computer has more than one USB port, it is possible to connect multiple TR-74Ui Units to one computer at the same time.
Connecting more than one TR-74Ui Unit at a time can only be done if using Windows 7 and Windows Vista.
Moreover, it is possible to gather current readings from the TR-74Ui connected to your computer and view those readings in the computer display.
