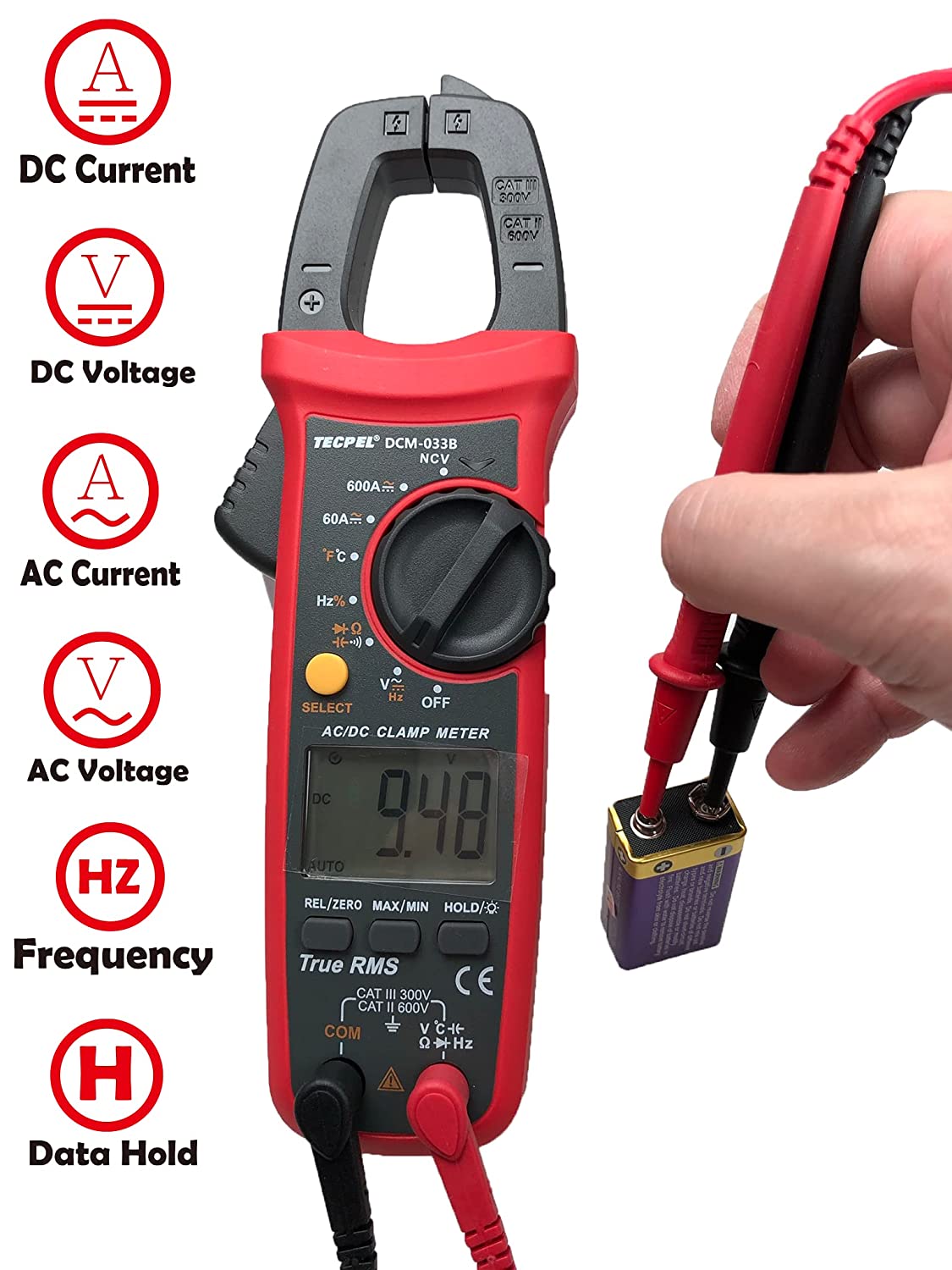

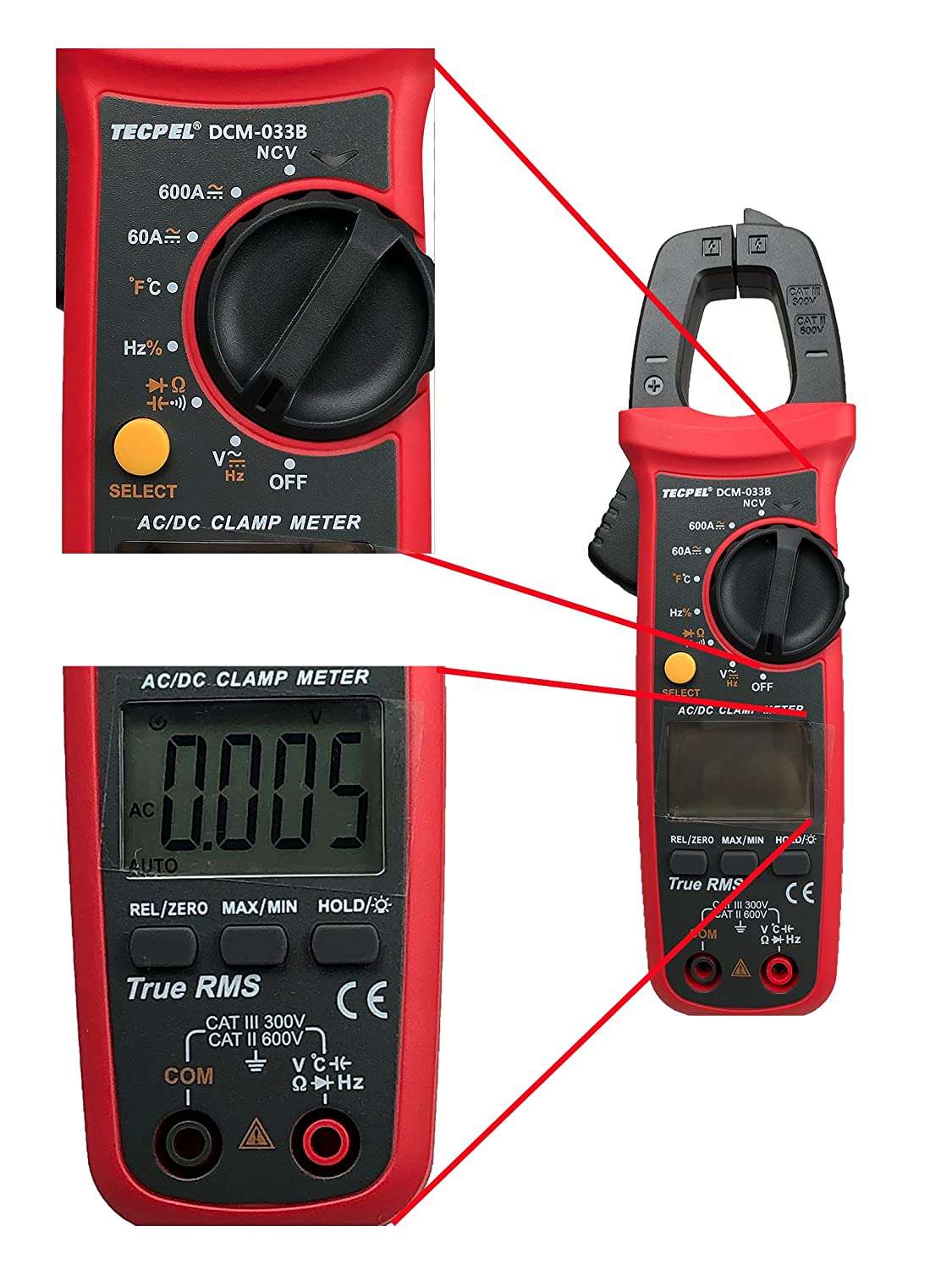

DCM-033B 6000 Count Digital Clamp Meter Product ID: DCM-033B

* 6000 Count
* True RMS
* Small Current Measurement
* 60mF Cap. measurement
* LCD backlight
* Jaw opening 28mm

DCM-032B/DCM-033B series Hand-held automatic shifting true effective value digital hook meter. It designed in accordance with the safety standard EN61010-2010 CAT II600V/CAT III 300V level with full-function gear anti-burn protection which can meet high reliability and High safety operation requirements;

The product contains the basic functions of electrical measurement with high-precision measurement and extended temperature measurement functions. The more novel appearance design makes it an excellent measurement tool for electronic motors with superior performance.

Certificate:CE




Function Range Accuracy
AC Current(A) 0.06〜600A ±(2%+ 5)
DC Current  (A) 0.06〜600A ±(2%+ 5)
AC Voltage(V) 600V ±(0.8%+ 5)
AC Voltage Frequency(Hz) 10Hz~60kHz ±(0.5%+ 2)
DC Voltage(V) 600V ±(0.5%+ 2)
Resistance(Ω) 60 MΩ ±(0.8%+ 2)
Capacitance ( F) 60mF ±(4%+ 5)
Temperature(℃) -40~1000℃ ±(1.5%+ 5)
Frequency(Hz) 10Hz~10MHz ±(0.1%+ 4)
Digits Display   6000
DCM-033B AC/DC Digital Clamp Meter. it is an alternating current tester with a 6000 digits display. The minimum displayable is 0.01A.

LCD Back Light   √
Automatic Shift   √
Hook Opening   28mm
True RMS   √
NCV   √
Beeper   √
Diode   √
Max / min   √
Relative Mode   √
ero Mode   √
Data Hold   √
ow Battery Indicator   √
Auto Shut off   √
Battery 1.5V Battery(AAA)x 2
Weight 235g
Dimension 215mmx 63mmx 36mm
Accessory Battery, Test lead, Thermocouple, Manual

Function Range Accuracy
AC Current(A) 0.06〜600A ±(2%+ 5)
DC Current  (A) 0.06〜600A ±(2%+ 5)
AC Voltage(V) 600V ±(0.8%+ 5)
AC Voltage Frequency(Hz) 10Hz~60kHz ±(0.5%+ 2)
DC Voltage(V) 600V ±(0.5%+ 2)
Resistance(Ω) 60 MΩ ±(0.8%+ 2)
Capacitance ( F) 60mF ±(4%+ 5)
Temperature(℃) -40~1000℃ ±(1.5%+ 5)
Frequency(Hz) 10Hz~10MHz ±(0.1%+ 4)
Digits Display   6000
LCD Back Light
Automatic Shift
Hook Opening   28mm
True RMS
NCV
Beeper
Diode
Max / min
Relative Mode
Zero Mode
Data Hold
Low Battery Indicator
Auto Shut off
Battery 1.5V Battery(AAA)x 2
Weight 235g
Dimension 215mmx 63mmx 36mm
Accessory Battery, Test lead, Thermocouple, Manual
