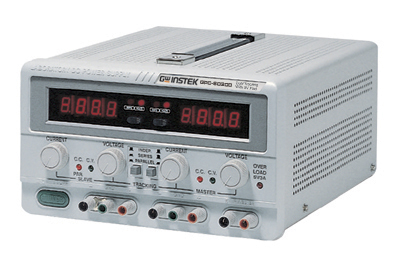

GPC-3060D, GPC-6030D, 0-30V, 0- 6A Digital DC Power Supply Product ID: GPC-3060D, GPC-6030D,
GPC-3060D, GPC-6030D, 0-30V, 0- 6A Digital DC Power Supply
Features
Triple Output
Auto Tracking
Auto Series and Parallel Operation
Constant Voltage and Constant Current Operation
Low Ripple and Noise
Internal Select for Continuous or Dynamic Load
Overload and Reverse Polarity Protection
3 1/2 Digits 0.5" LED Display
5V, 3A Fixed Output
(Note: GPC-3060D/6030D are not CE approved)

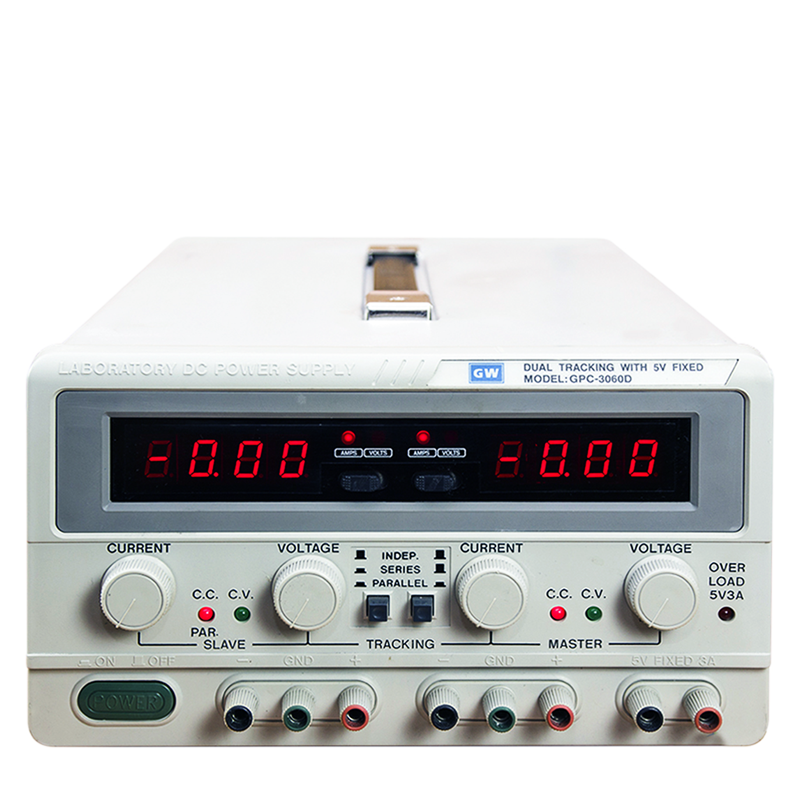

The GPC-Series is triple output, 375W, linear DC power supplies. Channel 1 and 2 are fully adjustable (model dependant) and Channel 3 is fixed at 5V/3A with ripple and noise at less than 2mVrms. Overload and reverse polarity protection keep GPC-Series and its loads safe from unexpected conditions. The GPC features continuous or dynamic internal load selection and serial or parallel tracking for application flexibility.The GPC-Series is an ideal solution for inexpensive bench-top applications requiring low noise and multiple outputs.
(Note: GPC-3060D/6030D are not CE approved)
| SELECTION GUIDE | ||||||
|
Output Watts (W)
|
CH1 / CH2
|
CH3
|
Series
|
Parallel
|
Weight(kg)
|
|
|
GPC-6030D
|
375W
|
0~60V/0~3A
|
5V/3A Max
|
120V/3A
|
60V/6A
|
18.5
|
|
GPC-3060D
|
375W
|
0~30V/0~6A
|
5V/3A Max
|
60V/6A
|
30V/12A
|
18.5
|
Test lead GTL-105A x 1 ( ≦3A ) or GTL-104A x 2 ( ≦10A )
European Test Lead GTL-203A*1 (≦3A) or GTL-204A*2(≦10A)
