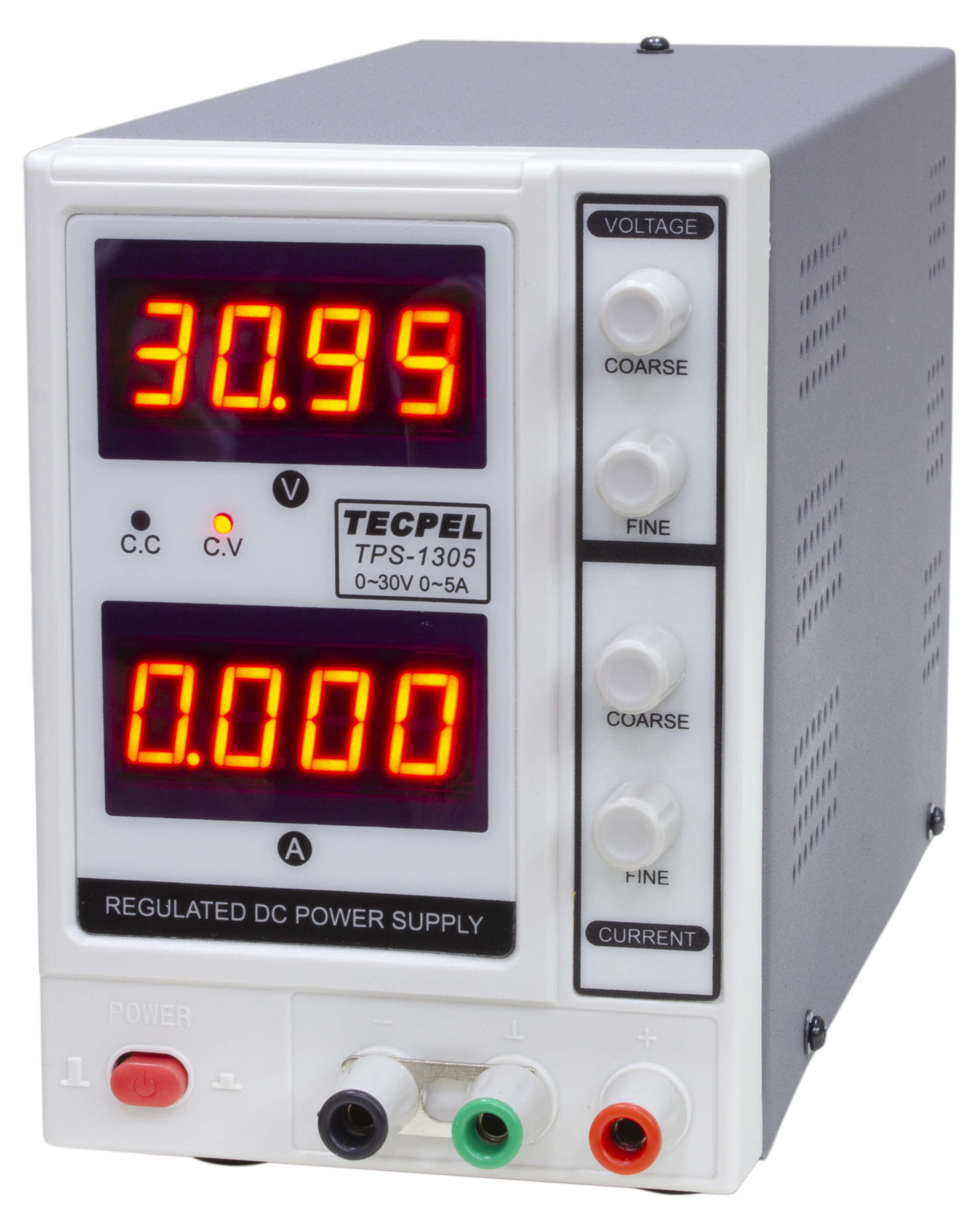

TPS-1305 Linear D.C. Power Supply Product ID: TPS-1305

Output Volts (V) 0~30V
Output Amps (A) 0~5A
Load regulation CV ≤0.01%+2mV
CC ≤0.1%+3mA
Line regulation CV ≤0.01%+3mV
CC ≤0.2%+3mA
Ripple & Noise CV ≤1mVrmS
CC ≤1mArmS
Volts Display 4 digits LED
Amps Display 4 digits LED
Display Accuracy ≤±(0.5%+2digit)
Heat-dissipating Forced air cooling,
Temp.controlled fan
Working temp. 0~40℃
MTBF ≥3000h
Protection Shot circuit,
Over current,
Over heat protection
Power supply 110/220VAC
50Hz/60Hz
Dimensions 25(D)×11(W)×16(H)cm
weight 3kg

Category: DC Power Supplies
Certificate:CE
  • Single output, easy to operate.
  • Small body, large current output, high power density.
  • Adjust knobs including coarse and fine adjustment operation.
  • Two groups of 4 digits led respectively indicate the voltage and the current value.
  • With current limit protection, the current limit can be adjusted by users.
  • Overload protection, short circuit protection and overheat protection.
  • Ring transformer.
  • Aluminum chassis parts + silent fan
