BTM-4208SD, SD card real time data recorder 12 channels Temp. RECORDER LUTRON Product ID: BTM-4208SD
Features
12 channels Temperature recorder, use SD card to save the data along with time information, paperless.
A real-time recorder saves the measuring data along with the time information (year, month, date, minute, second) into the SD memory card and can be downloaded to the Excel, extra software is not needed.
Channels no. : 12 channels (CH1 to CH12) temperature measurement
Sensor type: Type J/K/T/E/R/S thermocouple.
Auto recorder or manual recorder.
Recorder sampling time range: 1 to 3600 seconds.
Type K thermometer: -100 to 1300 C
Show CH1 to CH8 or CH9 to CH12 in the same LCD.
Display resolution: 1 degree/0.1 degree.
Time information: Year, Month, Date, Hour, Minute, and Second.
Memory card size: 1 GB to 16 GB.
Super large LCD with backlight, easy reading.
Data hold, Record (Max., Min.).
RS232/USB computer interface.
Optional type K temperature probe: TP-01, TP-02A, TP-03, TP-04.
DC 1.5V (UM-3, AA) x 8 PCs or DC 9V adapter in.
Patent: Taiwan, China, Japan, Germany, USA pending.
* 12 channels Temperature recorder, use SD card to save the data along with time information, paperless.
* Realtime data logger, save the 12 channels Temp. measuring data along the time information ( year, month, date, minute, second ) into the SD memory card can be downloaded to Excel; extra software is unnecessary. Users can make further data or graphical analyses by themselves.
* Channels no. : 12 channels ( CH1 to CH12 ) temperature measurement.
* Sensor type : Type J/K/T/E/R/S thermocouple.
* Auto datalogger or manual datalogger. Data logger sampling time range: 1 to 3600 seconds.
* Type K thermometer: -100 to 1300 ℃.
* Type J thermometer: -100 to 1200 ℃.
* Page select, show CH1 to CH8 or CH9 to CH12 in the same LCD.
* Display resolution: 1 degree/0.1 degree. * Offset adjustment.
* SD card capacity: 1 GB to 16 GB. * RS232/USB computer interface.
* Microcomputer circuit provides intelligent function and high accuracy.
* Jumbo LCD with green light backlight, easy reading.
* Can default auto power off or manual power off.
* Data hold to freeze the measurement value.
* Record function to present the max. and min. reading.
* Power by UM3/AA ( 1.5 V ) x 8 batteries or DC 9V adapter.
* RS232/USB PC COMPUTER interface.
Circuit Custom one-chip of microprocessor LSI circuit.
Display LCD size : 82 mm x 61 mm.
* with green color backlight.
Channels 12 channels : T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11 and T12. Sensor type Resolution Type K thermocouple probe.
Type J/T/E/R/S thermocouple probe. 0.1℃/1℃, 0.1℉/1 ℉.
Datalogger Sampling Time Setting range Auto 1 second to 3600 seconds @ Sampling time can set to 1 second, but memory data may loss.
Manual Push the data logger button once will save data one time. @ Set the sampling time to 0 second. Memory Card SD memory card. 1 GB to 16 GB. Advanced setting * Set clock time ( Year/Month/Date, Hour/Minute/ Second )
* Decimal point of SD card setting * Auto power OFFmanagement
* Set beep SoundON/OFF
* Set temperature unit to ℃ or ℉
* Set sampling time
* SD memory cardFormat Temperature Compensation Automatic temp. compensation for the type K/J/T/E/R/S thermometer. Linear Compensation Linear Compensation for the full range.
Offset Adjustment To adjust the zero temperature deviation value. Probe Input Socket 2 pin thermocouple socket. Over Indication Show " - - - - ".
Data Hold Freeze the display reading.
Memory Recall Maximum & Minimum value.
sampling Time of Display Approx. 1 second.
Data Output RS 232/USB PC computer interface
* Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
* Connect the optional USB cable USB-01 will get the USB plug.
Power off Auto shut off saves battery life or manual off by push button. Operating Temperature 0 to 50 ℃. Operating Humidity Less than 85% R.H. Power Supply
* Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 8 PCs, or equivalent.
* DC 9V adapter input. ( AC/DC power adapter is optional ).
Power Current Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 7.5 mA. When SD card save the data but and LCD Backlight is OFF) : Approx. DC 25 mA.
* If LCD backlight on, the power consumption will increase approx. 11 mA. Weight Meter : 948g ( includes batteries )
Dimension 225 X 125 X 64 mm ( 8.86 X 4.92 X 2.52 inch )

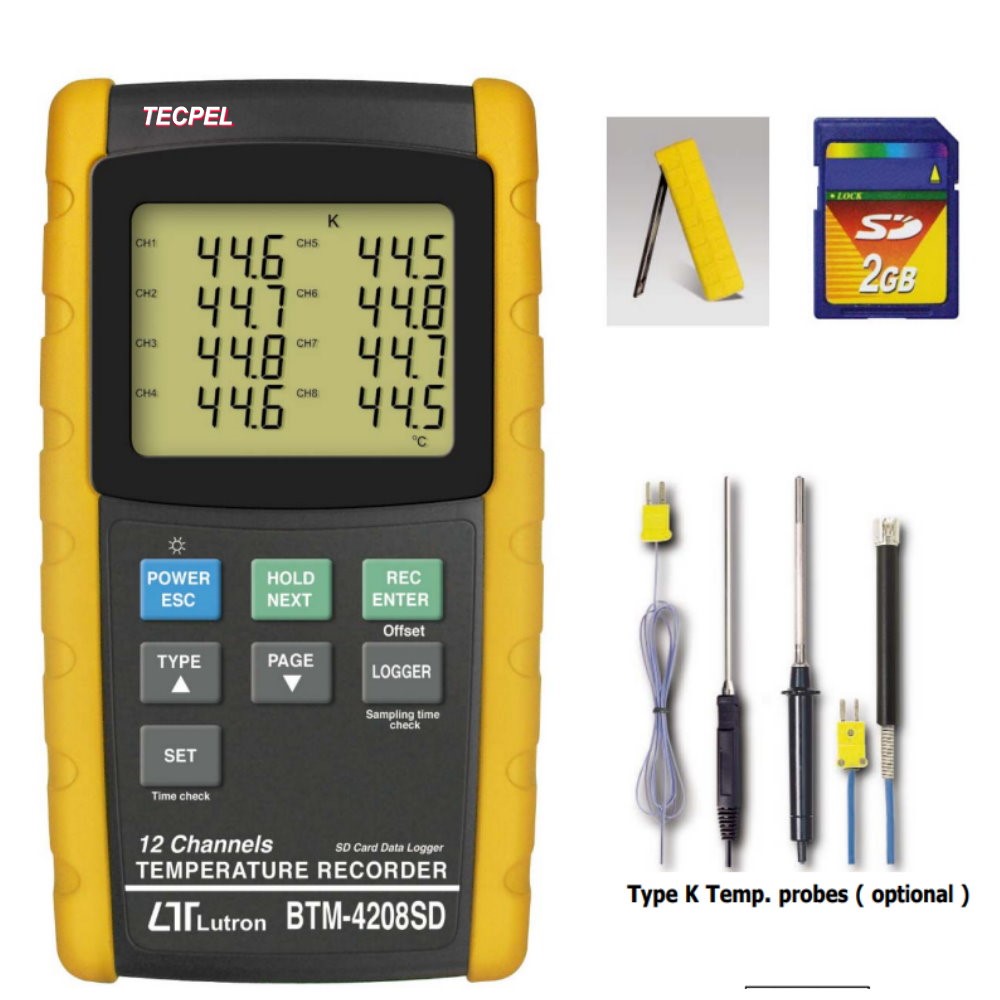

Accessories Included * Instruction manual.............................. 1 PC * Type K Temp. probe, TP-01................. 2 PC * SD Card ( 2 GB )................................. 1 PC * Hard carrying case, CA-08....................1 PC Optional Accessories
* Type K thermocouple probe. TP-01, TP-02A. TP-03, TP-04
* USB cable, USB-01.
* RS232 cable, UPCB-02.
* Data Acquisition software, SW-U811-WIN.
* EXCEL data Acquisition software, SW-E802. * AC to DC 9V adapter.
ELECTRICAL SPECIFICATIONS (23± 5 ℃)
Sensor Type Resolution Range
Accuracy
Type K 0.1 ℃ -50.1 to -100.0 ℃ ± ( 0.4 % + 1 ℃ ) -50.0 to 999.9 ℃ ± ( 0.4 % + 0.5 ℃ ) 1 ℃ 1000 to 1300 ℃ ± ( 0.4 % + 1 ℃ ) 0.1 ℉ -58.1 to -148.0 ℉ ± ( 0.4 % + 1.8 ℉ ) -58.0 to 999.9 ℉ ± ( 0.4 % + 1 ℉ ) 1 ℉ 1000 to 2372 ℉ ± ( 0.4 % + 2 ℉ )
Type J 0.1 ℃ -50.1 to -100.0 ℃ ± ( 0.4 % + 1 ℃ ) -50.0 to 999.9 ℃ ± ( 0.4 % + 0.5 ℃ ) 1 ℃ 1000 to 1150 ℃ ± ( 0.4 % + 1 ℃ ) 0.1 ℉ -58.1 to -148.0 ℉ ± ( 0.4 % + 1.8 ℉ ) -58.0 to 999.9 ℉ ± ( 0.4 % + 1 ℉ ) 1 ℉ 1000 to 2102 ℉ ± ( 0.4 % + 2 ℉ )
Type T 0.1 ℃ -50.1 to -100.0 ℃ ± ( 0.4 % + 1 ℃ ) -50.0 to 400.0 ℃ ± ( 0.4 % + 0.5 ℃ ) 0.1 ℉ -58.1 to -148.0 ℉ ± ( 0.4 % + 1.8 ℉ ) -58.0 to 752.0 ℉ ± ( 0.4 % + 1 ℉ )
Type E 0.1 ℃ -50.1 to -100.0 ℃ ± ( 0.4 % + 1 ℃ ) -50.0 to 900.0 ℃ ± ( 0.4 % + 0.5 ℃ ) 0.1 ℉ -58.1 to -148.0 ℉ ± ( 0.4 % + 1.8 ℉ ) -58.0 to 999.9 ℉ ± ( 0.4 % + 1 ℉ ) 1 ℉ 1000 to 1652 ℉ ± ( 0.4 % + 2 ℉ )
Type R 1 ℃ 0 to 600 ℃ ± ( 0.4 % + 0.5 ℃ ) 601 to 1700 ℃ ± ( 0.4 % + 1 ℃ ) 1 ℉ 32 to 1112 ℉ ± ( 0.4 % + 1 ℉ ) 1113 to 3092 ℉ ± ( 0.4 % + 2 ℉ )
Type S 1 ℃ 0 to 600 ℃ ± ( 0.4 % + 0.5 ℃ ) 601 to 1500 ℃ ± ( 0.4 % + 1 ℃ ) 1 ℉ 32 to 1112 ℉ ± ( 0.4 % + 1 ℉ ) 1113 to 2732 ℉ ± ( 0.4 % + 2 ℉ )
Remark :
a. Accuracy value is specified for the meter only.
b. Accuracy is tested under the meter's environment temperature within 23 ±5℃.
c. Linearity Correction: Memorize the thermocouple's curve into the intelligent CPU circuit,
