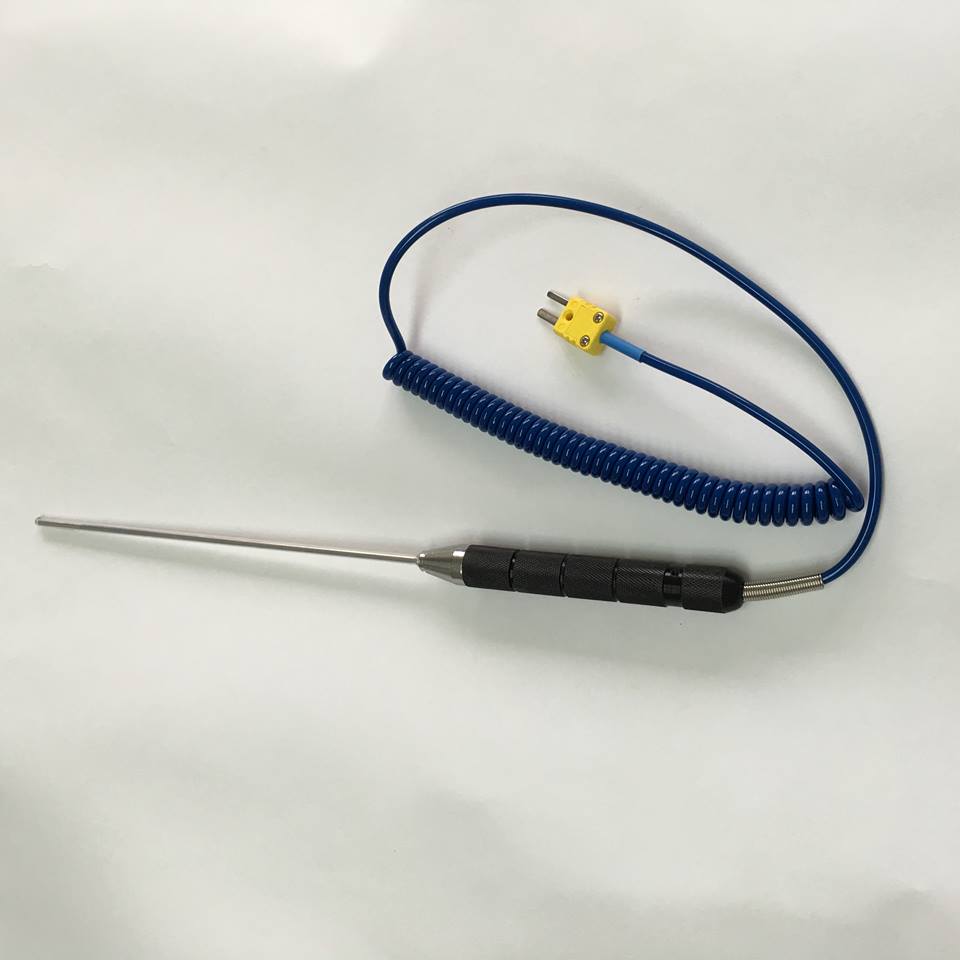

TPK-03-TEFLON Type K Thermocouple Probes TPK-03 Immersion probe + PTFE ( i.e.TEFLON® ) immersion probe Product ID: TPK-03-TEFLON

Type K (chromel–alumel) is the most common general-purpose thermocouple with a sensitivity of approximately 41 µV/°C.It is inexpensive, and a wide variety of probes are available in its −200 °C to +1350 °C (−330 °F to +2460 °F) range. Type K was specified at a time when metallurgy was less advanced than it is today, and consequently characteristics may vary considerably between samples. One of the constituent metals, nickel, is magnetic; a characteristic of thermocouples made with magnetic material is that they undergo a deviation in output when the material reaches its Curie point, which occurs for type K thermocouples at around 185 °C.

Category: Thermocouples
Certificate:

Specifications:



TPK-03 Immersion Probe , Type K Thermocouple Probes



☆ -50℃ ~ 200℃ General purpose needle



type with stainless round head.



☆ For measuring liquid or gel


General purpose needle type with stainless point head.



measuring internal temperatures of liquids, semi-solids such as oils, rubbers, plastics, power, clays, meats, fruits, frozen foodstuffs.



Q & A:



As for the needle, is it stainless steel #304 or #316?



It is stainless # 316 which is more duarable than # 304.

Features:

1.Model: TPK-03 K type Thermocouple probe + Teflon Tube

2.Pipe : Material Sheath, K/316, 3.2 ψ, Length 200mm

3.Temperature durability : -50 ℃ ~ 200 ℃

4.Handle material: Engineer Plastic, 16ψ, Length 130mmCoiled wire cable: PE material wire 4ψ, Length 600mm,

5.Temperature durability: 105℃

6.Temperature range for usage: -100 ℃ ~ 200 ℃

7.Accuracy : Class 0.75

8.Order Information: TPK-03 + TEFLON Tube

9.Model: TPK-03 Immersion probe + PTFE ( i.e.TEFLON® )


Q & A:

I have the digital thermometer Tecpel 315 and I need thermocouple for that.  I use the Tecpel 315 for solutions of Acid and  caustic soda, so please find the proper model to suggest to me.  Thanks again.

Answer:  This Type K Thermocouple Probes

TPK-03 Immersion probe + PTFE ( i.e.TEFLON® ) immersion probe can probably solve  the issue for you.
