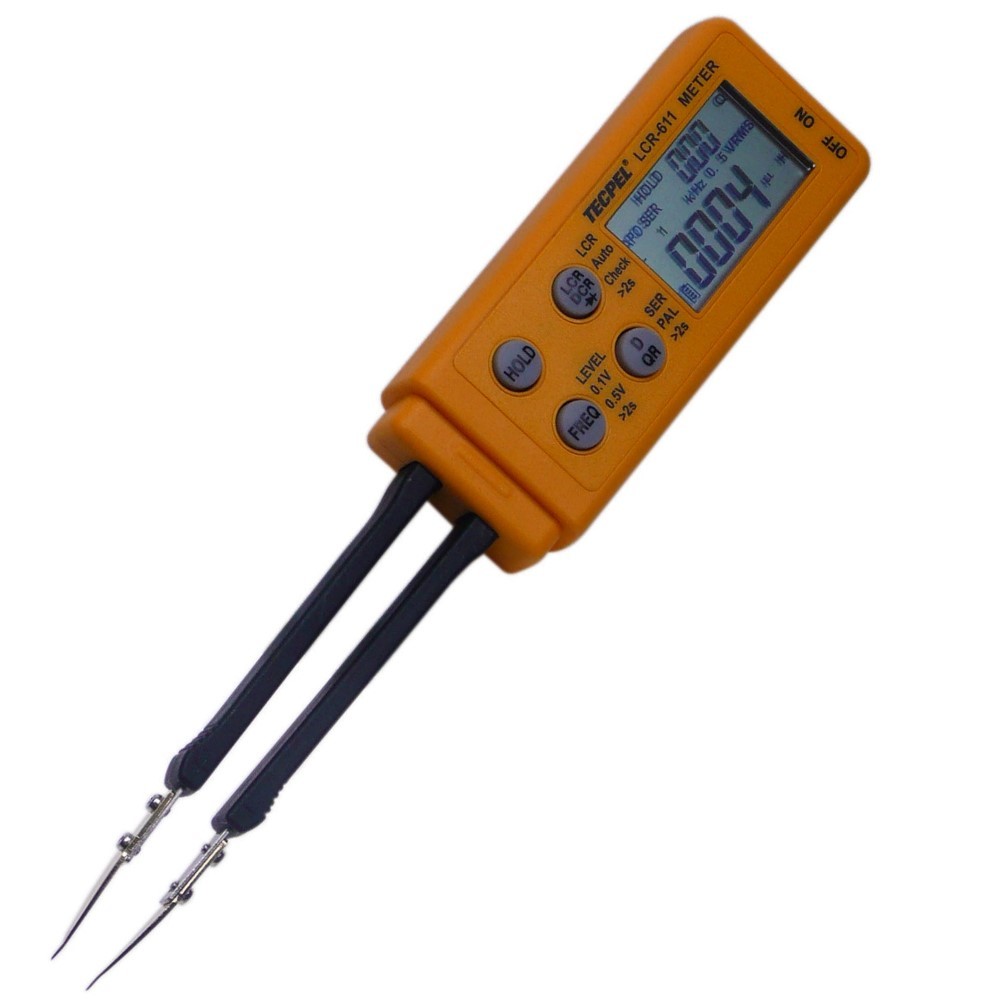

LCR-611 LCR Tweezers SMD inductors, capacitors, resistors measuring element Product ID: LCR-611

Model: LCR-611
6000 Count dual LCD display
LCR Tweezers
SMD inductors, capacitors, resistors measuring element

Add to Inquiry
Category： Benchtop LCR Meters, Instruments, handheld
Certificate：CE

Funtion stalls minimum resolution  Accuracy
Inductance  L 600uH/6000uH
60mH/600mHF/6H/200H		 0.1uH ±(2.0%+5dgts)
±(1.0%+5dgts)
Capacitance  C 600pF
6nF/60nF/600nF/6uF
60uF/600uF6mF		 0.1pF ±(2.0%+8dgts)
±(1.0%+5dgts)
±(2.0%+5dgts)
Resistor  R 60 Ω
600Ω/6KΩ/60KΩ/600KΩ
6MΩ/20MΩ		 0.01Ω ±(2.0%+10dgts)
±(1.0%+5dgts)
±(2.0%+5dgts)
Resistor DCR 60 Ω
600Ω/6KΩ/60KΩ/600KΩ
6MΩ/20MΩ		 0.01Ω ±(2.0%+10dgts)
±(1.0%+5dgts)
±(2.0%+5dgts)
Diode Measurement Open Circuit Voltage : 3V DC
Test Current : Approx. 0.8 mA		 1mV ±(2.0%+5dgts)
Special Features:
  • 6000 Count dual LCD display, maximum reading of 6000
  • Automatic detection (Auto Check)
  • Automatic Range automatic shutdown function
  • Measuring Frequency Selection: 100Hz/120Hz/1kHz/10kHz
  • Measuring voltage selection: 0.1V rms / 0.5V rms
  • Select measurement parameters: D, Q, R
  • Equivalent series-parallel mode selection: (SER / PAL)
  • Low battery warning
  • Size: 205H × 40W × 24.5D / mm
