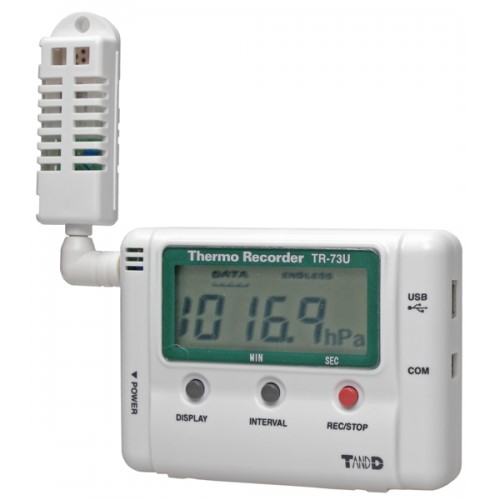

TR-73U Thermo / Barometric Pressure Recorder temperature humidity and barometric pressure data logger Product ID: TR-73U
TR-73U has a total of three channels: one temperature, one humidity, and one barometric pressure channel. This compact, lightweight model has been designed with low energy consumption for longer battery life; coupled with its easy-to-use software and USB connection makes this product the foundation of our Thermo Recorder line.
The product is an all-in-one package that includes the data logger unit, sensor and software. Simply by connecting to a PC via a USB connection and carrying out a few easy steps, the measurement and recording of data can be started.
- USB Connection
- Simultaneous Monitoring of Multiple Channels of Data
- Logging Capacity: 8,000 Data Sets
- Accurate, Compact, Lightweight and Affordable
- One Year Continual Use on One Set of Battery
- Adjustment Function
- High Speed Data Transfer
- Easy to Read Multi-Functional Display
Collecting Recorded Data to PC via USB Connection
Our easy-to-use USB computer connection makes things not only simple, but allows you to connect several units at the same time.
Collecting Recorded Data via Infrared Communication
By using a Data Collector TR-57DCi, it is possible to download the recorded data from a TR-71Ui/72Ui via infrared communication. This function releases you from the burden of physically gathering the data loggers or taking a PC to the measurement location to collect data.
Checking Collected Data on the Spot (Data Collector)
When using a Data Collector, you can download recorded data from a TR-71Ui/72Ui, and view the data in graph or list form without connecting to your computer. It is also possible to confirm the occurrence of a warning from the data recorded by a TR-71Ui/72Ui for which the Warning Monitoring Function has been set.
Simultaneous Monitoring of Multiple Channels of Data
With the attached software it is possible to view current measurements and current trends in a changing graph form. Graphs can be opened for the same number of units as are connected and can be simultaneously viewed.
Large Logging Capacity: 8,000 Data Sets
Each unit is equipped with a large logging capacity of 8000 data sets. (One data set consists of readings for all channels in that type of unit.)
Accurate, Compact, Lightweight and Affordable
Our exclusive design and technology has allowed us to create a highly accurate yet compact and lightweight unit (55x78x18mm 62g) that is unbelievably affordable.
Low Energy Consumption Design: One Year of Battery Life on One AA Alkaline Battery (About 7 months)
Our special low energy consumption design gives the user one year of continuous operation with only one AA alkaline battery. As the battery allows for measurement and recording over long periods of time there is no need to worry about where you place it; whether it is in transit or in a distant place.
Battery life varies depending upon the type of battery, the measuring environment, the frequency of communication, and the ambient temperature in which it is used. The stated specifications are based on operations carried out with a new battery and are in no way a guarantee of your actual battery life.
By setting adjustment values beforehand, you can record and display the post-adjusted measurement values.
High Speed Data Transfer
Possible to transmit one unit of full data (8,000 readings) to computer in about 8 seconds.
Easy to Read Multi-Functional Display
The easy to read large sized LCD displays present readings, recording condition, battery life warning, amount of data readings, and unit of measurement among other things.
1. Channel Mark
The channel number of the measurement being displayed will appear.
2. Recording Mark
The recording condition will appear.
ON:Recording in progress.
BLINKING:Waiting for programmed start.
3. Data Capacity Scale
After every 2,000 readings the scale will be marked from left to right.
4. COM Mark
This will appear when data is being sent or received.
ON:USB cable is connected.
BLINKING:In communication with computer.
5. Recording Mode
ONETIME: When the number of recorded readings reaches 8000, ""FULL"" will appear in the unit's LCD display and recording will automatically stop.
ENDLESS: When the number of recorded readings reaches 8000, the oldest data reading will be overwritten and recording will continue.
6. Battery Life Warning Mark
When the battery power becomes low, this will appear in the LCD display. If the battery power becomes even lower, SLP will appear and normal operations will stop. If the mark appears, please change the battery as soon as possible.
7. Unit of Measurement
The unit of measurement for the display will appear.
8. Measurements and Message Area
Current measurements or operational messages such as FULL or SLP will appear.
Reliable Data Protection
With the reliable data protection function we have removed the worry about losing data when battery power becomes low.
When Battery Power is Low:
When the battery power becomes low, a battery life warning mark will appear in the Unit's LCD display to show the low battery power status. If within a short time the battery is changed, measurement and recording will not be interrupted and there will be no data loss. If the battery power becomes even lower the Unit will automatically go into sleep mode. In sleep mode, measurement and recording will stop and protect recorded data until this point for the following 2 - 3 months.
When Switch is OFF:
Even if the power has been turned off, the recorded data will be saved.
If the battery is further left unchanged even after the Unit has entered sleep mode, or if the battery is left out of the Unit for some time, only then will all recorded data be lost.
TandD TR-73U Temperature, Humidity and Pressure Data Logger Specifications
|Data Storage Capacity||24,000 Readings (8,000 per Channel)|
|Sampling Rate||1 Second to 60 Minutes (User Selectable)|
|Internal Temperature Sensor||-10°C to 60°C|
|Internal Barometric Pressure Sensor||750 to 1100 hPa|
|External Temperature Sensor||0°C to 50°C|
|External Humidity Sensor||10 to 95%RH|
|Optional Sensor Range||-40°C to 110°C|
|Temperature Measurement Accuracy (Standard Sensor)||Average ±0.3°C at 0°C to 50°C|
|Humidity Measurement Accuracy (Standard Sensor)||±5%RH (At 25°C 50%RH)|
|Barometric Pressure Measurement Accuracy||±1.5hPa|
|Temperature Measurement Resolution Display||0.1°C|
|Humidity Measurement Resolution Display||1% RH|
|Barometric Pressure Measurement Resolution Display||0.1hPa|
|Humidity Sensor||Macromolecular Humidity Sensor|
|Barometric Sensor||Barometric Pressure Sensor|
|Recording Method||Endless (Overwrite from the oldest data when recording capacity is full)
One time Method (Stop recording when recording capacity is full)
|LCD Display||Measurements (Ch1 only, Ch2 only, Ch3 only,alternating display), Recording Status,Battery Life Warning, Amount of Recorded Data, Unit of Measurement|
|Battery||AA Alkaline Battery (LR6)|
|Battery Life||About 10 Months (Depends on sampling rate, measuring environment and quality of the battery being used)|
|Data Back-up||Activated when Battery Power is Low or When Switch is Off (about 1 year)|
|Interface||USB Communication Cable|
|Download Time||When downloading (1 unit of full data-about 8 seconds)|
|Dimensions||55mm x 78mm x 18mm|
|Weight||62g (with Battery)|
|Operating Environment||Temperature: -10°C to 60°C
Humidity: under 90%RH (without condensation)
|Attached Sensors||One (1) TR-3100 Temperature and Humidity Sensor|
