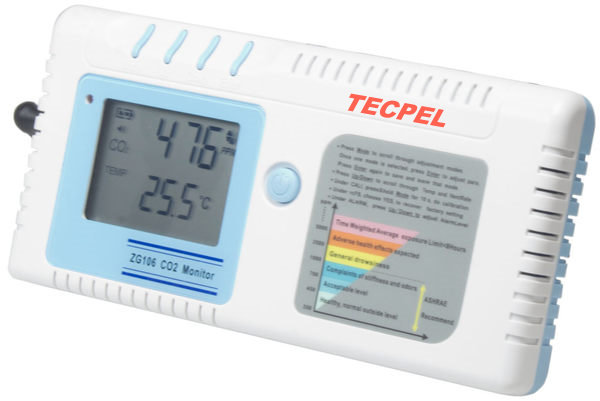

ZG-106 CO2 Monitor Product ID: ZG-106


The ZG106 is a new and low-cost carbon dioxide monitor implementing IR-SoC technology. Its many features include a data logger that can record up to 24 hours of data, a CO2 level alarm, and an extreme level indicator.


The ZG106 accurately detects carbon dioxide levels between 0 to 3000 ppm. By using an in-house ASIC design, Tecpel has created a CO2 monitor that has an extremely low parts count, attributing to the low cost of the ZG106.

This gas monitor is suitably fit for applications in Indoor Air Quality(IAQ), HVAC, safety, other industries.





Features:
 •Ultra low cost CO2 Monitor achieved by New IR-SoC Technology .
•It uses NDIR technology to improve the long term stability.
•Portable, accurate handheld CO2 Monitor.
•The Alarm mode will sound at 1000 PPM or adjust the alarm level
•Max/Min mode

Certificate:CE
Characteristics - CO2:

Measuring Range 0-3,000 ppm display

Display Resolution 1ppm at 0~1,000ppm
5ppm at 1,000~2,000ppm
10ppm at 2,000~3,000ppm
Accuracy ±50 ppm or ±5% of reading
Repeatability ±20 ppm
Temperature
Dependence
±0.1% of reading per °C or ±2 ppm
per °C, whichever is greater, referenced
to 25°C
Pressure Dependence 0.13% of reading per mm Hg
(Corrected via user input for altitude)
Response Time
Warm-Up Time
Calibration Interval 12 months, offset adjustment using
single gas at 0-1000 ppm CO2. Full
factory calibration available.


Characteristics - Temperature:

Measuring Range Display 32 to 122°F (0 to 50°C)
Display Resolution 0.1°F (0.1°C)
Display Options °F / °C, or Off. Set with Up /
Down
