Thermocouples

TEPCEL Temperature
Thermocouple Porbes

Surface Probe TPK-04
Surface Probe TPK-04S

Angle 90 degree surface probe TPK-04L

Type K (chromel–alumel) is the most common general-purpose thermocouple with a sensitivity of approximately 41 µV/°C.It is inexpensive, and a wide variety of probes are available in its −200 °C to +1350 °C (−330 °F to +2460 °F) range. Type K was specified at a time when metallurgy was less advanced than it is today, and consequently characteristics may vary considerably between samples. One of the constituent metals, nickel, is magnetic; a characteristic of thermocouples made with magnetic material is that they undergo a deviation in output when the material reaches its Curie point, which occurs for type K thermocouples at around 185 °C.

Type K Thermocouple Probes :

Roller Probe TPK-06

TPK-06 Roller Surface Probe
1.-50°C ~ 250°C/-58°F ~482°F
2.Fast response probe.
3.Ideal for measuring moving rotating, stationary surface or moving conveyors for molds, textiles, prints, PC boards, papers, textile

Type K Thermocouple Probes :

Magnetized Probe TPK-07

TPK-07 Magnetized Surface Probe
1. -50°C ~ 250°C/-58°F ~482°F
2. Fast response probe.
3. Ideal for measuring magnetic surface such as motors, transformers, dryers, blast furnaces, heating elements

Type K (chromel–alumel) is the most common general-purpose thermocouple with a sensitivity of approximately 41 µV/°C.It is inexpensive, and a wide variety of probes are available in its −200 °C to +1350 °C (−330 °F to +2460 °F) range. Type K was specified at a time when metallurgy was less advanced than it is today, and consequently characteristics may vary considerably between samples. One of the constituent metals, nickel, is magnetic; a characteristic of thermocouples made with magnetic material is that they undergo a deviation in output when the material reaches its Curie point, which occurs for type K thermocouples at around 185 °C.

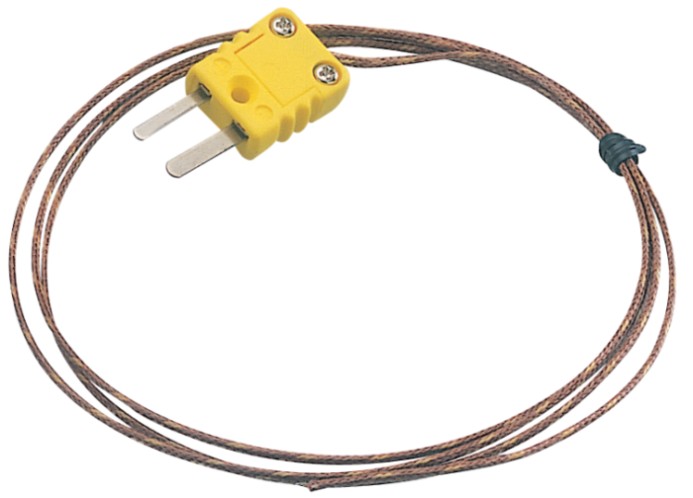

Glass fiber Thermocouple for high temeprature measurement

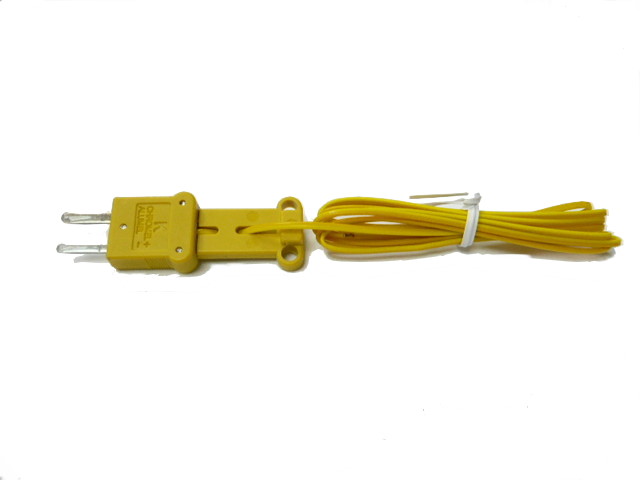

air, liquid type k thermocouple for high temperature measurement

Type K (chromel–alumel) is the most common general-purpose thermocouple with a sensitivity of approximately 41 µV/°C.It is inexpensive, and a wide variety of probes are available in its −200 °C to +1350 °C (−330 °F to +2460 °F) range. Type K was specified at a time when metallurgy was less advanced than it is today, and consequently characteristics may vary considerably between samples. One of the constituent metals, nickel, is magnetic; a characteristic of thermocouples made with magnetic material is that they undergo a deviation in output when the material reaches its Curie point, which occurs for type K thermocouples at around 185 °C.

TPK-01F K type thermocouple connector

For thermocouple K type wire connector
1. TPK-01M Male To adopt thermocuple K type wire
2. 19 mm x 17 mm x 8 mm (Length x Width x Thickness)
3. 32mm (Lenght including + /- plate)

TPK-01F Female To adopt TPK-01K
1. 26 mm x 17 mm x 8 mm ( Length x Width x Thickness)

Above 2 parts are suitable for any wires of K type thermocouple connection

K Type Thermocouple Extension Calbe Model: TPK-01FM-10M
Length : 10 Meter long
with female and male connecto to meet any K type thermocouple extension.

Type K (chromel–alumel) is the most common general-purpose thermocouple with a sensitivity of approximately 41 µV/°C.It is inexpensive, and a wide variety of probes are available in its −200 °C to +1350 °C (−330 °F to +2460 °F) range. Type K was specified at a time when metallurgy was less advanced than it is today, and consequently characteristics may vary considerably between samples. One of the constituent metals, nickel, is magnetic; a characteristic of thermocouples made with magnetic material is that they undergo a deviation in output when the material reaches its Curie point, which occurs for type K thermocouples at around 185 °C.
