DTM-3101 Stem Thermometer Product ID: DTM-3101

LCD Digital Multi-Thermometer

A thermometer measures the temperature of the environment or material that we are operating on. Two means help the thermometer to display the signal. First, the digital sensor in infrared models, and secondly the converter that shows the numbers.

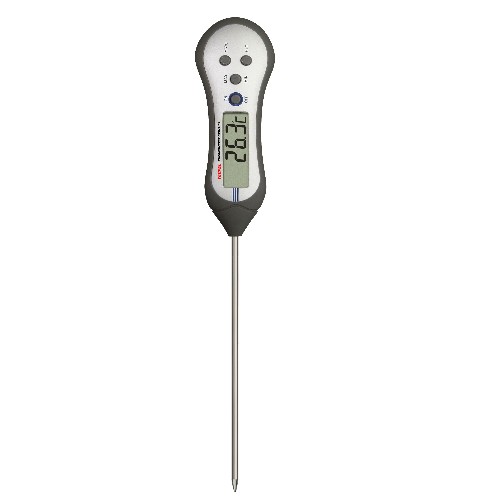

DTM-3101 is a digital stem thermometer from Tecpel with LCD to display the measurement.

DTM-3101
FUNCTION:
1.POWER ON/OFF
2.H/T,
3.°F/°C,
4.MAX/MIN (°F/°C)
5.MEMORY RECALLING FUNCTION

Category: Thermometers
Certificate:

DTM-3101
specification:

Measurement range: -50°C~ 150°C or -58°F~302°F

Resolution : 0.1° for -19.9° ~ 199.9°, otherwise 1°

Accuracy : ±1°C in the range of -30°C ~ 150°C

                 ±1.8°F in the range of -22°F~ 302°F

Ambient temperature for plastic case: -10°C~50°C or +14°F~122°F

Battery : 1 x 1.5 volts g13 size or equivalent

DTM-3101   Features

1.Max/min (°f/°c) memory recalling

2.Temperature unit °C/°F selectable

3.Data hold/test function selectable

4.1 sec. Normal temperature sensing time

5.Low battery indicator

6.One hour auto shut off

7.133mm stainless steel sensor probe

8.Protective plastic sleeve with clip

9.Rubber coated housing


Operation:

Press the ""on/off"" button. The thermometer is ready for use.

Press the ""°C/°F"" button to select desired temperature unit.

Press the ""h/t"" button. The word ""hold"" will flash to retain reading for recording.

Press the ""max / min"" button. ""min"" sign will be shown. The minimum temperature tested will display. Press the button again. ""max"" sign will be shown. The maximum temperature tested will display. It will go back to the testing position after three seconds.



Precautions:

To obtain the best results, the probe tip should be immersed at least 10mm. Into the tested substance.

Remove the battery from the battery compartment if the thermometer will not be used for long duration of time or during storage.

The thermometer cannot be used or put inside any oven or microwave
