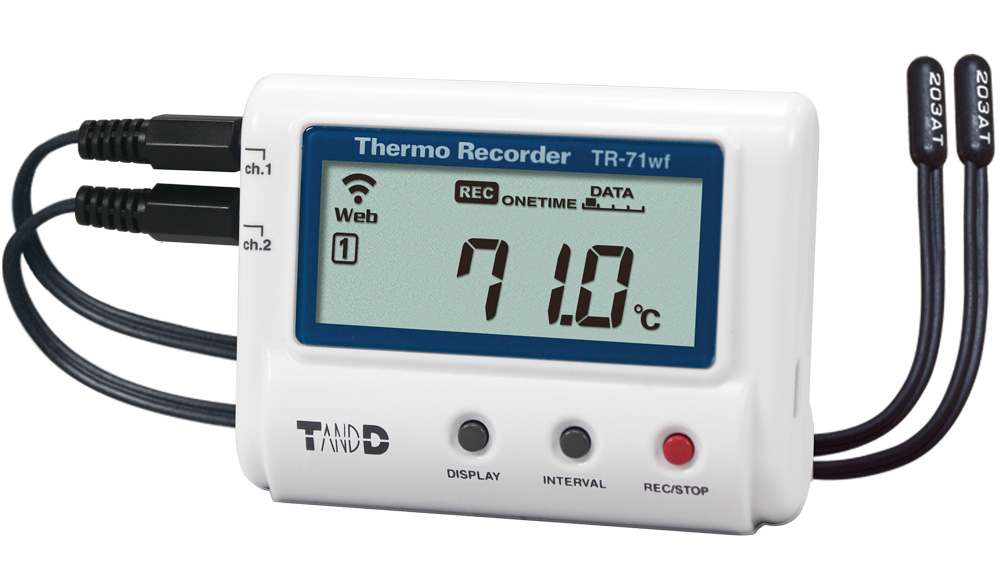

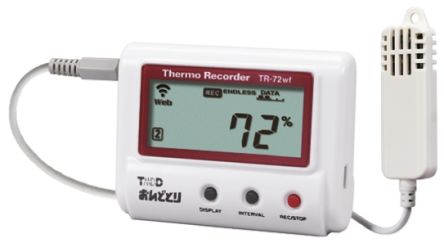

TR-71wb, TR-72wb, TR-72wb-S T & D Wireless/Wired temperature humidity data logger Product ID: TR-71wb, TR-72wb, TR-72wb-S

T and D TR-71wb TR-72wb TR-72wb-S Wifi Temperature Humidity Datalogger

T&D Corporation is proud to release the new temperature and humidity data logger TR-71wb/72wb.
The most distinguishing feature of TR-71wb/72wb is its auto upload function which automatically uploads recorded data from the logger to our free cloud service. It enables the viewing of uploaded data on your mobile device or PC anytime, anywhere.
Try our new data loggers and take a step into the new world of cloud storage

Application Examples


  • Performance Testing of Humidity and Heat Control in Housing

  • For Managing Temperature and Humidity in Server Rooms

  • For Temperature and Humidity Management in Hospitals, Museums, and Temperature Controlled Warehouses

  • Management of Temperature and Humidity in Subway and Train Cars


    • * USB communication cable and software CD-ROM are not included.

    1 Temperature channel: 0 to 55°C

    1 Humidity channel: 10 to 95% RH

    External thermistor temperature sensor

    Accuracy: ±0.5°C and ±5% RH

    Logging capacity: 8,000 data sets

    Measurement resolution: 0.1°C and 1% RH

    Built-in 802.11b wireless interface

    View data on mobile devices via Thermo App

    Web Storage Service available

    Add to Inquiry
    Download
    Category： Temperature Humidity Meters, Wireless, WiFi, Ethernet
    Certificate：CE
    Specifications
      TR-71wb TR-72wb TR-72wb-S
    Sensor (External) *1 TR-0106 THA-3001 SHA-3151(High-Precision Type)
    Thermistor Thermistor Polymer Resistance Platinum Resistance Electrostatic Capacitance
    Measurement Channels Temperature 2ch Temperature 1ch Humidity 1ch Temperature 1ch Humidity 1ch
    Measurement Units °C, °F °C, °F %RH °C, °F %RH
    Measurement Range -40 to 110 °C (Supplied Sensor)
    -60 to 155 °C (Optional Sensor: Fluoropolymer Coated Type)    		 0 to 55 °C 10 to 95 %RH -30 to 80 °C 0 to 99 %RH
    Accuracy Avg.±0.3 °C
    [-20 to 80 °C]
    Avg.±0.5 °C
    [-40 to -20 / 80 to 110 °C]    		 ±0.5 °C ±5 %RH
    [at 25 °C, 50 %RH]    		 ±0.3 °C
    [0 to 50 °C]
    ±0.5 °C
    [all other temperatures]    		 ±2.5 %RH
    [at 25 °C, 10 to 85 %RH]
    ±4.0 %RH
    [at 25 °C, 0 to 10 %, 85 to 99 %RH]
    At temperatures other than 25 °C and ≥ 0 °C, add ±0.1 %RH per degree of difference from 25. Humidity Hysteresis: ±1.5 %RH or lower *2
    Measurement Resolution 0.1 °C 0.1 °C 1 %RH 0.1 °C 0.1 %RH
    Responsiveness Thermal Time Constant: Approx. 75 sec.
    Response Time (90%): Approx. 190 sec.    		 Response Time (90%): Approx. 7 min. Response Time (90%):
    Approx. 7 min.    		 Response Time (90%):
    Approx. 20 sec.
    LCD Display Items Measurements (fixed or alternating display), Battery Warning Mark, etc.
    Logging Capacity 8,000 data sets (One data set consists of readings for all channels in that type of unit.)
    Recording Interval Select from 15 choices: 1, 2, 5, 10, 15, 20, 30 sec. or 1, 2, 5, 10, 15, 20, 30, 60 min.
    Recording Mode Endless (Overwrite oldest data when capacity is full) or One Time (Stop recording when capacity is full)
    Auto-upload Interval Select from 15 choices: OFF (No auto-upload), 1, 2, 5, 10, 15, 20, 30 min. or 1, 2, 3, 4, 6, 12, 24 hrs.
    Communication Interfaces Wireless LAN Communication
    Standard: IEEE 802.11b
    Security *3 : WEP (64bit/128bit), WPA-PSK(TKIP), WPA2-PSK(AES)
    WPS 2.0 : Push Button Configuration
    Protocol: HTTP, DHCP, DNS
    USB Communication *4
    USB 2.0 (Mini-B connector)
    Power AA Alkaline Battery x 2 (AA Ni-MH batteries may also be used), USB Bus Power (5 V 200 mA)
    Battery Life *5 With wireless LAN communication: Approx. 10 days to 1.5 years (Ex: Approx. 10 days when Auto-upload Interval is 1 min, 1 yr when 1 hr, 1.5 yrs when 12 hrs or more)
    Without wireless LAN communication: Approx. 1.5 years
    Dimensions H 58mm x W 78mm x D 26mm
    Weight Approx. 100 g (including batteries)
    Operating Environment Temperature: -10 to 60 °C
    Humidity: 90 %RH or less (no condensation)
    Accessories Temperature Sensor
    (TR-0106) x 2    		 Temperature/Humidity Sensor
    (THA-3001) x 1    		 High Precision Temperature/Humidity Sensor
    (HHA-3151) x 1
    AA Alkaline Battery (LR6) x 2, Registration Code Label, Manual Set (Warranty Included)
    • *1 : With the TR-71wf, it is also possible to measure temperature with the internal sensor. However, the measurement range is restricted to the operating environment for the whole device.
    • *2 : When used in environments where temperature and humidity are over the values of 50 °C 75 %, 60 °C 50 %, 70 °C 35 %, and 80 °C 25 %, sensor hysteresis may fluctuate by values greater than ±1.5 %RH. Under certain circumstances, it may take some time to return to normal measurement capability.
    • *3 : The WPS feature is not available when WEP(64bit/128bit) or WPA-PSK(TKIP) is selected in Access Point Settings. If you wish to use the WPS feature, please select WPA2-PSK(AES) or disable wireless security.
    • *4 : Optional USB Mini-B Cable US-15C is required for USB communication.
    • *5 : Battery life varies depending upon the frequency of communication, wireless LAN environment, ambient temperature, recording interval, and battery performance. All estimates are based on operations carried out with a new battery and are in no way a guarantee of actual battery life.
