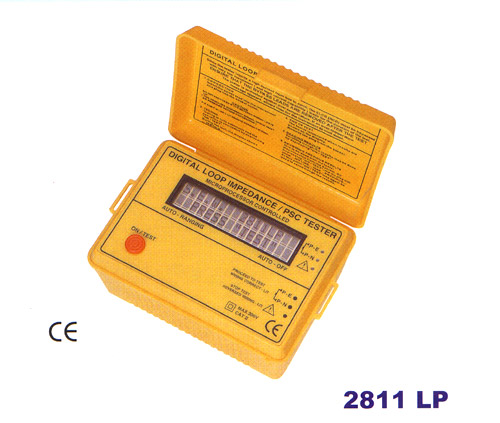

LP-2811 Digital Loop Impedance PSC Tester Product ID: LP-2811

LP-2811
Loop Impedance Range L - E , L - N: 20/200/2000 Ohm (Auto-Range)
Loop Impedance Test Current : 12A at 230V/50Hz
Voltage Measurement L-N, L-E : 80 to 250V AC/50Hz
Earth wire / path Return Resistance : 20/200/2000 Ohm (Auto-Range)
Neutral Wire Resistance : 20/200/2000 Ohm (Auto-Range)
Line Wire Resistance&Transformer Windings : 20/200/2000 Ohm (Auto-Range)
PSC Current (L - N) Max : 3kA
PSC Current (L - N) Max : 3kA
Operating Voltage : 230V +/-20%Hz
Dimensions : 170(L) x 120(W) x 95(D)mm
Weight : 635g
Power Source : 1.5V(AA) x 8 Batteries

Category: Electric Testers
Certificate:CE
  • LP-2811 Specifications:
    • 1. Loop impedance Range L-E, L-N : 20/200/2000 Ohm (Auto-Ranging)
    • 2. Loop Impedance Test Current: 7A at 230V/50 Hz
    • 3. Voltage Measurement L-N, L-E: 0 to 280V AC/50 Hz
    • 4. Earth Wire/Path return resistance : 20/200/2000 Ohm (auto-ranging)
    • 5. Neutral Wire return resistance: 20/200/ 2000 Ohm (auto-ranging)
    • 6. Line wire return resistance & Transformer Windeings : 20/200/2000 Ohm (Auto-ranging)
    • 7. PSC current (L-N) Max : 4KA
    • 8. PSC current ( L-E) Max: 4KA
    • 9. Operating voltage: 230V +/- 20% /50Hz
    • 10. Dimensions( Lx Wx D) : (120x 170 x 95 ) mm
    • 11. Power source : 8 x AA batteries
    • 12. Typical accuracy:
    • A. Loop impedance : +/- 5% of Full scle +/- 2 digits
    • B. PSC current : +/- 15% of Full scale +/- 5 digits
    • C. Voltage: +/- 1% of Full scale +/- 1 dgt
    • D. Operating Temperature-Humidity: -10 deg C to +40 deg C , 80% max RH (Relative Humidity).
