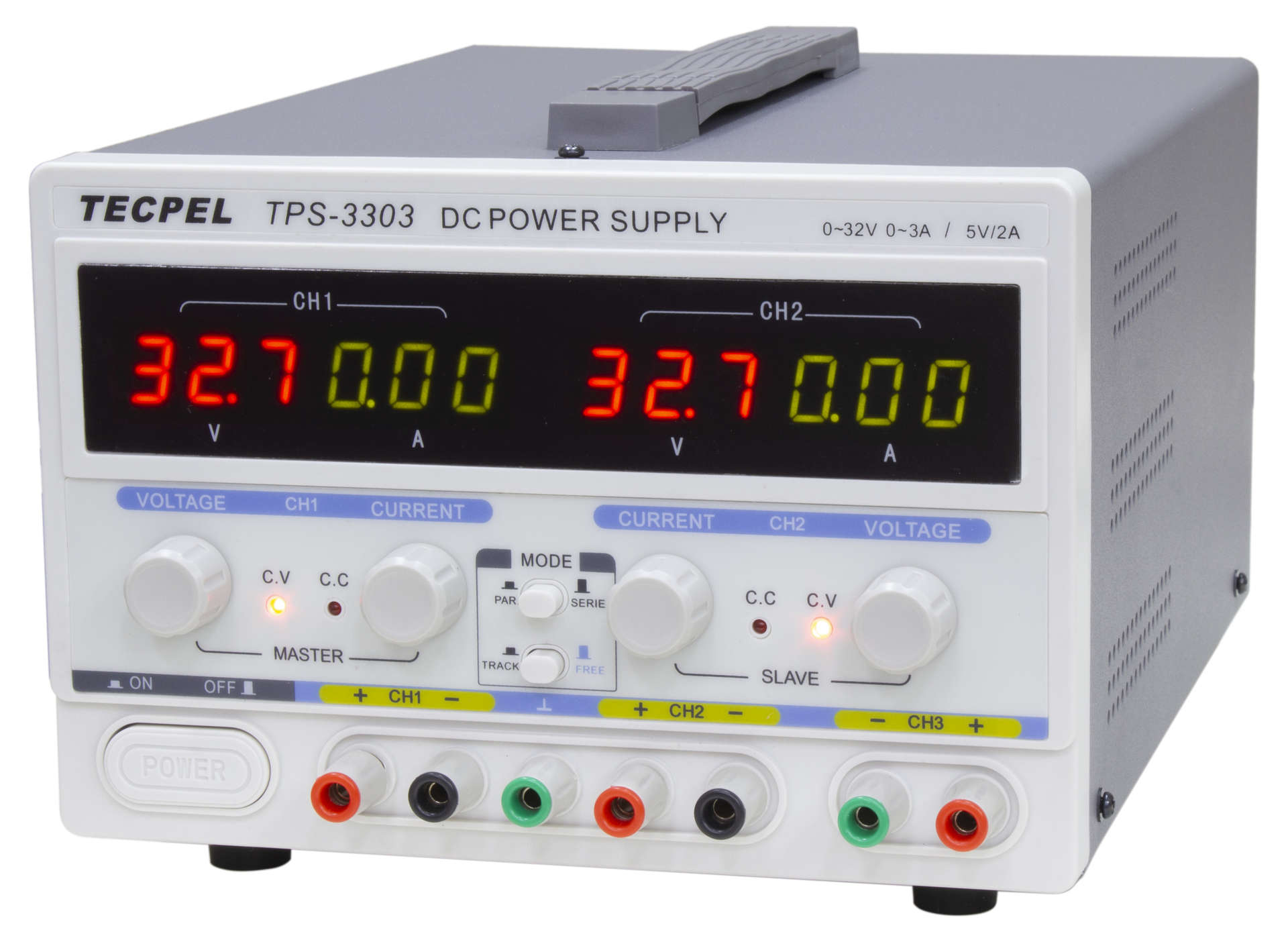

TPS-3303 Triple Output Linear D.C. Power Supply Product ID: TPS-3303

CH1、CH2
--------------------
Output Volts (V) 0~32V
Output Amps (A) 0~3A
Series Volts 0~64V
Parallel Amps 0~6A
Load regulation CV ≤0.05%+2mV
CC ≤20mA
Line regulation CV ≤0.01%+3mV
CC ≤0.5%+3mA
Ripple & Noise CV ≤1mVrmS
CC ≤1mArmS
Tracking Error ≤0.5%+2mV
Volts Display 3 digits LED
Amps Display 3 digits LED
Display Accuracy ≤±(0.5%+2D)
------------------------
CH3
------------------------
Output Volts (V) 5V
Output Amps (A) 2A
Heat-dissipating::Forced air cooling,Temp.cintrolled fan
Working temp:0~40℃
MTBF:≥3000h
Protection Shot circuit,Over current,Over heat protection
Power supply: 110/220VAC、50Hz/60Hz
Dimensions:29(D)×22(W)×16(H)cm
weight:5kg

Category: DC Power Supplies
Certificate:CE
  • Three independent outputs, two of which are adjustable and the third is fixed output.
  • Four groups of LED digital display to indicate the output voltage and current of the two channels using color distinctions.
  • The dual-channel adjustable output has constant voltage and constant current function.
  • With over current protection, the current limit can be adjusted by users.
  • The dual-channel adjustable output voltage can be connected in series or in parallel, and can follow voltage or current led by major channel.
  • Overload protection, short circuit protection and overheat protection.
  • Rring transformer.
