OS-3102 100MHz dual channel handheld-Oscilloscope Product ID: OS-3102

This 100MHz handheld oscilloscope multimeter is a great tool for industrial troubleshooting, Auto diagnostic and field service applications at affordable price. Make sure your measurements precisely tested by using this rugged, small and light weight tool.

100MHz digital oscilloscope scopemeter
multimeter handheld oscillsocopes
USB Flash Disk Storage
Replaceable li-ion battery



100MHz Oscilloscope handheld OS-3102


It can be operated by either battery powered or 8.5V/1500mA DC adapter(Standard Accessoriesl). It has optically sealed USB transfer, and can measure DC V up to 1000V, AC up to 750V, frequency up to 100MHz and etc.


TECPEL  OS-3102  Handheld Channel DSO with 100 MHz Bandwidth (500 MSa/s)  Digital Multimeter Oscilloscope

Add to Inquiry
Download
Category： Oscillosocpes, bench top, handheld, digital
Certificate：CE


Oscilloscope Specification
Model Name OS-1022 OS-2062 OS-3102
Bandwidth 20MHz 60MHz 100MHz
Sample Rate ( Real time ) 100MS/s 250MS/s 500MS/s
Horizontal Scale(S/div) 5ns/div¡«100s/div step by 1¡«2.5¡«5 5ns/div¡«100s/div step by 1¡«2¡«5
Rise time(at input, typical) ≤17.5ns ≤5.8ns ≤3.5ns
Display 3.7 inch color display with TFT panel(640×480 pixels, 65535 colors) Same as OS-1022
Channels Dual
Input impedance 1MΩ±2%£¬in parallel with 20pF±3pF
Record length Max. 6000 points on each channel
Interpolation (sin x)/x
Probe attenuation factor 1X£¬10X£¬100X£¬1000X
Input coupling DC, AC, GND
DC accuracy(Average) Average>16:±(5% reading+0.05div) for ¡÷V
Vertical Sensitivity 5mV/div¡«5V/div (at input)
Vertical resolution (A/D) 8 bit(2 channels simultaneously )
Max. Input Voltage 400V (PK-PK) (DC + AC PK-PK, 1MΩ input impedance, Probe attenuation 10:1)
Trigger Type Edge, Video, Alternate
Trigger Mode Auto, Normal, Single
Trigger level ±6 divisions from screen center
Acquisition modes Sample, Peak Detect and Average
DC gain accuracy ±3%
Automatic Measurement Vpp,Vavg,RMS,Frequency,Period,Vmax,Vmin,Vtop,Vbase,Width,Overshoot ,Preshoot,Risetime,Falltime, +Width,-Width,+Duty,-Duty, Delay A→B¡¢ Delay A→B
Waveform math £«, £­, ×, ÷, FFT
Waveform storage 4 waveforms
Lissajou’s figure Bandwidth 20MHz 60MHz 100MHz
Phase difference ±3 degrees
Communication interface USB Same as OS-1022
Power supply 100V-240V AC, 50/60Hz
Li-ion battery 7.4V, 6 hours operation









Key Features:

  •  Autoscale

  • 20 Automatic Measurements

  • 3 in 1(DSO+Multimeter+Cymometer)

  •  Bandwidth: 100 MHz

  •  Support USB for data transmission to PC

  •  Replaceable li-ion battery back up (6 hours)

  •  USB Flash Disk Storage

  • FFT







Oscilloscope Specification
Model Name OS-1022 OS-2062 OS-3102
Bandwidth 20MHz 60MHz 100MHz
Sample Rate ( Real time ) 100MS/s 250MS/s 500MS/s
Horizontal Scale(S/div) 5ns/div¡«100s/div step by 1¡«2.5¡«5 5ns/div¡«100s/div step by 1¡«2¡«5
Rise time(at input, typical) ≤17.5ns ≤5.8ns ≤3.5ns
Display 3.7 inch color display with TFT panel(640×480 pixels, 65535 colors) Same as OS-1022
Channels Dual
Input impedance 1MΩ±2%£¬in parallel with 20pF±3pF
Record length Max. 6000 points on each channel
Interpolation (sin x)/x
Probe attenuation factor 1X£¬10X£¬100X£¬1000X
Input coupling DC, AC, GND
DC accuracy(Average) Average>16:±(5% reading+0.05div) for ¡÷V
Vertical Sensitivity 5mV/div¡«5V/div (at input)
Vertical resolution (A/D) 8 bit(2 channels simultaneously )
Max. Input Voltage 400V (PK-PK) (DC + AC PK-PK, 1MΩ input impedance, Probe attenuation 10:1)
Trigger Type Edge, Video, Alternate
Trigger Mode Auto, Normal, Single
Trigger level ±6 divisions from screen center
Acquisition modes Sample, Peak Detect and Average
DC gain accuracy ±3%
Automatic Measurement Vpp,Vavg,RMS,Frequency,Period,Vmax,Vmin,Vtop,Vbase,Width,Overshoot ,Preshoot,Risetime,Falltime, +Width,-Width,+Duty,-Duty, Delay A→B¡¢ Delay A→B
Waveform math £«, £­, ×, ÷, FFT
Waveform storage 4 waveforms
Lissajou’s figure Bandwidth 20MHz 60MHz 100MHz
Phase difference ±3 degrees
Communication interface USB Same as OS-1022
Power supply 100V-240V AC, 50/60Hz
Li-ion battery 7.4V, 6 hours operation

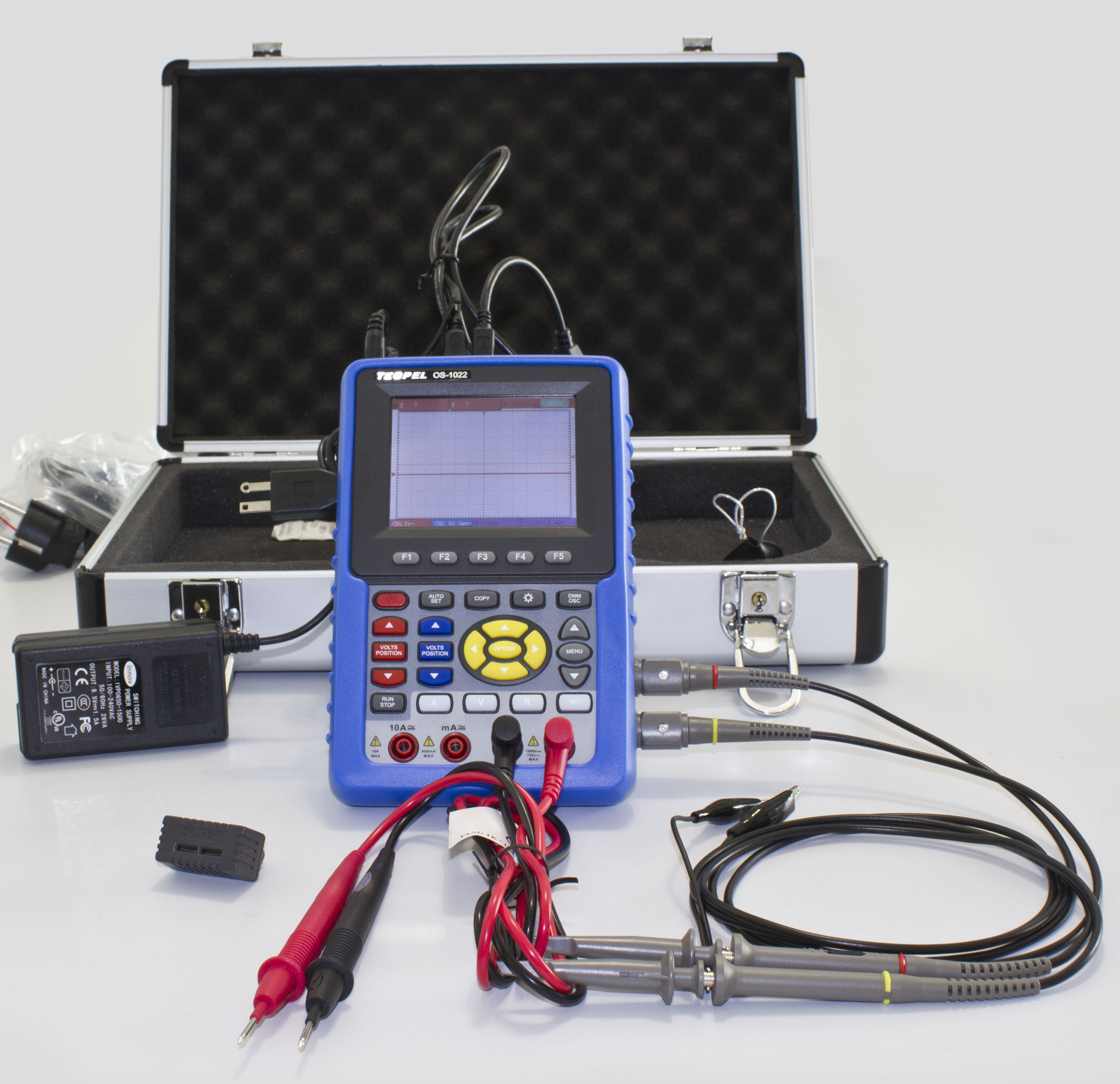

Package Includes:

  • 1 x OS-3102  Digital
  • 1 x Power Cord
  • 1 x Switching Power Supply
  • 2 x Probes
  • 2 x Multimeter Leads
  • 1 x USB
  • 1 x Output
  • 1 x Capacitance Module
  • 1 x Metal Case
  • 1 x CD
