PHS-864 Non contact Phase Sequence Tester Product ID: PHS-864

Non-contact Phase Sequence Detector

It has the dual functions of detecting lack of phase and phase sequence.

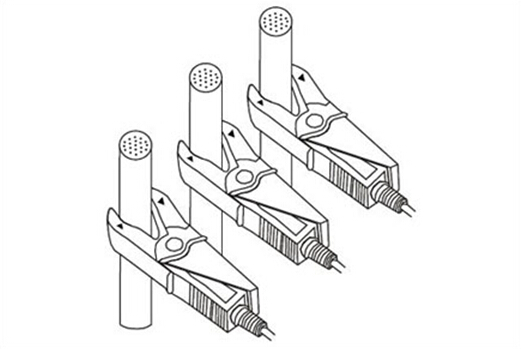

Clamp the alligator clip to the outside of the power cord to detect
Comes with four powerful magnets

1. Phase sequence detection (positive phase, anti-phase, default phase), live line inspection, simple electrical inspection, fire line identification, default phase judgment, broken line location search, DC line break point detection, line maintenance.

2. Phase Sequence State: dynamic acoustic-optic indication

3. Line voltage: 70~1000V

4. Clamp wire diameter: Φ1.6mm - Φ16mm

Non-contact Phase Sequence Detector with non-contact phase sequence detection, live line inspection, simple electrical inspection, fire line identification, default phase judgment, broken line location search and other functions, can clamp the wire with outer diameter Φ1.6mm?Φ16mm, When using, the insulation clamp can be directly clamped on the insulation skin of the live wire to test, no need to stripping off the wire or touching the exposed live wire of high voltage. The measurement result is dynamic display of LED, which is very clearness and directness, improves the safety and convenience of the test, and practically protects the personal safety of the operators.

The bottom plate of the instrument is equipped with magnets, the instrument can be attached to the metal shell of the equipment in the test, which makes the operation more convenient. The three clamps adopt 3 colors of the out shell, which is more in line with the distinction of three-phase line and the national standard (GB681).

Power Supply AA batteries (LR6) ×2 PCS
CT Jaw Size Can clamp and test wire diameter Dia 1.6m - Dia 16mm
LCD Size None
Detect Voltage Range AC70?1000V
Auto Shut Down After 5 minutes, the meter auto shut down without any operation
Working Temperature -10~50 C; below 80%rh
Store Temperature -20 -60 ; below 90%rh
LED Display ?Positive phase sequence?The four phase detector lamp lights up clockwise
?Negative phase sequence?The four phase detector lamp lights up counterclockwise
?live-voltage indication L1, L2, L3 lamps light up in setting voltage range
?Default phase? L1 or L2, or L3 lamp is not lighting
Open circuit? L1 or L2, or L3 lamp is not lighting
Beep Indication Positive phase sequence?the meter make short beep sound intermittently
Negative phase sequence?the meter make long beep sound continuous
Battery Check The POWER indication lamp light up after boot up; the LOW BATTERY lamp light up when low battery

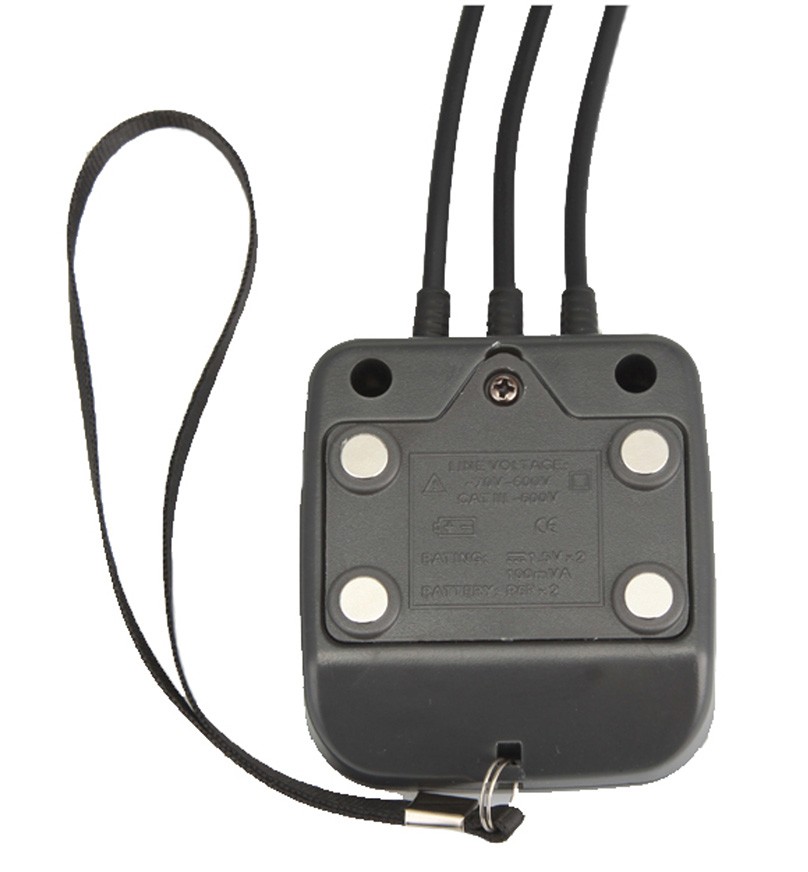

Magnet 4pcs magnets are installed on the bottom plate of the instrument, which can be attached to the distribution box and load weight 800g
Clamp Lead Length 0.6m
Maximum Measurement Voltage AC1000V
Insulation Strength 5.4kVrms
Maximum Rated Power 300mVA
Suitable Safety Standard EN61010-1: 2001, EN61010-031: 2002, Pollution level 2, CAT ?(600V)
Meter Weight 200g (with battery)
Meter Dimension 70mm×75mm×30mm

Category: Electrical Testers
Certificate:CE
